Translucent Green Anti Static Coated PET Film with 20μm Thickness for Electronics and Medical Packaging
Price:
Negotiable
MOQ:
30000 s.q.m.
Delivery Time:
within 45 days, depends on the reserve of raw materials
Brand:
HSF
Product Description

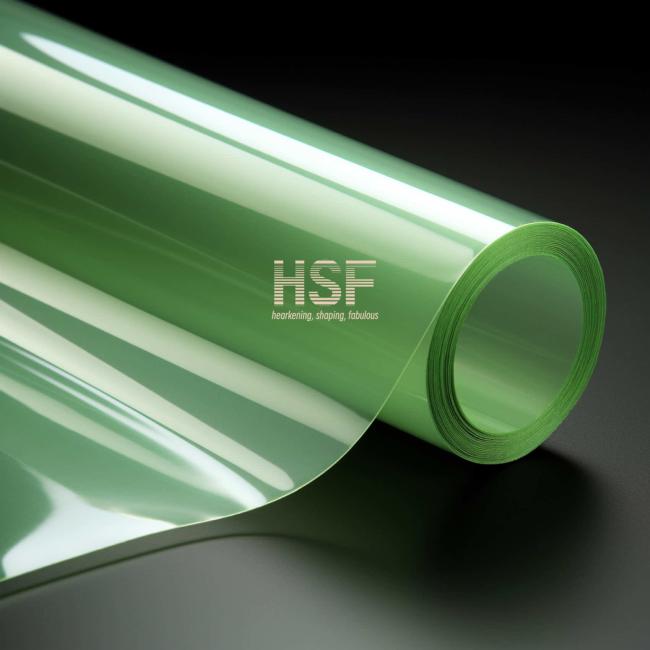

Translucent Green Anti Static Protective PET Film 20μm
20 μm green PET anti static film, available in multiple colors, designed for electronics, medical, automotive, printing, and various industrial applications.
Technical Specifications
| S/N | Item | Value | Test Method |
|---|---|---|---|
| 1 | Backing Film Type | Blue Green | DIN EN ISO 10677 |
| 2 | Release Force (gf/25mm) | 8 | DIN EN 1464 |
| 3 | Sub-sequent Adhesion Rate (%) | 89 | DIN EN 1943 |
| 4 | Total Thickness (μm) | 20 | DIN EN ISO 4593 |
| 5 | Sheet Resistance | 10^6-10^11 Ω/sq | DIN EN 1149-1 |
| 6 | Tensile Strength | MD: 193 MPa TD: 210 MPa |
DIN EN ISO 527-3 |
| 7 | Elongation @ break (%) | MD: 109% TD: 97% |
DIN EN ISO 527-3 |
Industry Applications
PET anti-static coated film provides excellent static discharge properties for various industrial applications:
Electronics
Protects sensitive electronic components and circuits from static discharge damage during production and handling.
Medical
Prevents static buildup in medical packaging to maintain sterility by reducing dust and contaminant attraction.
Automotive
Provides static discharge protection for automotive parts and components during manufacturing processes.
Printing
Prevents static electricity buildup during printing operations, ensuring proper ink adhesion and print quality.
Tape Industry
Serves as release liner for adhesive tapes, preventing static buildup within tape rolls.
Key Features
- Conductive coating on one or both sides for effective static dissipation
- Prevents static electricity buildup
- Improves handling and processing of sensitive components
- Available in multiple colors for identification and quality control
- Standard colors include transparent, translucent, pink, blue, and yellow
Specialized Applications
- Jewelry and Gemstone Industry: Protects delicate gemstones from static charges that attract dust or cause surface damage
- Stationery and Paper Goods: Provides protective covering for documents and artwork while minimizing static-related issues
- Textile and Apparel Manufacturing: Prevents static charges that attract lint and fibers during fabric production
- Cosmetics and Personal Care: Protects cosmetic containers from static interference with product dispensing
- Food Packaging: Safeguards static-sensitive food items like powders and delicate snacks
Please verify the suitability of 20-micron green PET anti-static film for specific applications based on industry requirements, manufacturer guidelines, and available customization options.
