50μm Translucent Light Blue PET Non Silicone Coated Polyethylene Release Film for Electronics and Medical Applications
Price:
Negotiable
MOQ:
30000 s.q.m.
Delivery Time:
within 45 days, depends on the reserve of raw materials
Brand:
HSF
Product Description
50μm Translucent PET Non Silicone Coated Polyethylene Release Film
50 μm light blue PET non silicone coated release film for electronics, medical, automotive and printing applications.
Product Overview
Clear PET non-silicone coated release film is a specialized film used in various applications where a release liner is required. This film is manufactured from clear polyester (PET) and coated with a non-silicon release agent on one side, providing excellent performance characteristics.
Primary Applications
- Labels: Used as backing material for labels, stickers, and decals. The non-silicone release coating enables easy separation and application to desired surfaces.
- Medical Devices: Serves as a liner for medical devices including wound dressings and transdermal patches. The non-silicone coating prevents contamination, maintaining sterility.
- Packaging: Functions as a release liner for packaging materials requiring easy opening, such as pouches and bags. Provides visibility while offering moisture and contaminant barriers.
- Electronics: Used as a release liner for electronic components including adhesive tapes and protective films. Prevents damage or interference during the release process.
Industry-Specific Applications
- Automotive Interior Trim: Protective layer during manufacturing, assembly, and transportation of interior trim components with distinctive light blue color for visual appeal.
- Foam and Gasket Production: Release liner for foam materials and gaskets, facilitating easy removal and separation during fabrication processes.
- Textile and Embroidery: Backing or stabilizer for embroidered designs and patches, providing contrast against lighter fabrics for improved visibility.
- Die-cutting and Stamping: Protective layer between materials and cutting/stamping tools, ensuring accurate positioning and easy removal.
- Industrial Label and Signage: Protective layer for printed labels and signs, enabling easy removal and application with enhanced visibility.
Technical Specifications
| S/N | Test Item | Unit | Standard | Value | Test Method |
|---|---|---|---|---|---|
| 1 | Thickness | μm | 50 ±2% | 49.72 | GB/T6672 |
| 2 | Color | - | Light blue | - | - |
| 3 | Tensile Strength MD | Mpa | ≥180 | 187 | GB/T 1040.3 |
| 3 | Tensile Strength TD | Mpa | ≥190 | 196 | |
| 4 | Elasticity Modulus MD | Mpa | / | 4144 | GB/T 9341-2022 |
| 4 | Elasticity Modulus TD | Mpa | / | 4230 | |
| 5 | Elongation @ break MD | % | ≤200 | 148 | GB/T 1040.3-2022 |
| 5 | Elongation @ break TD | % | ≤200 | 139 | |
| 6 | Thermal Shrinkage MD | % | ≤1.5 | 0.96 | 150℃/30min |
| 6 | Thermal Shrinkage TD | % | ≤0.0 | 0.00 | |
| 7 | Friction Coefficient F/M-US | % | ≤0.65 | 0.5 | GB/T 10006 |
| 7 | Friction Coefficient F/M-UK | % | ≤0.50 | 0.3 | |
| 8 | Haze | % | ≤5 | 2.99 | GB/T2410 |
| 9 | Luminousness | % | ≥86 | 89.4 | GB/T2410 |
| 10 | Glossiness | % | ≥100 | 133 | GB/T8807 |
| 11 | Wetting Tension | mN/m | ≥50 | 58 | GB/T14216 |
| 12 | Release Force Inner | gf/25mm | 3-5 | 4 | GB/T 25256-2010 |
| 12 | Release Force Outer | gf/25mm | 10-15 | 12 | |
| 13 | Sub-sequent Adhesion Rate Inner | % | ≥85 | 90 | GB/T 25256-2010 |
| 13 | Sub-sequent Adhesion Rate Outer | % | ≥85 | 92 |

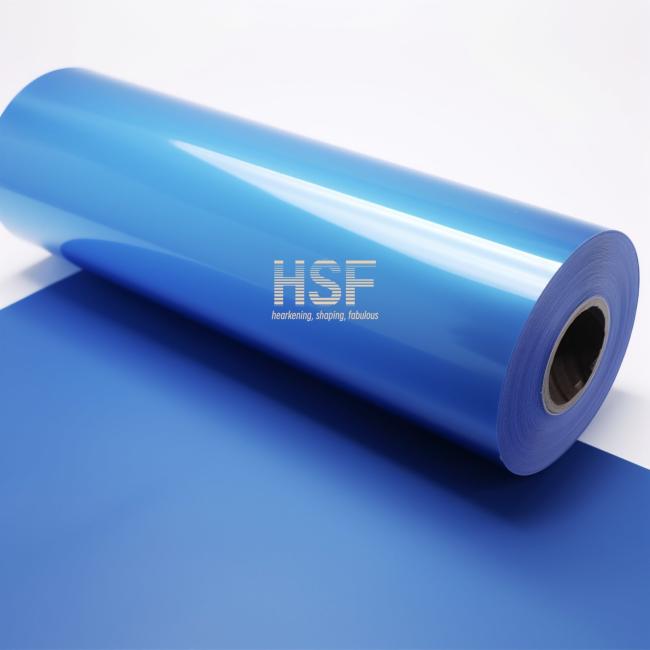

Product Images
Please note that the specific suitability of the 50 μm light blue PET non-silicone coated release film for a particular application should be verified based on industry requirements, manufacturer guidelines, and customization options available.
