36μm Green Translucent PET Non Silicone Release Film for Electronics and Automotive Applications
Price:
Negotiable
MOQ:
30000 s.q.m.
Delivery Time:
within 45 days, depends on the reserve of raw materials
Brand:
HSF
Product Description

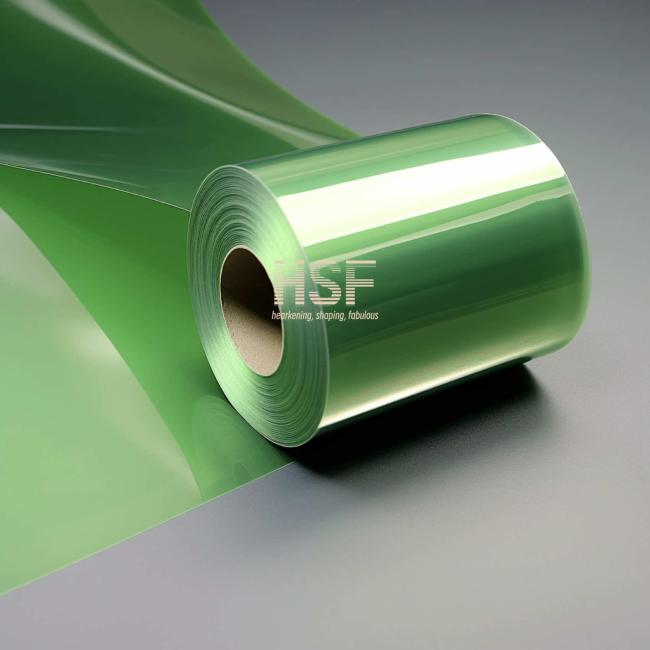

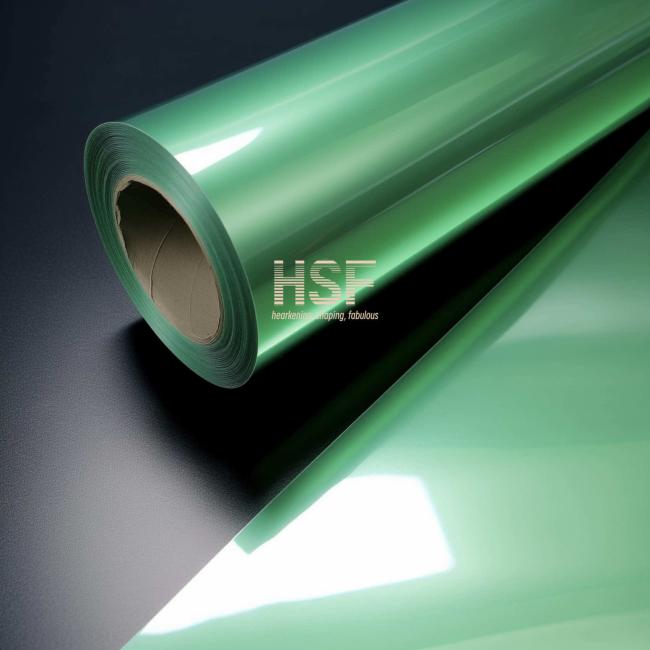

36μm Green Clear PET Non Silicone Release Film
36 μm green PET non silicone coated release film designed for electronics, medical, automotive, and printing applications.
Clear PET non-silicone coated release film is a specialized film used in various applications requiring a release liner. This film is manufactured from clear polyester (PET) and coated with a non-silicon release agent on one side.
Key Applications
Labels
Used as backing material for labels, stickers, and decals. The non-silicone release coating enables easy separation from the backing for smooth application to desired surfaces.
Medical Devices
Serves as a liner for medical devices including wound dressings and transdermal patches. The non-silicone coating prevents contamination, maintaining sterility requirements.
Packaging
Functions as a release liner for packaging materials requiring easy opening, such as pouches and bags. The clear PET film provides visibility while offering protection against moisture and contaminants.
Electronics
Used as a release liner for electronic components including adhesive tapes and protective films. The non-silicone coating prevents damage or interference during the release process.
Industry-Specific Applications
- Automotive Industry: Protective release liner for manufacturing, assembly, and transportation of automotive components with green color for easy identification
- Signage and Displays: Protective layer for printed signs and graphics with green color for branding and visibility enhancement
- Labeling and Packaging: Release liner for labels, stickers, and adhesive-backed products with color-coded identification
- Industrial Manufacturing: Release liner or protective layer for components and equipment in production environments
- Arts and Crafts: Backing or carrier for artistic elements with vibrant green color for aesthetic appeal
Technical Advantages
- Silicon-free formulation eliminates silicon transfer contamination issues
- Compatible with silicone and gel applications
- Cost-effective alternative to fluorine-coated film
Technical Specifications
| S/N | Test Item | Unit | Standard | Value | Test Method |
|---|---|---|---|---|---|
| 1 | Thickness | μm | 36 ±3% | 38.01 | ASTM D-374 |
| 2 | Color | ΔE | Green ≤ 3 | OK | ASTM E308 |
| 3 | Tensile Strength | MD Mpa | ≥180 | 207 | ASTM D-882 |
| TD Mpa | ≥180 | 252 | |||
| 4 | Elasticity Modulus | MD Mpa | ≥3500 | 4333 | ASTM D-882 |
| TD Mpa | ≥3500 | 4727 | |||
| 5 | Elongation @ break (%) | MD % | ≤100 | 173 | ASTM D-882 |
| TD % | ≤100 | 129 | |||
| 6 | Thermal Shrinkage | MD % | ≤3.5 | 2.18 | ASTM D-1204 |
| TD % | ≤0.5 | 0.06 | |||
| 7 | Friction Coefficient | F/M-US % | ≤0.55 | 0.48 | ASTM D-1894 |
| F/M-UK % | ≤0.50 | 0.37 | |||
| 8 | Haze | % | ≤4.0 | 3 | ASTM D-1003 |
| 9 | Luminousness | % | ≥88 | 91 | ASTM D-1003 |
| 10 | Glossiness 45° | % | ≥120 | 127 | ASTM D-2457 |
| 11 | Wetting Tension | mN/m | ≥54 | 60 | ASTM D-2578 |
| 12 | Release Force | Inner gf/25mm | 3-5 | 4 | ASTM D3330 |
| Outer gf/25mm | 10-15 | 12 | |||
| 13 | Sub-sequent Adhesion Rate | Inner % | ≥85 | 90 | ASTM D3330 |
| Outer % | ≥85 | 92 |
