BOPP Silicone Coated Film with Customizable Release Force Ratio, 50μm Thickness, and High Tensile Strength for Packaging and Labeling
MOQ:
30,000 square meters
Delivery Time:
within 10 days
Brand:
HSF
Product Description

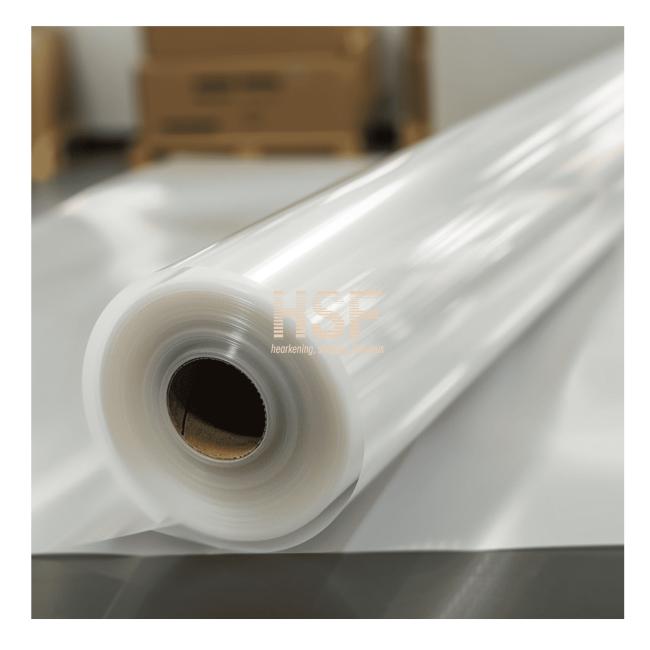

BOPP 50μm Silicone Coated Film
Customizable ratio of release force on each side for silent tape and sealing tape applications.
Product Overview
Biaxially oriented polypropylene matte film with silicone coating on one or both sides offers excellent smoothness, anti-adhesive properties, and abrasion resistance for diverse industrial applications.
Applications
- Packaging Industry: Enhances opening performance for food, pharmaceutical, and cosmetic packaging
- Printing Industry: Improves glossiness and smoothness of printed materials for better readability
- Electronics Industry: Provides anti-skid and anti-scratch protection for mobile phones, computers, and electronic devices
- Label Industry: Enhances peeling performance for easier application and removal of labels
- Industrial Field: Increases abrasion resistance and slip resistance for conveyor belts and waterproof rolls
- Tape Industry: Widely used in sealing tape and silent tape manufacturing
Technical Specifications
Product Identification
| Commercial Name | BOPP Matte Double Side Release Film |
|---|---|
| Model Number | PBIH50-0815 |
Quality Test Results
| Test Item | Standard Request | Typical Data | Results |
|---|---|---|---|
| Appearance | Wrinkle, particle, damage, impurity, contamination - Not allowed | No | Ok |
| Stripe, burst vein, scratch, pucker | Slight allowable | Slight | Ok |
| Number white point & crystal points Φ0.2-0.5/㎡ | 0-80 | 40 | Ok |
| Number white point & crystal points Φ0.6-1.0/㎡ | 0-20 | 10 | Ok |
| Number white point & crystal points > Φ1.0/㎡ | Not allowed | 0 | Ok |
| Thickness Average | ±5.0% | 49.5 | Ok |
| Thickness Ultimate Deviation | ±6.0% | 3 | Ok |
| Thickness Average Deviation | ±3.0% | 0.2 | Ok |
| Tensile Strength MD (MPa) | ≥ 100 | 133 | Ok |
| Tensile Strength TD (MPa) | ≥ 160 | 265 | Ok |
| Elongation @ Break MD (%) | ≤ 180 | 182 | Ok |
| Elongation @ Break TD (%) | ≤ 65 | 57 | Ok |
| Shrinkage MD (%) | ≤ 4.0 | 3.0 | Ok |
| Shrinkage TD (%) | ≤ 2.0 | 0.5 | Ok |
| Friction Coefficient Inside | 0.25-0.50 | 0.22/0.20 | Ok |
| Friction Coefficient Outside | 0.25-0.50 | 0.21/0.19 | Ok |
| Glossiness | ≤ 15 | 4.8 | Ok |
| Haze | ≥ 76 | 93.4 | Ok |
| Release Force Side A (gf/25mm) | 5-8 | 6 | Ok |
| Release Force Side B (gf/25mm) | 10-15 | 13.5 | Ok |
| Subsequent Adhesion Rate Side A (%) | ≥85 | 89 | Ok |
| Subsequent Adhesion Rate Side B (%) | ≥85 | 92 | Ok |
Inspection Conclusion: Fulfill the technical standard
