Manual Handwheel Actuator For Pneumatic Actuator Valve Gear Box Butterfly Valve
Price:
200USD per set
MOQ:
1 set
Delivery Time:
3-5 work days
Brand:
YT
Product Description

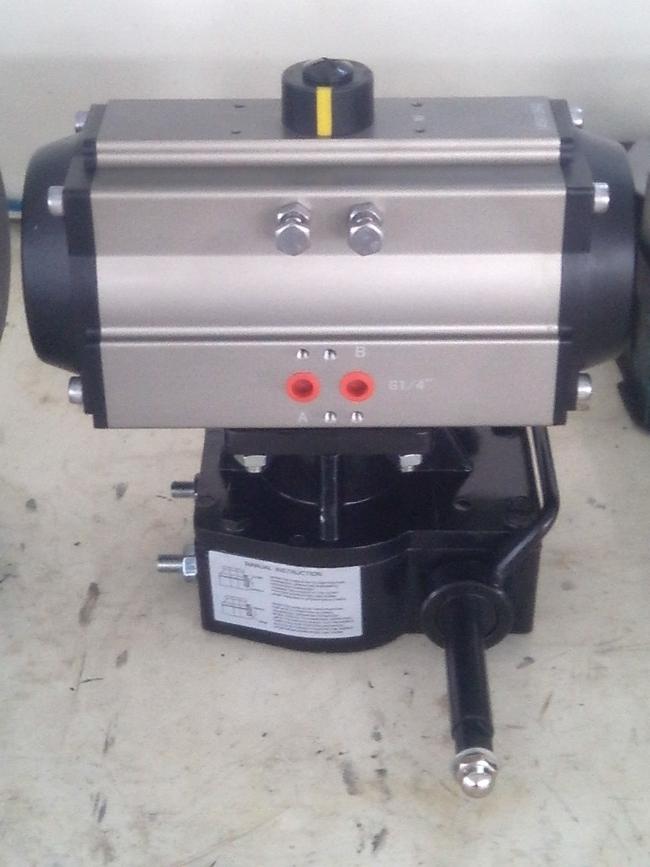

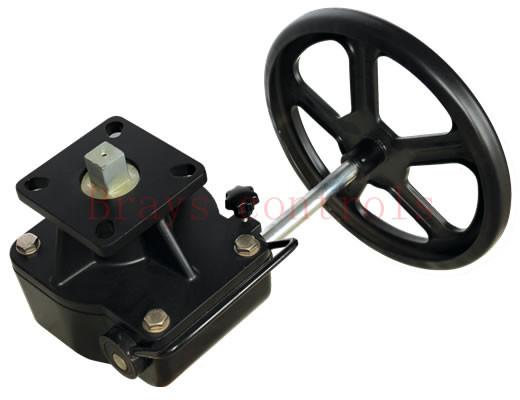

manual handwheel for pneumatic actuator valve gear box
The valve handwheel is widely used for pneumatic butterfly valve which is rotated 90º,Ball valve and plug valve, in the system installation, commissioning and when the systemloss of gas and power, it will converted into a manual operation device.The JHM series manual clutch worm gear box also has a security control function of the total gas source and the valve control can be operated much safer.This is the indispensable part of the pneumatic valve conrtol system ,it's designed and manufactured according to the ISO5211 standard,with a reasonable structure and reliable performance.
Features:
1) It is small and light, with reasonable design and creative model;
2) The series of pneumatic output torque devices are coordinated with various valves;
3) There are two key grooves 90 away at the inner connecting hole of the worm wheel, which can facilitate the user to select the relative position of the device on the valve body;
4) Raise the spacer pin and rotate the eccentric device for 180 , the spacer pin will automatically stop the device to achieve pneumatic transmission; otherwise, it will achieve manual transmission;
5) When delivered out of the factory, it filled with special lubricating grease. After coupled with the valve, it integral sealed, dust-proof and water-proof, with the protection rating of IP65.
Manual override input torque,output torque:
| No | Model | Speed(S) | Input torque(NM) | Output torque(NM) | Weight(KG) |
| 1 | XLHJ26 | 26:1 | 70 | 300 | 5 |
| 2 | XLHJ38 | 38:1 | 60 | 550 | 7 |
| 3 | XLHJ54 | 54:1 | 120 | 1200 | 9 |
| 4 | XLHJ80 | 80:1 | 140 | 2000 | 35 |
| 5 | XLHJ78 | 78:1 | 200 | 3600 | 48.2 |
| 6 | XLHJ98 | 98:1 | 300 | 9000 | 156 |
| 7 | XLHJ100 | 100:1 | 400 | 13000 | 190 |
| 8 | XLHJ118 | 118:1 | 900 | 22100 | 540 |
Pneumatic actuators with manual override matching table:
| Pneumatic actuator | Manual override | Hole dia | Key | Upper connection hole |
Lower connection hole |
High | Handwheel dia | |||
| DA/SR | XLHJ | d | b | D3/D4 | Ø1/Ø2 | D1/D2 | M1/M2 | H | Ø | |
|
DA45SR45 DA52SR52 |
26:1 | Ø22 | 6 | Ø70 | 4-Ø9 | Ø70 | M8 | 99 | Ø180 | |
|
DA63SR63 DA75SR75 |
26:1 | Ø22 | 6 | Ø70 | 4-Ø9 | Ø70 | M8 | 99 | Ø180 | |
|
DA83SR83 DA92SR92 |
38:1 | Ø26 | 8 | Ø70 | 4-Ø9 | Ø70 | M8 | 117 | Ø200 | |
|
DA105SR105 DA125SR125 |
38:1 | Ø38 | 10 | Ø102 | 4-Ø12 | Ø102 | M10 | 117 | Ø200 | |
|
DA140SR140 DA160SR160 |
54:1 | Ø38 | 10 | Ø125 | 4-Ø14 | Ø125 | M12 | 118 | Ø280 | |
| DA190DA210 | 54:1 | Ø48 | 14 | Ø140 | 4-Ø18 | Ø140 | M16 | 118 | Ø280 | |
| SR190SR210 | 80:1 | Ø48 | 14 | Ø140 | 4-Ø18 | Ø140 | M16 | 148 | Ø400 | |
| DA240DA270 | 80:1 | Ø60 | 18 | Ø165 | 4-Ø22 | Ø165 | M20 | 148 | Ø400 | |
|
SR240SR270 DA300 |
78:1 | Ø60 | 18 | Ø165 | 4-Ø22 | Ø165 | M20 | 150 | Ø500 | |
| SR300DA350 | 78:1 | Ø80 | 22 | Ø165 | 4-Ø22 | Ø165 | M20 | 150 | Ø500 | |
|
DA350SR350 DA400 |
98:1 | Ø80 | 22 | Ø165 | 4-Ø22 | Ø165 | M20 | 195 | Ø800 | |
| SR400 | 100:1 | Ø100 | 28 | Ø254 | 8-18 | Ø254 | M16 | 195 | Ø800 | |
| DA500SR500 | 118:1 | Ø120 | 32 | Ø356 | 8-Ø32 | Ø356 | M30 | 250 | Ø1000 | |
