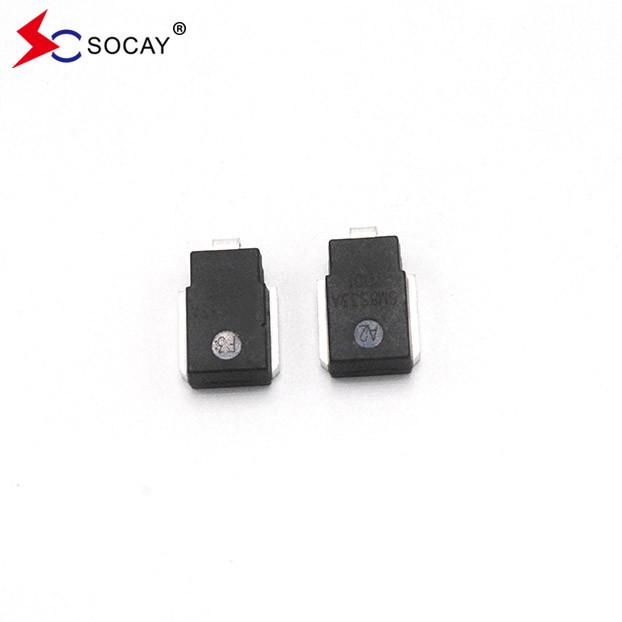

Surface Mount Circuit Protection Components TVS Diodes SM8S30AG AEC-Q101 Qualified
SOCAY TVS Diodes SM8S30AG Meet AEC-Q101 Qualified, Surface Mount TVS
DATASHEET: SM8SXXG Series_v2309.1.pdf
Description:
The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Part Number | Working Peak Reverse Voltage VRWM (V) | Breakdown Voltage VBR (V) | Test Current IT (mA) | Maximum Reverse Leakage IR @ VRWM (µA) | Maximum IR @ VRWM TJ=175℃ (µA) | Maximum Reverse Surge Current IPP (A) ① | Maximum Clamping Voltage VC @ IPP (V) | ||
| Uni | Bi | Min. | Max. | ||||||
| SM8S30AG | SM8S30CAG | 30.0 | 33.3 | 36.8 | 5.0 | 10 | 150 | 136 | 48.4 |
| SM8S33AG | SM8S33CAG | 33.0 | 36.7 | 40.6 | 5.0 | 10 | 150 | 124 | 53.3 |
| SM8S36AG | SM8S36CAG | 36.0 | 40.0 | 44.2 | 5.0 | 10 | 150 | 114 | 58.1 |
| SM8S40AG | SM8S40CAG | 40.0 | 44.4 | 49.1 | 5.0 | 10 | 150 | 102 | 64.5 |
| SM8S43AG | SM8S43CAG | 43.0 | 47.8 | 52.8 | 5.0 | 10 | 150 | 95.1 | 69.4 |
| SM8S45AG | SM8S45CAG | 45.0 | 50.0 | 55.3 | 5.0 | 10 | 150 | 90.8 | 72.7 |
| SM8S48AG | SM8S48CAG | 48.0 | 53.3 | 58.9 | 5.0 | 10 | 150 | 85.3 | 77.4 |
| SM8S51AG | SM8S51CAG | 51.0 | 56.7 | 62.7 | 5.0 | 10 | 150 | 80.1 | 82.4 |
| SM8S54AG | SM8S54CAG | 54.0 | 60.0 | 66.3 | 5.0 | 10 | 150 | 75.8 | 87.1 |
| SM8S58AG | SM8S58CAG | 58.0 | 64.4 | 71.2 | 5.0 | 10 | 150 | 70.5 | 93.6 |
| SM8S60AG | SM8S60CAG | 60.0 | 66.7 | 73.7 | 5.0 | 10 | 150 | 68.2 | 96.8 |
| SM8S64AG | SM8S64CAG | 64.0 | 71.1 | 78.6 | 5.0 | 10 | 150 | 64.1 | 103.0 |
| SM8S70AG | SM8S70CAG | 70.0 | 77.8 | 86.0 | 5.0 | 10 | 150 | 58.4 | 113.0 |
| SM8S75AG | SM8S75CAG | 75.0 | 83.3 | 92.1 | 5.0 | 10 | 150 | 54.5 | 121.0 |
| SM8S78AG | SM8S78CAG | 78.0 | 86.7 | 95.8 | 5.0 | 10 | 150 | 52.4 | 126.0 |
| SM8S85AG | SM8S85CAG | 85.0 | 94.4 | 104.0 | 5.0 | 10 | 150 | 48.2 | 137.0 |
Notes: | |||||||||
Features:
Optimized glass passivated chip.
TJ=175℃ capability suitable for high reliability and automotive requirement.
6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.
Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).
Meet AEC-Q101 qualified.
Low leakage current.
Low forward voltage drop.
Excellent clamping capability.
Very fast response time.
RoHS compliant.
Application:
Automotive Protection.
