Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC
15KA Blue Powder Surge Suppressor Bi-directional TVS Diode KD-076 20μA IR 145VC
DATASHEET: KD_v211.1.pdf
TVS Diode KD-076 Description:
The KD Series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC). Any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.
| Part Number |
Reverse Stand-Off Voltage |
Breakdown Voltage |
Test Current |
Current Rating |
Maximum Clamping Voltage |
Reverse Leakage |
|
| VAC(V) | VDC(V) |
VBR(V) MIN.@IT |
IT (mA) |
IPP 8/20μs (KA) |
VC(V) @IPP |
IR (μA) @VDC |
|
| KD-012 | 8.5 | 12.8 | 14 | 10 | 15 | 28 | 20 |
| KD-015 | 11 | 15 | 17 | 10 | 15 | 30 | 20 |
| KD-020 | 14 | 20 | 22 | 10 | 15 | 40 | 20 |
| KD-025 | 17 | 25 | 28 | 10 | 15 | 50 | 20 |
| KD-030 | 21 | 30 | 33 | 10 | 15 | 60 | 20 |
| KD-042 | 30 | 42 | 47 | 10 | 15 | 77 | 20 |
| KD-058 | 40 | 58 | 64 | 10 | 15 | 110 | 20 |
| KD-066 | 45 | 66 | 70 | 10 | 15 | 125 | 20 |
| KD-076 | 54 | 76 | 85 | 10 | 15 | 145 | 20 |
TVS Diode KD-076 Features:
|
| TVS Diode KD-076 Parameter | Symbol | Value | Unit |
| TVS Diode Operating junction | TJ | -55 to +150 | °C |
| Storage Temperature Range | TSTG | -55 to +150 | °C |
| TVS Diode Current Rating1 | IPP | 15 | KA |
|
Notes: |

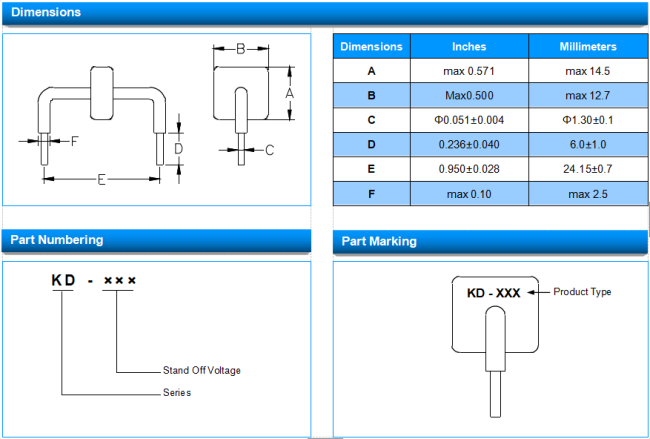

|||
| TVS Diode KD-076 Weight | Contact manufacturer |
| TVS Diode KD-076 Case | Epoxy encapsulated |
| TVS Diode KD-076 Terminal | Silver plated leads, solderable per MIL-STD-750, Method 2026 |
