SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting
SC-20KV-277 Surge Protective Devices, Max. Continuous Voltage 277Vac, SPD Used in Street Lighting, Landscape Lighting
DATASHEET: SC-20KV-277_v2209.1.pdf
| Symbol | Parameter | Value | Unit |
| Electrical Parameters | Rated Operating Voltage | 220 | VAC |
| Max. Continuous Voltage | 277 | VAC | |
| Response Time | 25 | ns | |
| Cross-section Area | 1.5 | mm2 | |
| Surge Parameters | Nominal Discharge Voltage (1.2/50μs) (Vn) | 20 | kV |
| Voltage Protection Level (Up) | L-N/PE | 1.3 | kV |
| N-PE | 1.1 | kV |
Description:

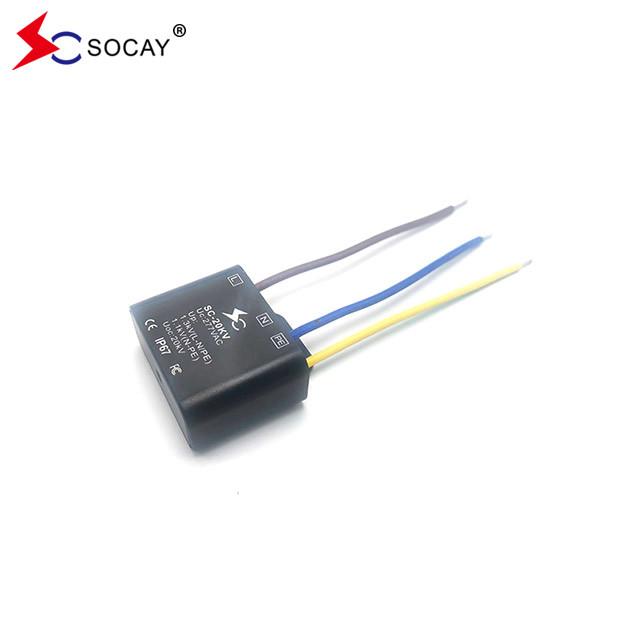

SC-20KV-277 is a kind of power supply surge protector suitable for 220V power grid. Used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.
Features:
|
u The product has full mold protection function. The product has a maximum protection can withstand the impact of 20kV surge voltage. u The size of the product is small, 41×32×19.5mm (excluding the connecting wire). u It is a Class III power SPD. u Parallel connection mode is adopted. u Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD. u Executive standard: IEC/EN:61643-11. u Operating Temperature Range: -40℃ to +85℃. |
Applications:
|
| Part Number | Quantity |
| SC-20KV-277 | 270 PCS / Box |
