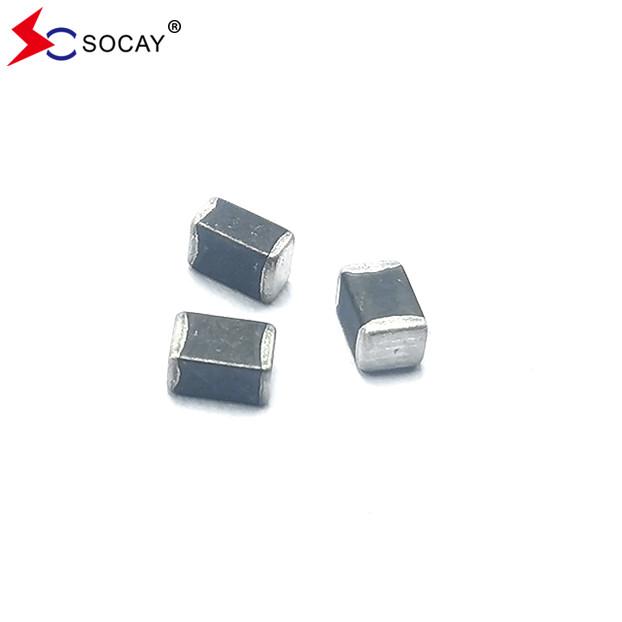

Original Factory SOCAY Multilayer Chip Varistor SV1812H471G0A 1812 Series 385VDC


Multilayer Chip Varistor DATASHEET:  SV1812H471G0A_v209.1.pdf


Description:
The Multilayer Chip Varistor SV1812H471G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1812H471G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.


Classification:
SMD:0402,0603,0805,1206,1210,1812,2220

DIP:5D,7D,10D,14D,20D,25D,32D

Current:1A~15KA

The smaller the size, the lower the price,
The lower the throughput, the larger the size,
The higher the throughput, the more expensive,
The higher the voltage, the thicker the tube.

Response time≤10NS


Multilayer Chip Varistor Electrical Characteristics (25±5℃):

VRMS - Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VDC - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV - Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”.

VC - Maximum peak current across the varistor with 8/20μs waveform and 10A pulse current.

Imax - Maximum peak current which may be applied with 8/20μs waveform without device failure.

Multilayer Chip Varistor Construction & Dimensions:


General Technical Data:

Soldering Recommendations:

Quantity of Products in The Taping Package:

Application

Power protection, Switches, POS machines, Lightning arresters, Building intercoms, Monitoring systems, Parking cards, Transmission systems, Instrumentation,Meters, Communication products, Control panels.
