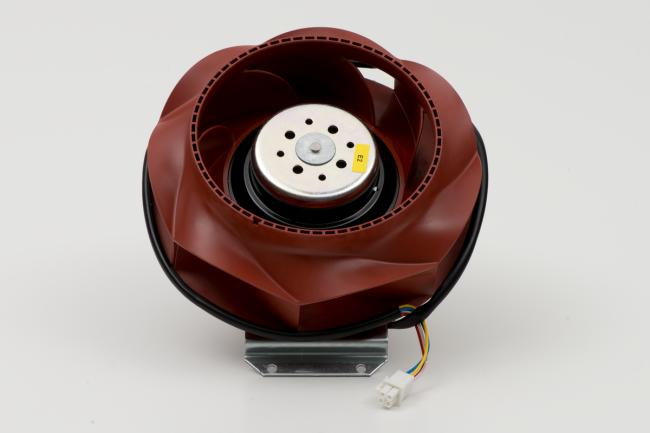

Dc Axial Fan 24v 190mm 171602 Radiator Kuka Robot Control Cabinet

The cooling system of the control cabinet is divided into two cooling circuits. In the outer zone, the ballast resistor and the heat sinks of the KPP and KSP are cooled directly by ambient air.

Air intake is via the external fan installed at the rear of the control cabinet.

KUKA external fan is an important part of Kuka robot control cabinet, its main role is to heat. Prolonged use may lead to the accumulation of a large amount of dust on the fan, which may reduce the speed of the fan, thus affecting the normal operation of the robot. Therefore, regular cleaning and maintenance is very important.

If the Kuka robot demonstrator indicates that the fan is damaged, it may need to be replaced. To replace an external fan, follow the following steps: remove the fan plug from the control panel, remove the backplane, screws, and cables, remove the fan support and fan, install and secure the new fan with the support, and connect the cables and plug again. During the replacement process, the robot control system must be kept off and the power cord disconnected to ensure the safety of operation.

The DC axial fan 24V 190mm (Model 171602) is engineered to meet the stringent cooling demands of KUKA robot control cabinets. Here’s a detailed breakdown of its key technical parameters:

• Voltage: 24V DC
  • Ensures compatibility with KUKA’s standard power supply systems, minimizing the need for additional voltage converters.
• Size: 190mm (Diameter)
  • A compact yet powerful design that fits seamlessly into KUKA control cabinets without occupying excessive space.
• Airflow: High-volume airflow (specific value varies by manufacturer, e.g., 200-300 CFM)
  • Efficiently dissipates heat generated by power electronics, drives, and processors within the control cabinet.
• Speed: Adjustable (typically 2000-3000 RPM)
  • Allows for dynamic cooling based on thermal load, reducing energy consumption during low-demand periods.
• Noise Level: Low-noise operation (≤50 dB(A))
  • Minimizes workplace disruption, making it suitable for noise-sensitive environments like cleanrooms or laboratories.
• Protection Rating: IP54 or higher
  • Resistant to dust and water splashes, ensuring reliable performance in harsh industrial settings.
• Bearing Type: Dual-ball bearings or sleeve bearings
  • Dual-ball bearings offer longer lifespan (50,000+ hours) and better vibration resistance, ideal for 24/7 operation.
• Connector Type: Standard Molex or terminal block
  • Simplifies installation and replacement, reducing downtime during maintenance.

Advantage:

Place of origin: China

Brand Name: KUKA

Model Number:Fan

Control system electrical components

FAQ:

*Q:Why are we?

 A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.

*Q:How about our service concept?

  A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.

*Q:What products can we offer?

 A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.

*Q:Why you purchase from us?

 A:You don’t worry about after-sales problem to cooperation with us.

About us

Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
