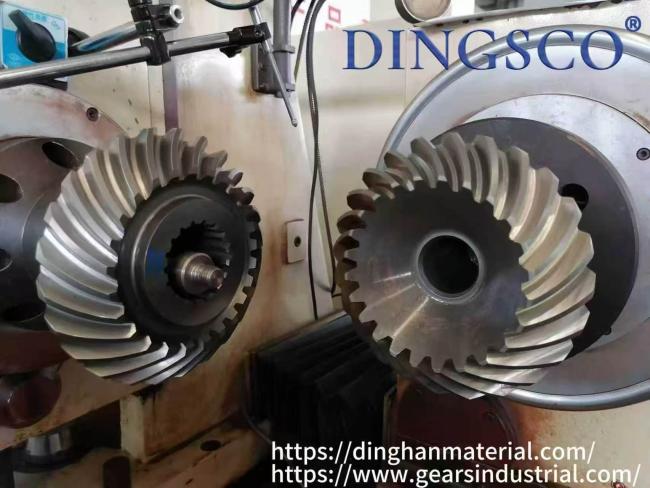

Heavy-Duty Integral Spiral Bevel Gear Shaft For Industrial Reducers & High-Torque Transmission Systems
Key Advantages Tailored for Reducer Applications
- Structural Integrity & Load Capacity
The integral forging design eliminates the weak points of assembled split structures, granting the shaft exceptional rigidity to resist extreme torque and impact loads common in reducer environments. This design effectively minimizes risks of fatigue failure or connection breakdown, ensuring reliable operation under harsh conditions.
- Smooth & Efficient Transmission
The spiral tooth profile enables gradual, continuous meshing, significantly reducing operational noise and vibration compared to straight bevel gears. This smooth power delivery is critical for preserving the longevity and reliability of connected industrial equipment, supporting stable production processes.
- Material Durability & Precision Engineering
Manufactured from high-grade alloy steel with advanced surface hardening (e.g., carburizing or nitriding), the gear shaft exhibits superior wear resistance and anti-fatigue properties, perfectly supporting the reducer’s long-term continuous operation requirements. With precision up to ISO Grade 7, it guarantees efficient power transmission and precise positioning, directly boosting the overall performance of the reducer.
Typical Application Scenarios
This integral spiral bevel gear shaft is widely deployed across key industrial sectors:
- Mining & Construction Machinery: Used in heavy-duty reducers for excavators, crushers, and conveyors to transfer high torque under rugged, continuous operating conditions.
- Marine & Offshore Equipment: Applied in marine propulsion reducers and offshore lifting systems, where corrosion resistance and shock load capacity are essential.
- Power Generation: Integrated into gearboxes for wind turbines and industrial generators, supporting reliable power transmission in high-load, long-duration operations.
- Metallurgical & Cement Production: Deployed in rolling mills and cement kiln drives, enduring extreme torque, vibration, and dust-laden environments.
- Heavy Industrial Machinery: Utilized in reducers for presses, extruders, and material handling systems, ensuring stable right-angle power transmission in high-intensity production lines.
| Heavy-Duty Integral Spiral Bevel Gear Shaft For Industrial Reducers & High-Torque Transmission Systems | |
| Specification | |
| Material | 20CrMnTi,42CrMo, 45# etc |
| Shape | Spiral |
| Pressure Angle | 20°, also can be customized |
| Accuracy Grade | ISO 4-6 Grade |
| Module (M) | ≤4 |
| Heat Treatment | Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc. |
| Processing | Forging, hobbing, shaping, shaving, grinding etc |
| Spiral Angle | 30° – 45° |
Why Partner With Us?
Founded in 1994, we bring 30+ years of specialized expertise to gear manufacturing, serving a global clientele with precision-engineered transmission solutions. Our core mission centers on the R&D, production, and technical innovation of high-performance spiral bevel gears and custom transmission components. Through decades of industrial insight and relentless process refinement, we consistently meet the stringent demands of diverse heavy-duty industrial scenarios. Every component we deliver reflects our deep mastery of gear engineering and unwavering commitment to reliability, operational stability, and extended service life. For us, gears are not just mechanical parts—they represent our promise of quality and professionalism to every client.
Uncompromising Quality at Every Stage
Quality is the cornerstone of our operations. We have implemented a full-lifecycle quality management system that governs every phase of production, from raw material selection to final delivery, ensuring all products meet ISO precision grades 4–6. Going beyond industry standards, we optimize our components for enhanced durability, load-bearing capacity, and operational stability. Rejecting one-size-fits-all solutions, we design custom products engineered to thrive under heavy workloads, continuous operation, and harsh environmental conditions, delivering consistent performance even in the most demanding applications.
A Technical Team That Drives Innovation
Our competitive edge is rooted in our exceptional technical team. Comprising doctorate-level specialists, members of the national gear standardization committee, and seasoned postgraduate researchers, our R&D and engineering group leverages its robust academic and practical expertise to keep us at the forefront of the industry. This depth of knowledge allows us to optimize production efficiency, solve complex transmission challenges, and actively contribute to shaping forward-looking industry standards.
End-to-End Precision & Quality Control

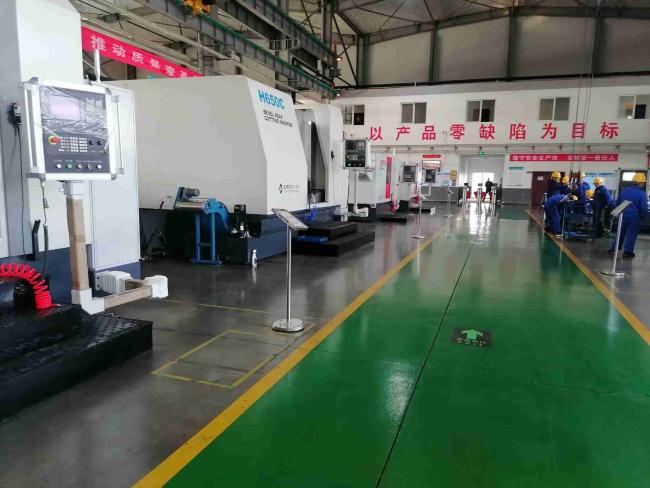

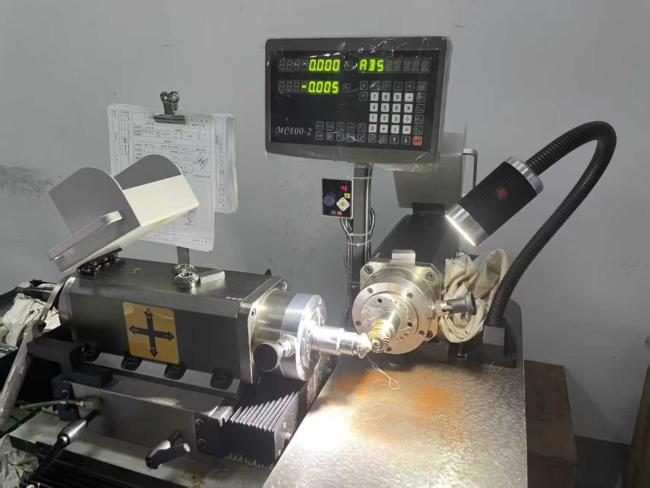

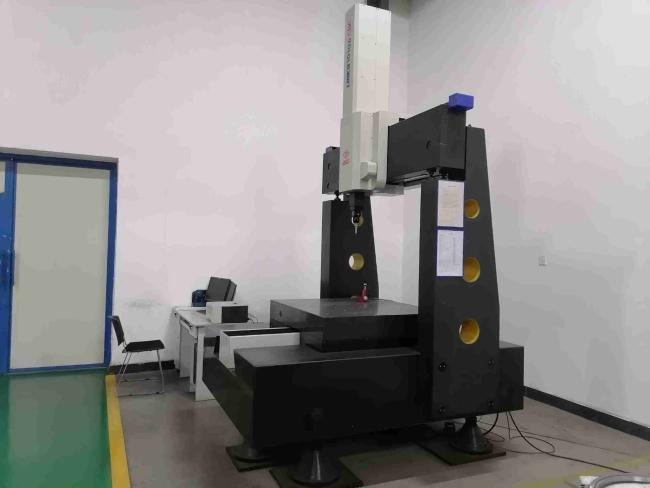

We enforce rigorous end-to-end quality control spanning product design, precision machining, and final inspection. Our manufacturing facility is equipped with state-of-the-art 7-axis 5-linkage CNC spiral bevel grinding and milling machines, paired with a full suite of advanced precision testing instruments. Every step of the production process is closely monitored and documented, ensuring consistent performance, high operational efficiency, and dependable quality that our clients can trust.
Your Trusted Partner for Custom Gear Solutions
Backed by decades of industry leadership and an unyielding spirit of innovation, we are ready to deliver safe, stable, and high-precision customized gear solutions tailored to your unique needs. We sincerely look forward to building long-term, mutually beneficial partnerships with you, and working together to create greater value for your business.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
