Cheap Price Big Volume Pneumatic Manual Cream Honey Liquid Filling Machine

A02D cream pneumaitc manual cream filling machine

Pneumatic A02 type manual filling machine is based on the manual filling machine A03 to improve, driven by compressed air, with the foot switch and automatic switch, the complete liberation of the user's hands, make the operation more convenient. The product is designed for hospitals, laboratories, beauty salons, small and medium enterprises, such as design, ideal for filling small doses of liquid and paste.

Technological parameter:

Material of machine:Stainless steel 304

Filling Range:10ml to 120ml

Capacity of Hopper:10 kg

Filling accuracy: ± 0.2-1ml

Filling speed: 20-60times/min (It varies from person to person)

Working pressure:0.4-0.6Mpa

Hopper capacity:10 liters

Net weight:18 kg

Gross weight:21 kg

Machine size:270x270x700 mm

Packing size: 340×360×790 mm

1 Nozzles:2 pcs

2 0-Ring:2 pcs

3 Guide Manual:1 pcs

4 Hexagon:2 pcs

5 Screwdriver :1 pcs

6.Foot pedal: 1pcs.

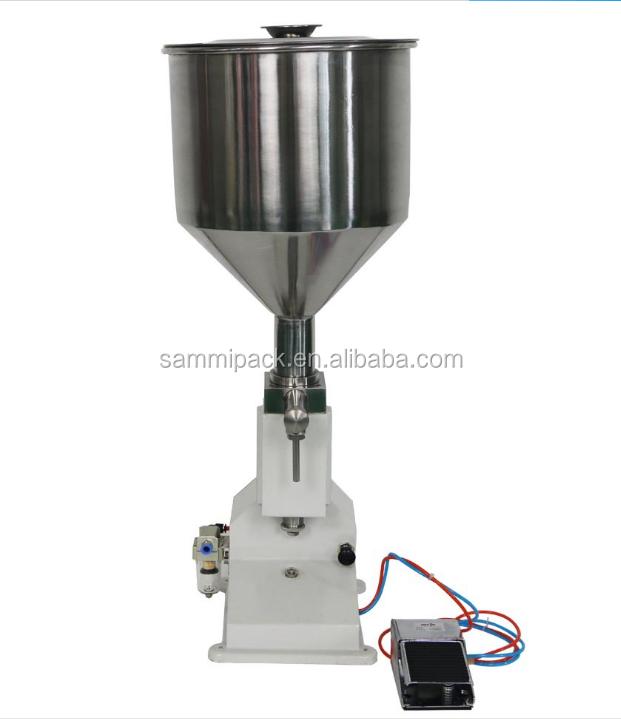

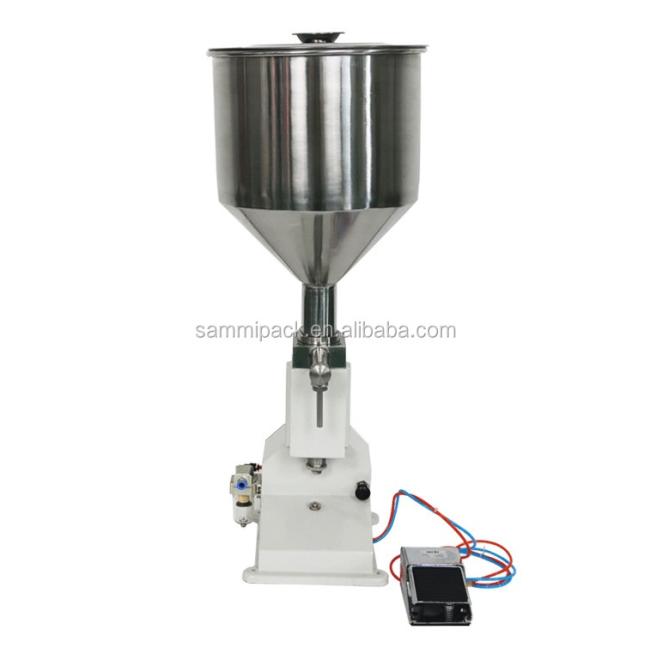

Machine picture:

Filling material sample
