G1WG-500 High Viscosity Filling Machine for Chili Paste, Soybean Sauce, Garlic Sauce
G1WG-500 high viscosity filling machine for chili paste, soybean sauce, garlic sauce
Principle:
GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Machine made of 304 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
. Adopt the anti-drip, Anti-drawing and lifting filling device.
Technical Parameters:
| Model: | G1WG-500 |
| Filling range: | 50-500ml |
| Filling material: | high viscosity |
| Driven: | electric and pneumatic |
| Air compressor: | 1.5hp |
| Applicable pressure: | 0.4-0.6mpa |
| Working head: | single head |
| Nozzle size : | 4mm/8mm/12mm( can be customize) |
| Packaging size: | 97 x 38 x 36 cm |
| Gross weight: | 30kg |
| Speed: | 20-30bottle/min |
| Machine material: | stainless steel |

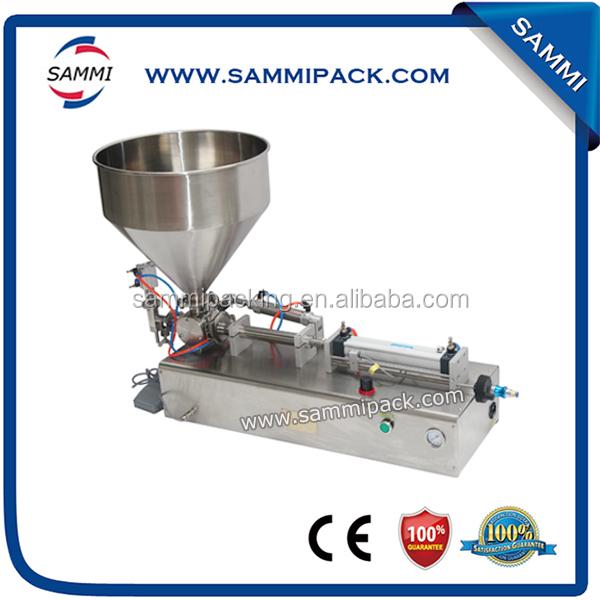

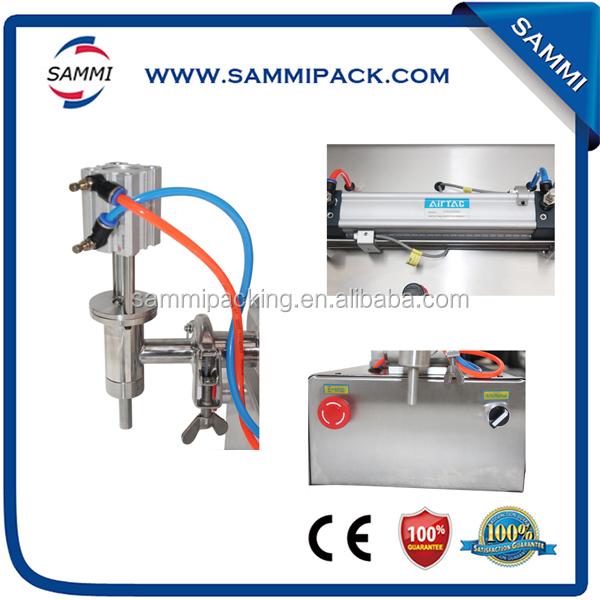

Pictures of cream filling machine
Filling material sample
| Payment Term: | T/T, L/C, Western Union, PayPal, Credit card, trade assurance |
| Package: | export standard wooden case & cartons, honeycomb paperboard case |
| Delivery Time: | 1-3 days after payment |
| transportation: | by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc) |
Shipping Time: | A, by express:about 5 days to arrive shipping destination,door to door service |
| B, by air: about 7 days to destination airport | |
C, by sea:15-30 days to destination port |
1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
