New Arrival Big Volume Cream Past Liquid Filling Machine Filler for 10-120ML
New A03D 10ml to 100ml manual cream filling machine
| Product Description |
Description:

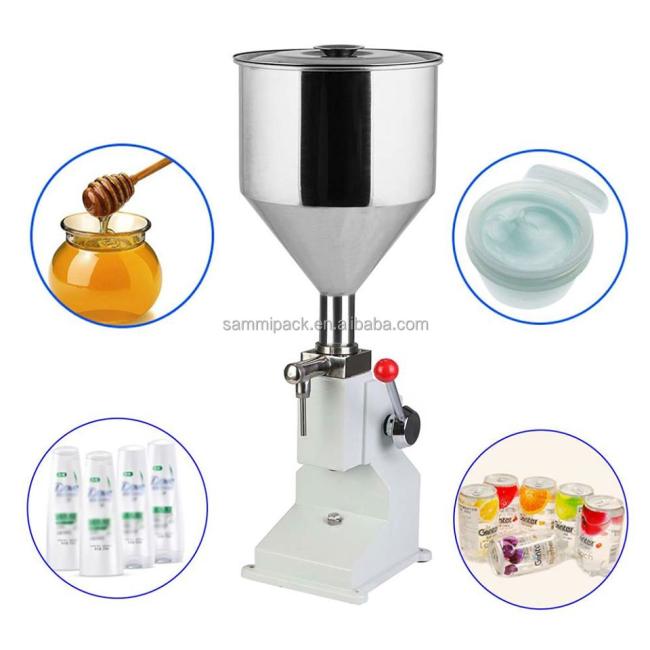

A03 type manual paste and liquid filler adopt piston structure, it can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food,lubricating oil, shampoo, cosmetic and so on.
It used widely in the field of pharmaceutical,cosmetic, food, pesticide and special field.It can also fill into tube
sealed
The filler is ideal paste and liquid filler
Feature :
1.This machine structure is simple and reasonable, manual easy operation, without any energy.
2.Equipped with filling quantity adjusting device knob, quantitative filling, quantitative filling and filling speed all
can manually control.
3.The manual filling amchine is specially designed by our factory for medium or small size enterprises,laboratory,
hospital or beasuty parlor in daily use chemical secton. Its cofiguration.is compact,acts agility and easy to use,
all the parts which dip in the materiael are made of stainless steel and polytetrafluorethylene

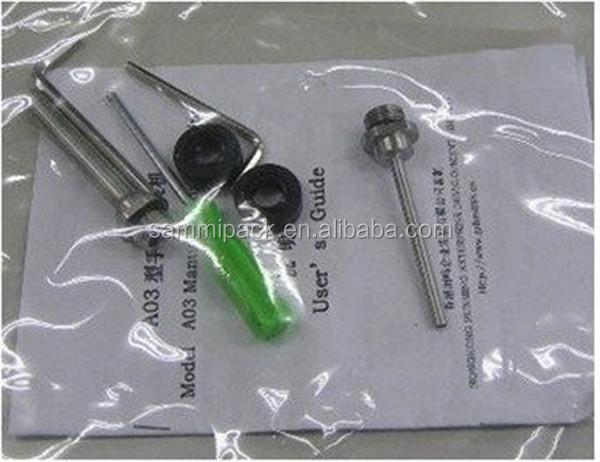

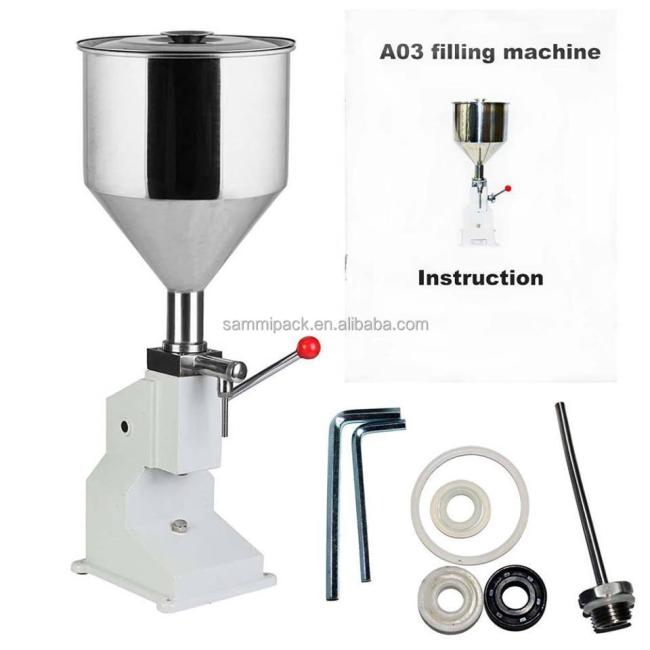

Packing list:
1 Nozzles:2 pcs
2 0-Ring:2 pcs
3 Guide Manual:1 pcs
4 Hexagon:2 pcs
5 Screwdriver :1 pcs
| Technical data |
Specifications of ice cream paper tube filling machine:
| Model | A03 |
| Material of machine | Stainless steel 304 |
| Filling Range | 10-100ml |
| Capacity of Hopper | 10 kg |
| Meterial | SS304 |
| Net weight | 12 kg |
| Gross weight | 18 kg |

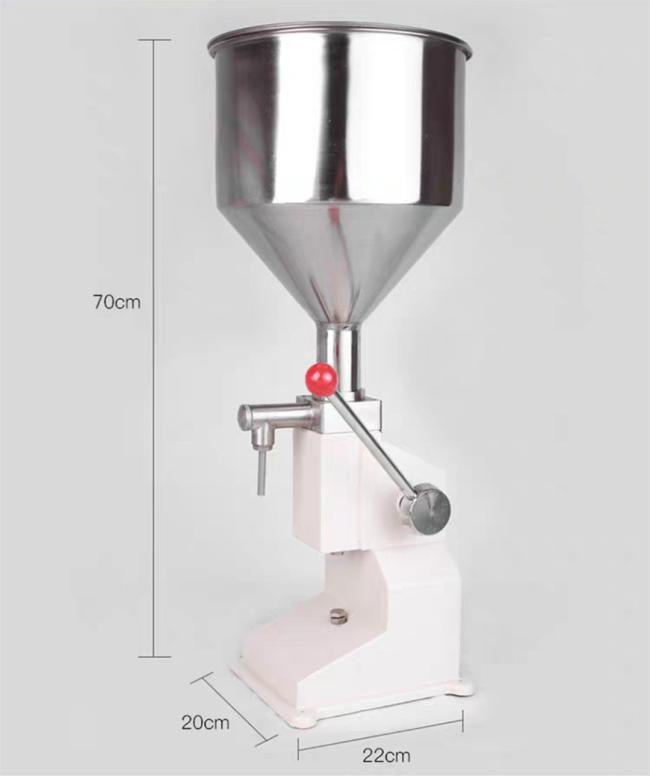

| Machine size | 270x270x700 mm |
| Packing size | 340×360×790 mm |
| Capacity of Hopper | 10 kg |
| Filling accuracy | ±1% |
| Interior diameter of filling nozzle | 8mm and 4mm |
| Anti-dripping Funtion | Available |
| Filling speed | 20-30times/min (It varies from person to person) |

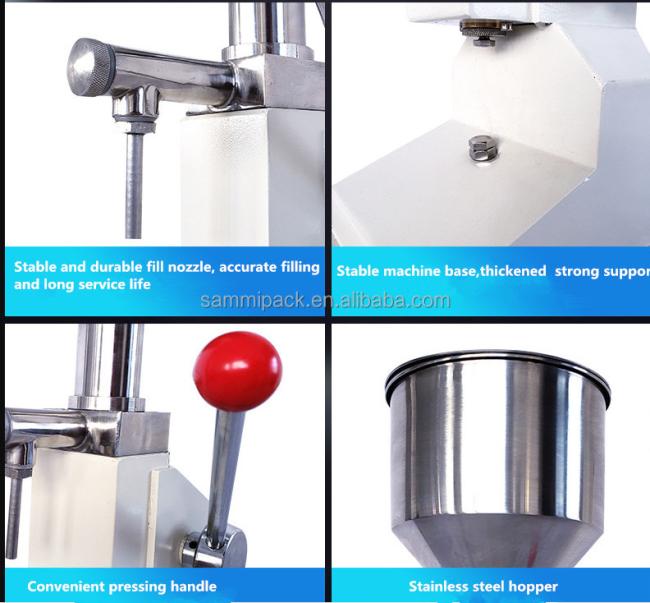

| Detail show |

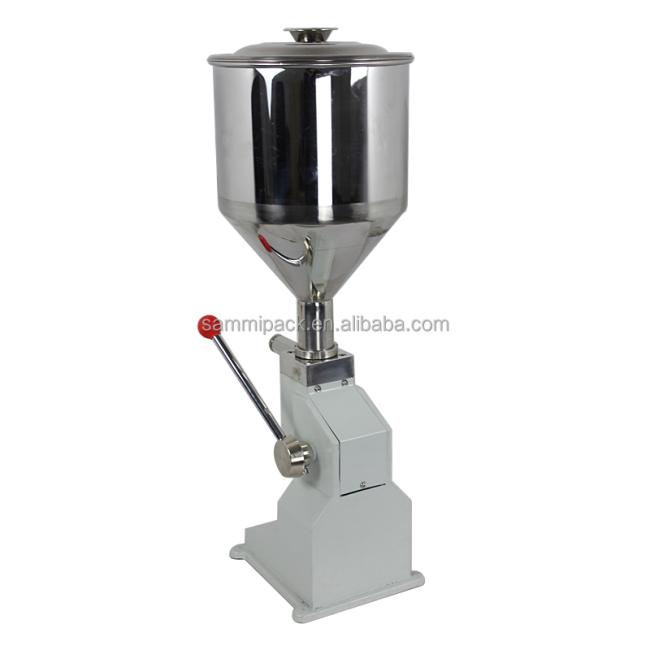

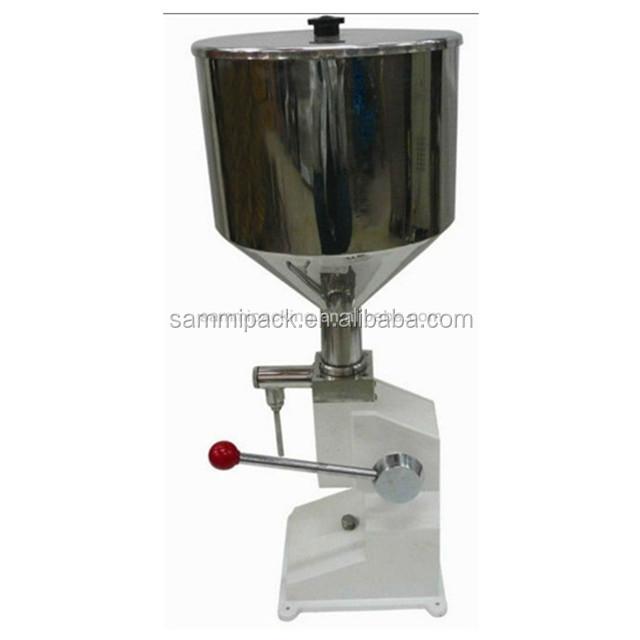

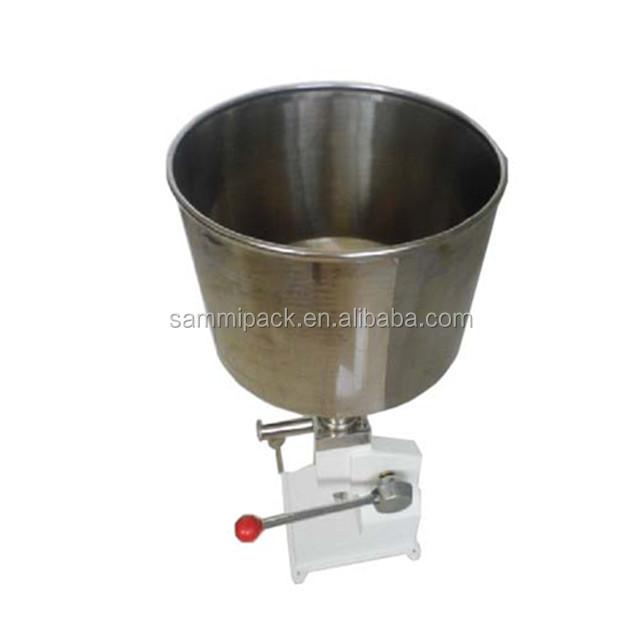

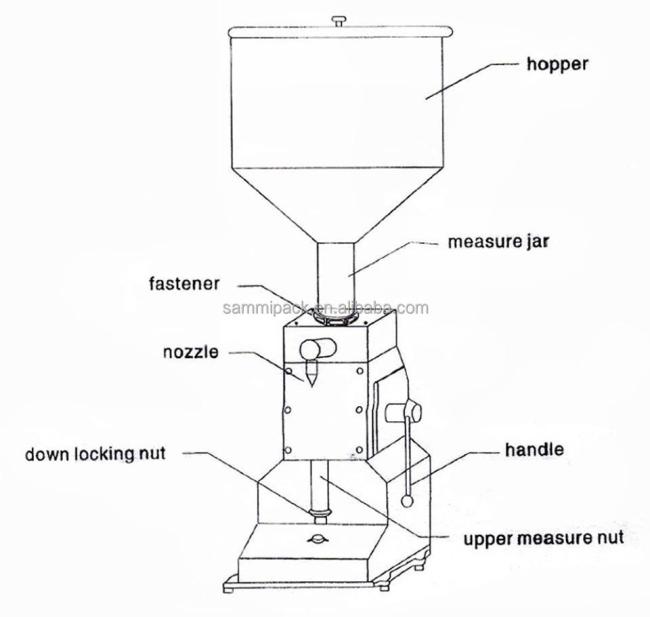

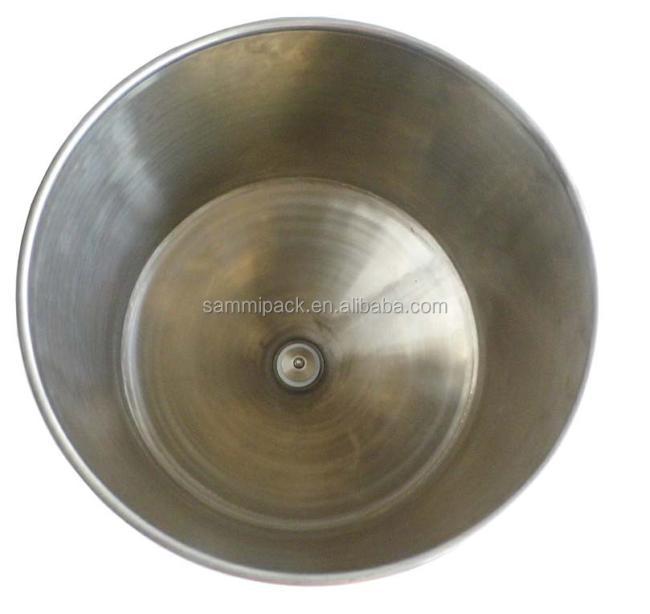

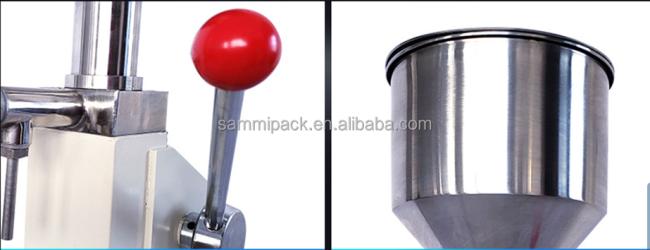

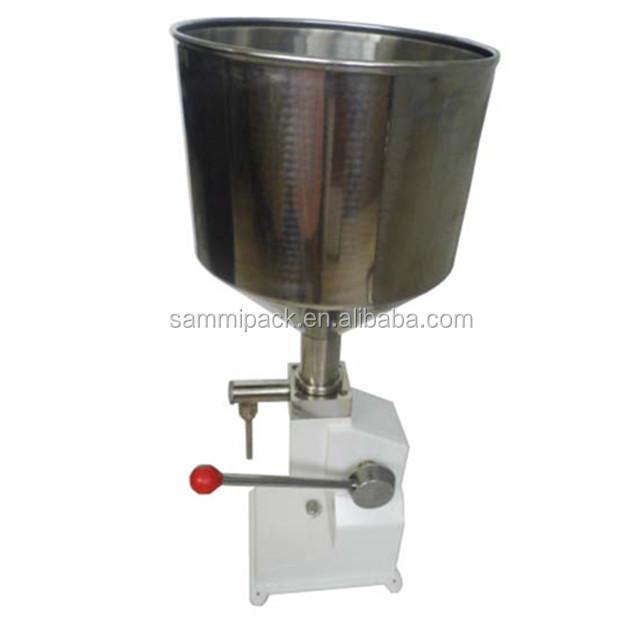

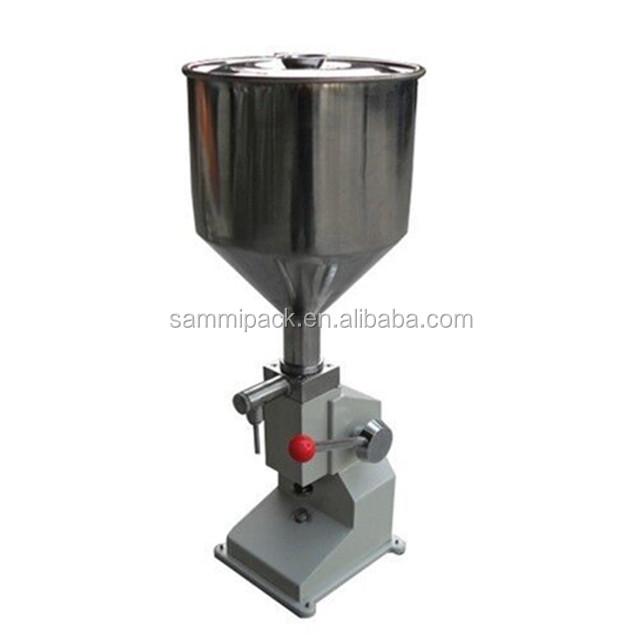

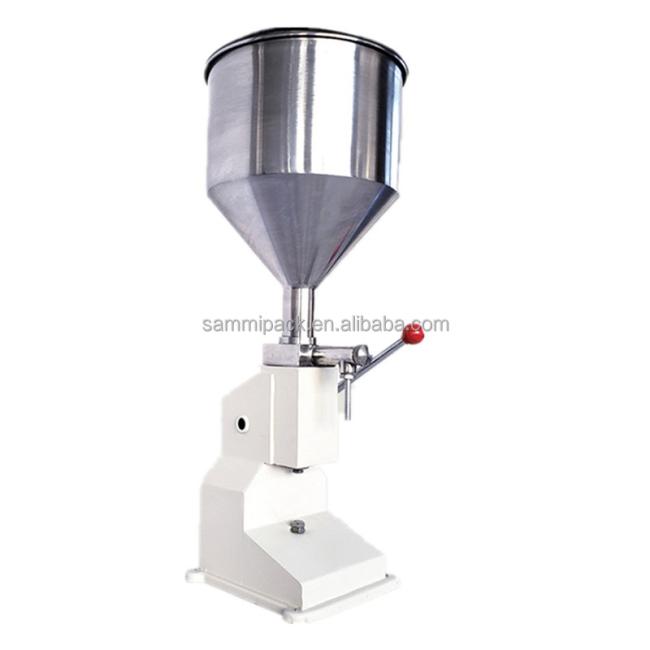

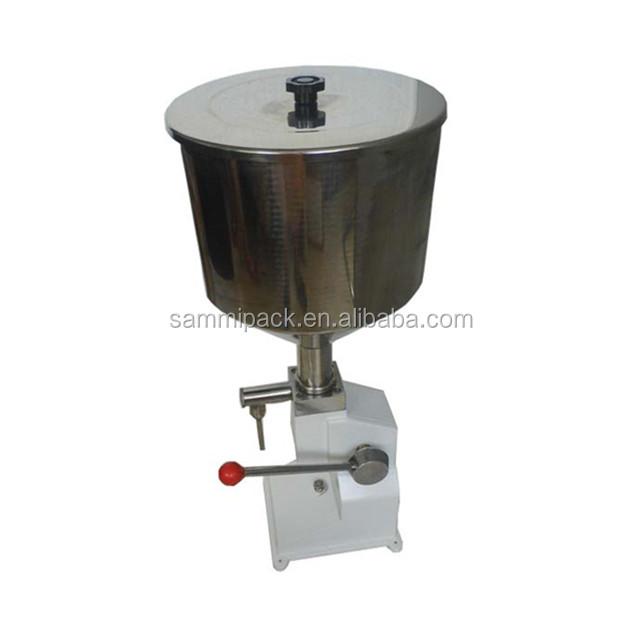

Pictures of ice cream paper tube filling machine:
