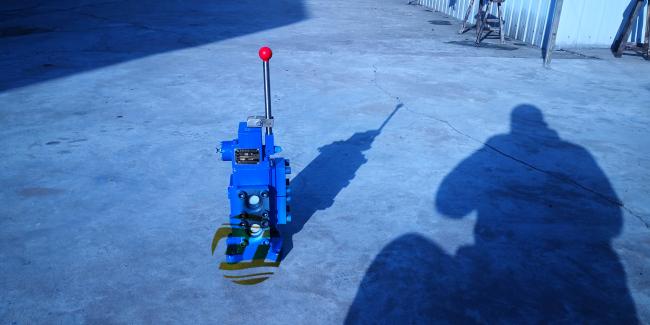

Marine Manual Proportional Flow Directional Compound Valve Model 35SFRE-MO32-H3
Price:
Negotiable
MOQ:
1
Delivery Time:
The 3 day
Brand:
FH
Product Description
Manual Direction Proportional Flow Control Valve
35SFRE manual proportional compound valve - Marine manual reverse proportional valve - Manual proportional windlass operating valve profile:
35SFRE ship with manual reversing proportional control valve is three position five way valve has excellent response characteristics and pressure compensation function; pressure compensation valve suppress load impact, flow system will not because of pressure fluctuations and volatility, and provide stable power;
The bypass compensator is used to avoid the reverse impact; in addition, the 35SFRE marine manual reversing proportional speed regulating valve has a compensator with high response characteristics, and is suitable for occasions with load impact.
35SFRE marine manual reverse proportional speed regulating valve, shipboard manual proportioning compound valve, performance characteristics:
n, stepless speed regulation, unloading and overload protection. The utility model has the advantages of simple structure and reliable operation
2, this section of 35SFRE manual proportional reversing valve, manual regulation of smooth, sensitive, reversing and stepless speed regulation synchronization
3, M type manual proportioning valve valve pump output power and motor (cylinder) load power matching, energy-saving effect is prominent, suitable for single valve or multi valve series
4, O type manual proportional flow composite valve in place without unloading, suitable for multi valve parallel connection
Marine manual proportional reversing speed control valve type 35SFRE model description:
35SFRE manual proportion compound valve, manual proportional reversing speed regulating valve, function indication:
| model | Nominal dia.(mm) | Nominal flow(L/min) |
Nominal pressure(MPa) |
Mid-position pulley enginery |
|
35SFRE |
15 | 60 |
21Mpa
|
MO,MN,MJ,MY
OO,ON,OJ,OY |
| 20 | 100 | |||
| 25 | 200 | |||
| 32 | 280 | |||
| 40 | 380 | |||
| 50 | 600 | |||
| 60 | 800 |
