SR-SC-CS18 Dc Capacitive Proximity Sensor Switch Industrial M18 Proximity Switch
Price:
Large quantity price negotiable
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
- SR-SC-CS18,Dc Capacitive Proximity Switch
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe detection due to large sensing range and low sensor tolerances
- Reduced inventory due to wide range of applications
| model | SR-SC-C18 | SR-SC-P18 | ||
| Short case type | SR-SC-CS18 | SR-SC-PS18 | ||
| external diameter | M18 | M18 | ||
| ● flush ○unshielded |
● | ○ | ● | ○ |
| Sensing distance sn: mm | 2-8mmadjustable | 2-8mmadjustable | 2-8mmadjustable | 2-15mmadjustable |
| canning material | coppered wire | PBT | ||
| ●tape light ○No indicator | ● | ● | ||
| picture |  |
 |
||
| technical specification | ||||
| working voltage | 10-30VDC | |||
| Allowable ripple voltage | ＜10% | |||
| no-load current | ＜10mA | |||
| Maximum load current | 200mA | |||
| leak current | ＜0.01mA | |||
| pressure drop | ＜2VDC | |||
| switching frequency | 100Hz | |||
| response time | 1.5ms/1.5ms | |||
| Switching hysteresis | ＜15%(Sr) | |||
| repeated accuracy | ＜5%(Sr) | |||
| level of protection | Ip67 | |||
| operating temperature | -25℃~+70℃ | |||
| temperature drift | ＜10%(Sr) | |||
| short-circuit protection | YES | |||
| overcurrent | 220mA | |||
| Inductive surface material | POM | |||

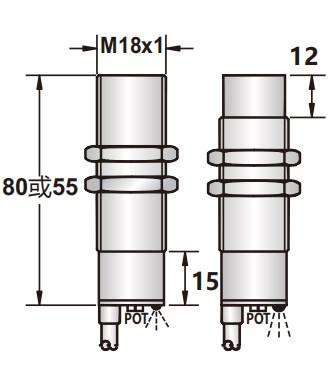

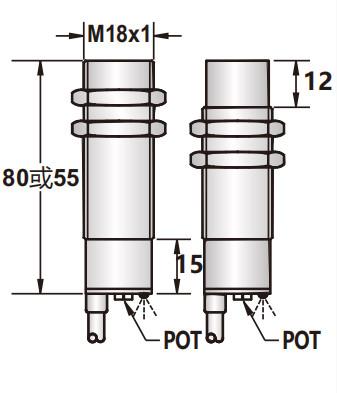

| Size drawing (unit: mm) |  |
 |
||
| Cable 2m | 4.8φ3x0.34 | 4.8φ3x0.34 | ||
| Weight (approximate) | 115gor110g | 110gor105g | 92gor89g | 94gor91g |
