SR-TF-NS/PS/NS-CP4/PS-CP4 Intelligent Digital Fiber Sensor Small Photoelectric Switch Sensor
Price:
Large quantity price negotiable
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
SR-TF-NS/PS/NS-CP4/PS-CP4,Intelligent Digital Optical Fiber Sensor,
Product characteristics
10~30VDC wide operating voltage,
Available in diffuse and reflector models,
Support NPN, PNP and other output modes,
Small size, high level of protection,
Supports 4-core PVC cables and standard M8 connectors.
With sensing performance, stable performance, fast frequency response,
Long application life, strong anti-interference ability and so on.
| model | connection type | Lead wire or Connector type | M8 connector | ||||
| acceptor | NPN | SR-TF-NS | SR-TF-NS-CP4 | ||||
| PNP | SR-TF-PS | SR-TF-PS-CP4 | |||||
| current consumption | NPN | Normal: maximum 900mW (24V, maximum 36mA; 48mA at 12V) power saving mode: 800mW at maximum (32mA at 24V; 39mA Max at 12V) | |||||
| PNP | Normal: maximum 950mW (24V, maximum 39mA; 12V, maximum 52mA) power-saving mode; Maximum 850mW (24V, maximum 35mA; 12V, 44mA Max) | ||||||
| short-circuit protection | Reverse electrode protection (power supply), overcurrent protection (output), overvoltage (output) | ||||||
| response time | Anti oFF: 50 microseconds (HIGN SPEED) 250 microseconds (FINE) /1 ms (SUPER) /16 ms (MEGA) | ||||||
| control output | NPN | NPN open collector 24V, maximum output value: 100mA or less, (connect multiple sub-modules); Residual voltage: 1V or less | |||||
| PNP | PNP collector open circuit 24V.1 output maximum: 100mA or less, brake residual voltage: 1V or less | ||||||
| Output selection | LIGHT-ON/DARK-ON (switch selection) | ||||||
| operating temperature | -20 ° C to +55 ° C (without freezing) | ||||||
| ambient humidity | 35 to 85%RH (no condensation) | ||||||
| ambient brightness | Sunlight: 30,000Lux, incandescent lamp: 20,000Lux | ||||||
| mains input | 12 to 24VDC±10%, ripple voltage (P-P); Maximum 10% | ||||||
| size | 30.3mm(height)×9.8mm(width)×71.8mm(depth) | ||||||
| weight | About 66g | ||||||
| Resistance to vibration | The frequency was 10-55Hz with a compound amplitude of 1.5mm for two hours each in the X, Y, and Z axis directions | ||||||
| shock resistance | 500m/s², using an acceleration of 50g, three times each in the X, Y and Z directions | ||||||
| light source | Red light emitting diode LED tube body | ||||||
| materials | polycarbonate | ||||||

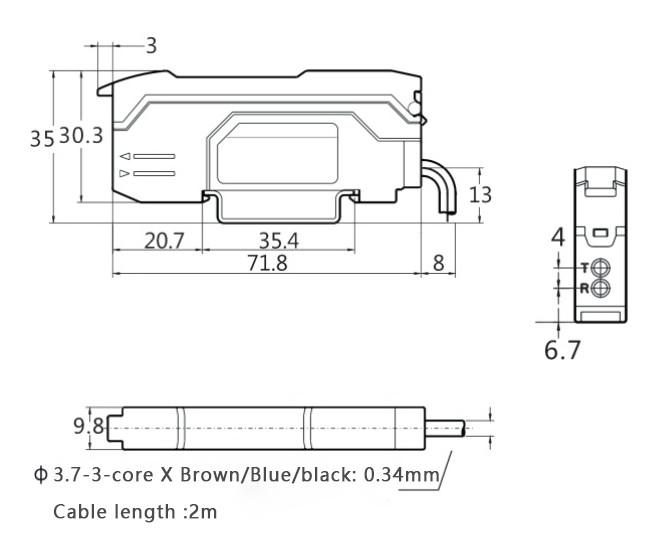

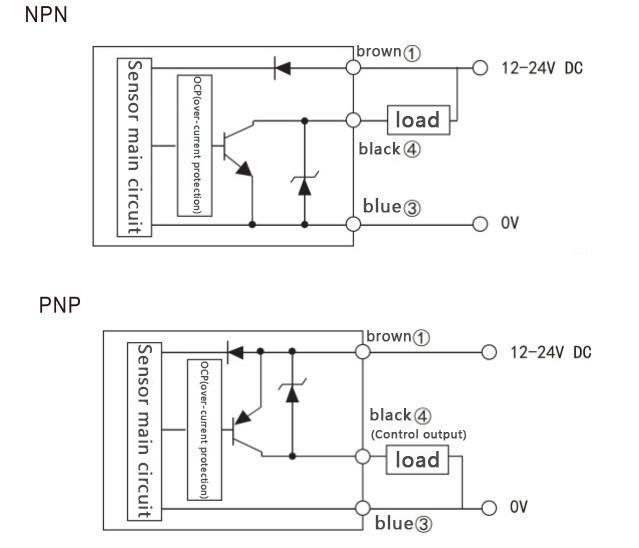

| dimension figure | wiring diagram | ||||||
 |
 |
||||||
| Remark: When using the "High speed" mode, the power consumption will increase by 7mA. | |||||||
