M08 DC Photoelectric Beam Sensor 10% Hysteresis Photoelectric Light Switch
Price:
Large quantity price negotiable
MOQ:
one
Delivery Time:
1-2 work days
Brand:
SUPERISYS
Product Description
M08 DC Photoelectric Switch
| picture |  |
working voltage | 10-30VDC | ||
| Allowable ripple voltage | ≤10% | ||||
| error | ±10%Sn | ||||
| hysteresis | 10% | ||||
| light source | Infrared light (880nm) (Sensing distance of 80 mm is red light (660nm)) | ||||
| maximum current output | 150mA | ||||
| no-load current | 30mA or less | ||||
| Conduction pressure drop | ≤2 .5V | ||||
| sensitivity adjustment | - | ||||
| response time | 1mS | ||||
| short-circuit protection | Yes | ||||
| Polarity reversal protection | Yes | ||||
| operating temperature | -25~+55℃ | ||||
| ambient humidity | 35to85%RH | ||||
| Background brightness | >10.000Lux | ||||

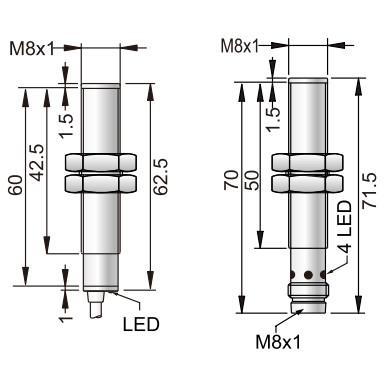

| dimension figure |  |
protection class | IP67 | ||
| EMC protection | IEC60947-5-2,parts7.2.6.1.2.3 or RFI>10v/m(at 30-1000mhz),EFT>1KV, ESD>4KV(connection) | ||||
| withstand voltage | IEC60947-5-2 or 500VDC power on for one minute | ||||
| insulation resistance | >20mA(500VDC) | ||||
| shake | IEC60947-5-2 or 10-55Hz,1.0mm amplitude, for 30 minutes in X,Y and Z directions | ||||
| impact | IEC60947-5-2, the acceleration is 30g, the duration is 11ms | ||||
| canning material | PBT or nickel plated copper | ||||
| Standard test object | A circle with a diameter of 8mm | ||||
| canning material | Nickel-plated copper housing | PBT shell | |||
| connection type | 2m PVC (4x0.15mm² ) | M12 connector type | 2m PVC (4x0.15mm² ) | M12 connector type | |
| model | SR-TT-C08 | SR-TT-U08 | |||
 The target is 80mm |
ejector | SR-TT-C08-DE | SR-TT-C08-DE-E4 | SR-TT-U08-DE | SR-TT-U08-DE-E4 |
| NPN bright pass + dark pass | SR-TT-C08-NS | SR-TT-C08-NS-E4 | SR-TT-U08-NS | SR-TT-U08-NS-E4 | |
| PNP bright pass + dark pass | SR-TT-C08-PS | SR-TT-C08-PS-E4 | SR-TT-U08-PS | SR-TT-U08-PS-E4 | |
| model | SR-TT2-C08 | SR-TT2-U08 | |||
 Diffuse reflection 150mm |
NPN bright pass + dark pass | SR-TT2-C08-NS | SR-TT2-C08-NS-E4 | SR-TT2U08-NS | SR-TT2-U08-NS-E4 |
| PNP bright pass + dark pass | SR-TT2-C08-PS | SR-TT2-C08-PS-E4 | SR-TT2-U08-PS | SR-TT2-U08-PS-E4 | |
| model | SR-TT3-C08 | SR-TT3-U08 | |||
Diffuse reflection 500mm |
NPN bright pass + dark pass | SR-TT3-C08-NS | SR-TT3-C08-NS-E4 | SR-TT3-U08-NS | SR-TT3-U08-NS-E4 |
| PNP bright pass + dark pass | SR-TT3-C08-PS | SR-TT3-C08-PS-E4 | SR-TT3-U08-PS | SR-TT3-U08-PS-E4 | |
| model | SR-TT4-C08 | SR-TT4-U08 | |||
Reflector 1m with filter |
NPN bright pass + dark pass | SR-TT4-C08-NS | SR-TT4-C08-NS-E4 | SR-TT4-U08-NS | SR-TT4-U08-NS-E4 |
| PNP bright pass + dark pass | SR-TT4-C08-PS | SR-TT4-C08-PS-E4 | SR-TT4U08-PS | SR-TT4-U08-PS-E4 | |
| model | SR-TT5-C18 | SR-TR2-U08 | |||
Reflector 3mm |
NPN bright pass + dark pass | SR-TT5-C08-NS | SR-TT5-C08-NS-E4 | SR-TT5-U08-NS | SR-TR2-U08-NS-E4 |
| PNP bright pass + dark pass | SR-TT5-C08-PS | SR-TT5-C08-PS-E4 | SR-TT-U08-PS | SR-TR2-U08-PS-E4 | |
