55 Ton Vertical Rotary Plastic Injection Molding Machine AMP Connectors Making Machine
55 Ton Vertical Rotary Plastic Injection Molding Machine AMP Connectors Making Machine
The locking force specifications of the TAIFU vertical rotary table injection molding machine range from 35 tons to 350 tons, with a minimum diameter of 810mm and a maximum diameter of 2300mm. The machine is equipped with a high-performance control system, providing strong guarantee for high-quality injection molding accuracy and stability.
The vertical rotary injection molding machine, due to its unique rotatable disc design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.
This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts.
1.Specification:
| Items | Unit | TFV3-35R2 | TFV3-55R2 | TFV3-85R2 | ||||||
| Injection Unit | ||||||||||
| Screw Diameter | mm | 22 | 26 | 28 | 28 | 32 | 36 | 32 | 36 | 40 |
| Theoretical Injection Volume | cm³ | 53 | 74 | 86 | 86 | 113 | 143 | 113 | 143 | 176 |
| Injection Weight | g | 49 | 69 | 80 | 80 | 105 | 133 | 105 | 133 | 164 |
| Max. Injection Pressure | Mpa | 248 | 178 | 153 | 213 | 163 | 129 | 228 | 180 | 146 |
| Injection Rate | cm³/s | 44 | 62 | 72 | 63 | 84 | 107 | 100 | 126 | 156 |
| Injection Speed | mm/s | 117 | 105 | 124 | ||||||
| Screw Speed Rotation | r.p.m | 10~300 | 10~300 | 10~280 | ||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | ||||||
| Clamping Unit | ||||||||||
| Clamping Force | KN | 343(35)/441(45) | 539(55) | 833(85)/980(100) | ||||||
| Clamping Stroke | mm | 200 | 200 | 250 | ||||||
| Ejector Force | KN | 26.5(2.7) | 26.5(2.7) | 45(4.6) | ||||||
| Others | ||||||||||
| System Pressure | Mpa | 13.7(140)/17.2(175) | 13.7(140) | 13.7(140)/17.2(175) | ||||||
| Oil Tank Capacity | L | 200 | 230 | 300 | ||||||
| Motor Power | KW | 7.5/11 | 11 | 15+2.2/18+2.2 | ||||||
| Heater Power | KW | 3.6 | 5.5 | 7.0 | ||||||
2. Features:
- The disc rotates 180 degrees in the same horizontal plane, which allows theoperator to pick and place inserts on the fixed operating surface, which is convenient for work and high in production efficiency.
- Standard disc is 2 stations, 3 stations or 4 stations can be selected for specialneeds to achieve more convenient operation. It can be connected with automation for line planning and increase production capacity.
- Automation devices such as automatic insertion and removal can be installed toachieve automatic operation of the whole machine.

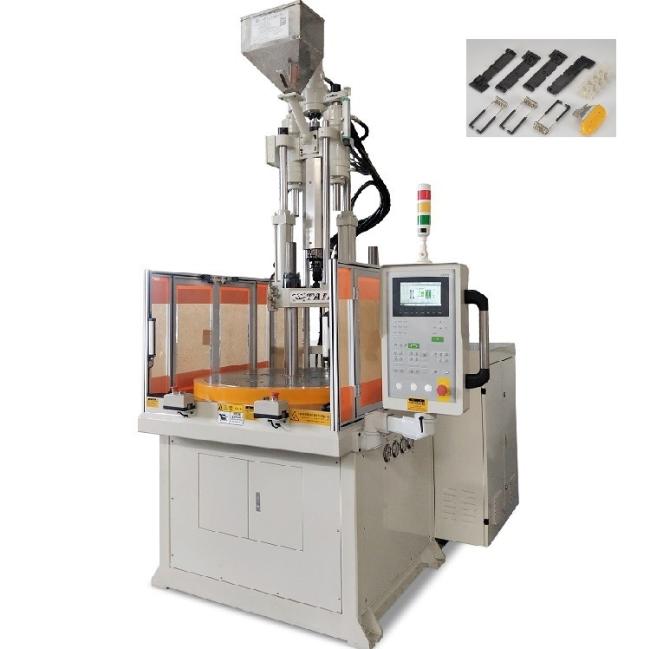

3. Machine Pictures:

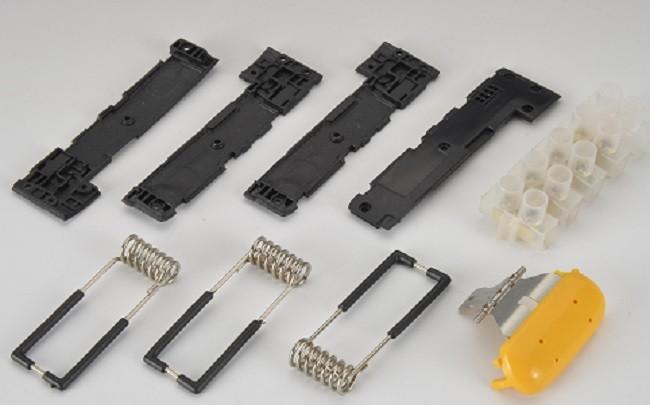

4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
