55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
TAIFU 35-ton silicone USB cable liquid silicone rubber injection molding machine is designed to produce high-quality USB cables using liquid silicone rubber material. With its precision, stability, efficiency, and customization options, it provides a reliable solution for manufacturing silicone products with consistent quality and performance.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| UNIT | TFV4-55S-LSR | TFV4-55SD-LSR | TFV3-55R2-LSR | ||||||
| INJECTION UNIT | Screw stroke | mm | 120 | ||||||
| Screw Diameter | mm | 14 | 16 | 18 | 22 | 26 | 28 | ||
| Theoretical Injection Volume | cm3 | 18 | 24 | 31 | 46 | 64 | 74 | ||
| Injection Weight(LSR) | g | 20 | 27 | 34 | 50 | 70 | 81 | ||
| oz | 0.72 | 0.94 | 1.18 | 1.77 | 2.47 | 2.87 | |||
| Max.Injection Pressure | Mpa | 462 | 354 | 279 | 187 | 134 | 116 | ||
| kgf/cm2 | 4714 | 3609 | 2852 | 1909 | 1367 | 1179 | |||
| Injection Rate | cm3/s | 25 | 32 | 41 | 61 | 85 | 99 | ||
| Max Injection Speed | mm/s | 161 | |||||||
| Screw Speed Rotation | r.p.m | 0-300 | |||||||
| Positioning ring diameter | mm | 110 | 100 | ||||||
| Nozzle Out From Platens | mm | ≥45 | |||||||
| CLAMPING UNIT | Clamping Force | KN(ton) | 539(55) | ||||||
| Clamping Stroke | mm | 200 | |||||||
| Min.Mold Thickness | mm | 180(240) | |||||||
| Max.Opening | mm | 380(440) | |||||||
| (L*W)Distance Between Tie Bars | mm | 445*255 | _ | ||||||
| (L*W)Max.Mould Size | mm | 400*375 | 380*380 | 310*310 | |||||
| (L*W)Skate size | mm | 915*400 | 915*400 | φ910 | |||||
| QTY of Ejector | pcs | 3 | |||||||
| Top bar spacing | mm | 80 | |||||||
| Ejector Distance | mm | 100 | |||||||
| Ejector Force | KN(ton) | 26.5(2.7) | |||||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||||
| Oil Tank Capacity | L | 140 | 180 | 230 | |||||
| Electric Power | KW | 7.5 | 7.5+2.2 | 7.5+2.2 | |||||
| Reserved mold electric heating power | KW | 6*4 | 6*6 | 6*6 | |||||
| Machine Dimensions | L*W | m | 2.05*1.3 | 1.8*1.3 | 2.0*1.6 | ||||
| H | m | Min:2.32(Max:2.9) | Min:2.32(Max:2.9) | Min:2.4(Max:3.0) | |||||
| Cooling water capacity | L/min | 35 | |||||||
| Work table height | mm | 1088+(60) | 1020+(60) | 1020+(60) | |||||
| Machine Weight | ton | 2.0 | 2.2 | 2.9 | |||||
2. Features:
-
Suitable for liquid silicone injection molding of products with inlays and multi-purpose liquid silicone injection molding processes
-
Multiple models of single slide (S), double slide (SD) or disc (R) are available, which not only improves safety but also increases production efficiency by 30%-50%.
-
Digitally adjusted multi-stage precision mold electric heating temperature control

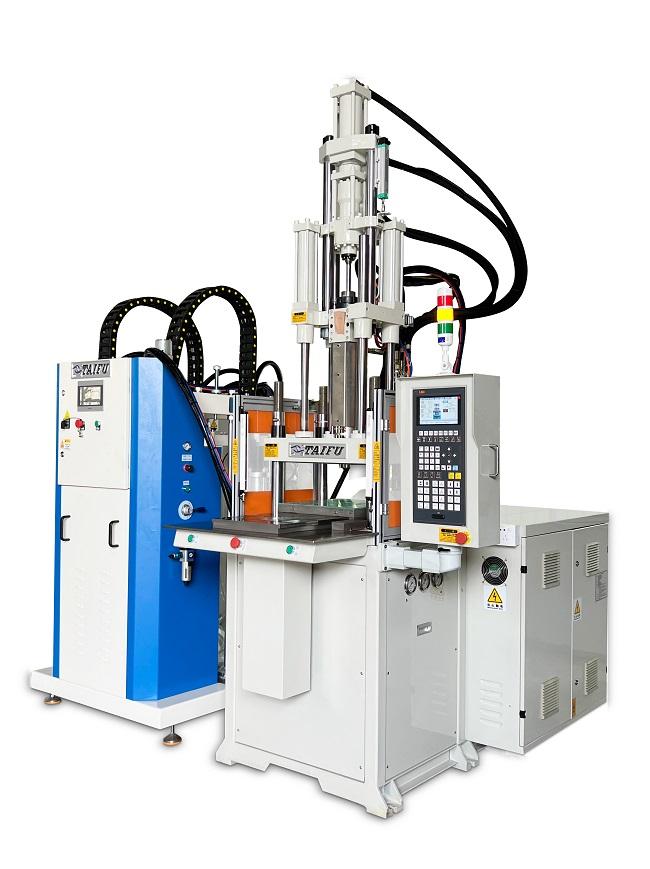

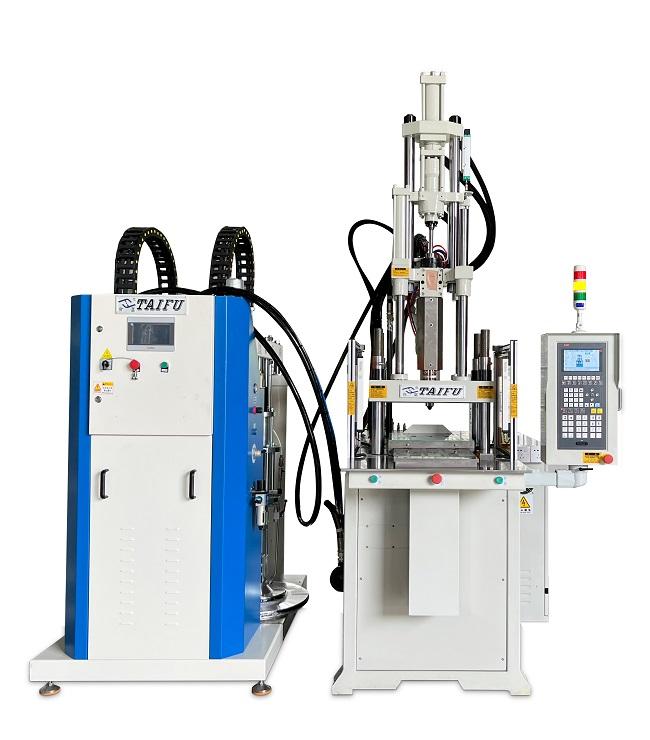

3. Machine Pictures:

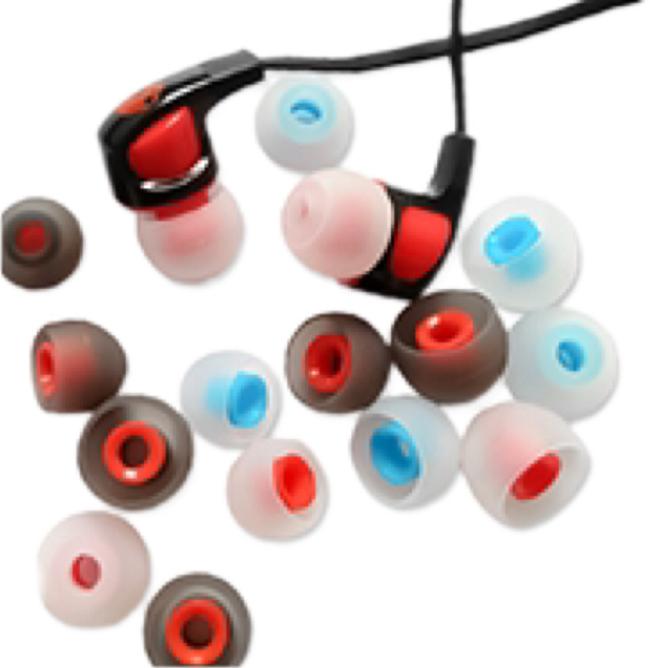

4. Applications:
5. FAQ:
Q: What are the 4 types of silicon?
A: Silicon or other semiconductor materials used for solar cells can be single crystalline, multicrystalline, polycrystalline or amorphous.
Q: Can silicone rubber be injection Moulded?
A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to produce pliable, durable parts in high volumes.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
