55 Ton Plastic Injection Molding Machine Toothbrush Making Machine
55 Ton Plastic Injection Molding Machine Toothbrush Making Machine
1.Specification:
| Items | Unit | TFV3-35R2 | TFV3-55R2 | TFV3-85R2 | ||||||
| Injection Unit | ||||||||||
| Screw Diameter | mm | 22 | 26 | 28 | 28 | 32 | 36 | 32 | 36 | 40 |
| Theoretical Injection Volume | cm³ | 53 | 74 | 86 | 86 | 113 | 143 | 113 | 143 | 176 |
| Injection Weight | g | 49 | 69 | 80 | 80 | 105 | 133 | 105 | 133 | 164 |
| Max. Injection Pressure | Mpa | 248 | 178 | 153 | 213 | 163 | 129 | 228 | 180 | 146 |
| Injection Rate | cm³/s | 44 | 62 | 72 | 63 | 84 | 107 | 100 | 126 | 156 |
| Injection Speed | mm/s | 117 | 105 | 124 | ||||||
| Screw Speed Rotation | r.p.m | 10~300 | 10~300 | 10~280 | ||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | ||||||
| Clamping Unit | ||||||||||
| Clamping Force | KN | 343(35)/441(45) | 539(55) | 833(85)/980(100) | ||||||
| Clamping Stroke | mm | 200 | 200 | 250 | ||||||
| Ejector Force | KN | 26.5(2.7) | 26.5(2.7) | 45(4.6) | ||||||
| Others | ||||||||||
| System Pressure | Mpa | 13.7(140)/17.2(175) | 13.7(140) | 13.7(140)/17.2(175) | ||||||
| Oil Tank Capacity | L | 200 | 230 | 300 | ||||||
| Motor Power | KW | 7.5/11 | 11 | 15+2.2/18+2.2 | ||||||
| Heater Power | KW | 3.6 | 5.5 | 7.0 | ||||||
2. Features:
- Use KEBA controller
- Easy and user-friendly operation interface.
- Use mechanical direct-locking structure, longer mold service life and lower energy consumption
- High positioning accuracy
- Automation devices such as automatic insertion and removal can be installed toachieve automatic operation of the whole machine.

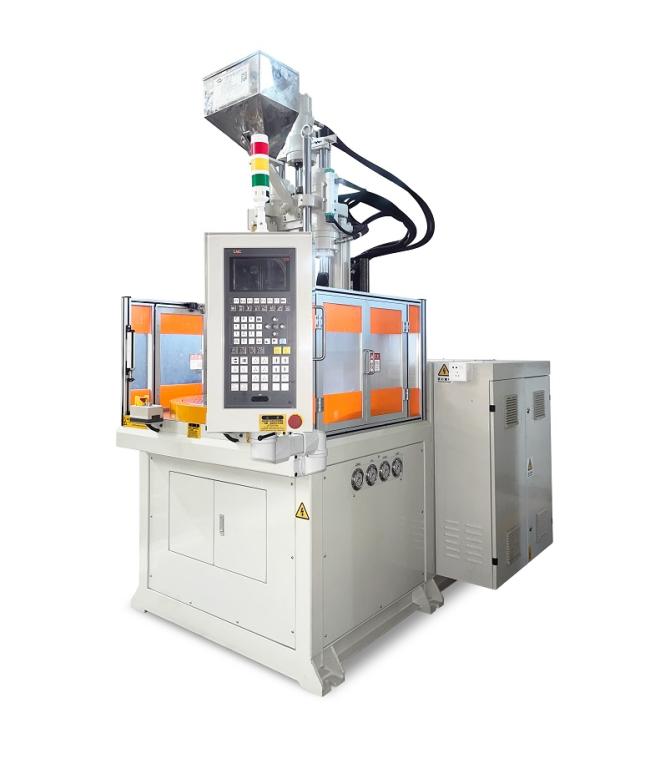

3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
If you are interested in our machines, please do not hesitate to CONTACT US!
