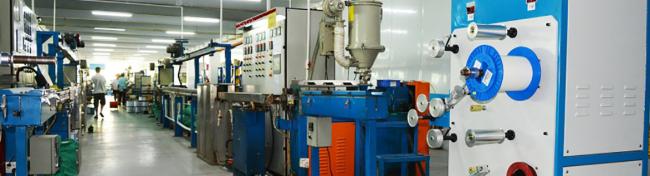

Rongbagn 30 Line Indoor Fiber Cable Production Line Tight Buffer Line

Features:

1. Precision special small extruder and precision fine adjustment machine head. The outer diameter of the cable is uniform, the core degree is high, the outer diameter is automatically feedbacked, and the cable diameter curve can be traced back.

2. The vacuum system is adjustable in vacuum and can be linked to the line speed.

3. Optical fiber is motorized released. The tension is precisely constant and the additional loss is small.

4. Temperature control is controlled by imported OMRON temperature control meter, and temperature control is accurate.

5. Double-reels automatic change, the operation is stable and reliable.

6. International industrial computer technology control system with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.

7. The main control systems and components are international famous brands, and the production line has high stability and reliability.

Application:

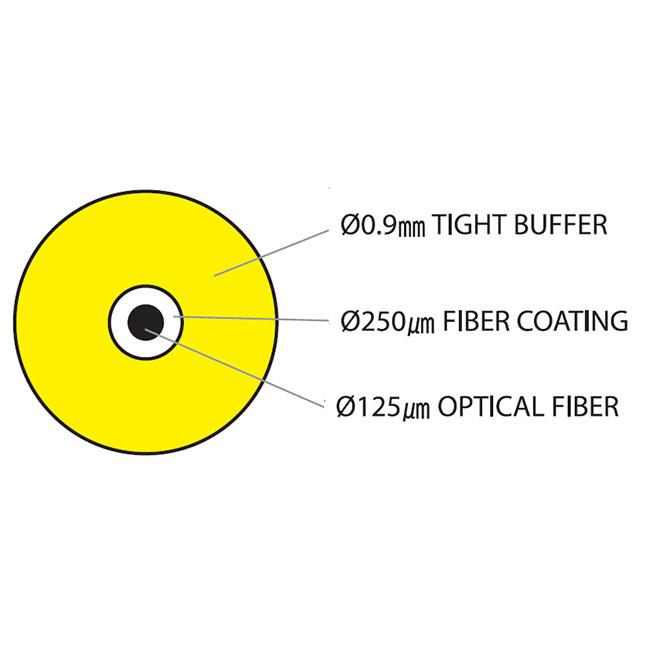

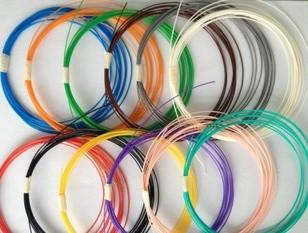

This Optical fiber cable production line makes fiber optic cable buffer 0.6/0.8/0.9mm. Cable structure: bare fiber + LSZH/PVC sheath, and other similar cables.

This line can be used for steel wire plastic coating, steel wire diameter 1.0mm max. which is mainly used in FTTH drop cable production.

Machine component configuration is adjustable according process request.

Technical Parameters

Line Configuration
