Outdoor Fiber Cable Production Machine PBT Fiber Loose Tube Line 50 Line
Rongbang 50 Line Outdoor Fiber Cable Production Line PBT Fiber Loose Tube Line
Description
PBT Fiber Cable Production Line, Optical Fiber Loose Tube Cable machinery:
This equipment is mainly used for extrusion production of secondary coating 1~12 core /24 colored bare fibers bundle tube with jelly filled, and extrudsion material is sutiable for modifying beign PP and PBT.
Technical Parameters
| Parameter | Value |
| fiber and finished cable diameter | 2~12 cores,1.5~5.0mm |
| Pay-off tension | 0.4～1.5N±0.05N |
| Specification of reinforcement pay-off reels | φ236*φ160*108mm, φ236*φ160*236mm |
| Hot water temperature | RT～70℃±2℃ |
| Take-up tension | 2.5～8.0N |
| Structure speed | 300m/min |
| Production speed | 20～300m/min(Ф1.8mmPBT loose tube) |
| Overlength control | (0～3‰)±0.2‰ |
| Meter error | <1.5‰ |
| Specification of reinforcement take-up reels | PN630mm - PN800mm |
| Production line dimension | 45x3x2.5m |
| Power request | 380v + 5% 50Hz AC 3 phase +N line + ground line |

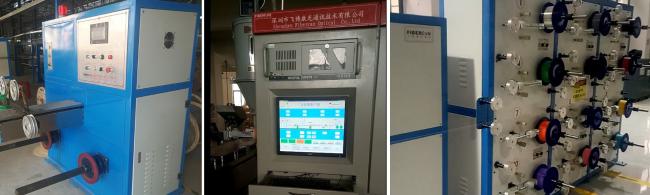

Line Configuration
1. Fiber active pay-off (12 or 24 heads option);
2. Jelly degassing and filling device;
3. 50 extruder group;
4. 50KG dryer and hopper;
5. PLC+IPC FIBERCAN program electry control cabinet;
6, 4 m mobile hot water trough + hot water tank
7, wheeled capstan;
8. 12m Cold water trough + tank with blowing dryer;
9. Chiller;
10. Wheel Capstan;
11. Diameter laser gauge;
12. Take-up tension unit;
13. φ800 dual reels take-up.
Above full set configuration is adjustable according different structure cables' production request.
