Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti-UV RoHS Insulated Heat Shrinkable Cable End Caps Flame-retardant Wire End Caps
Product Description:

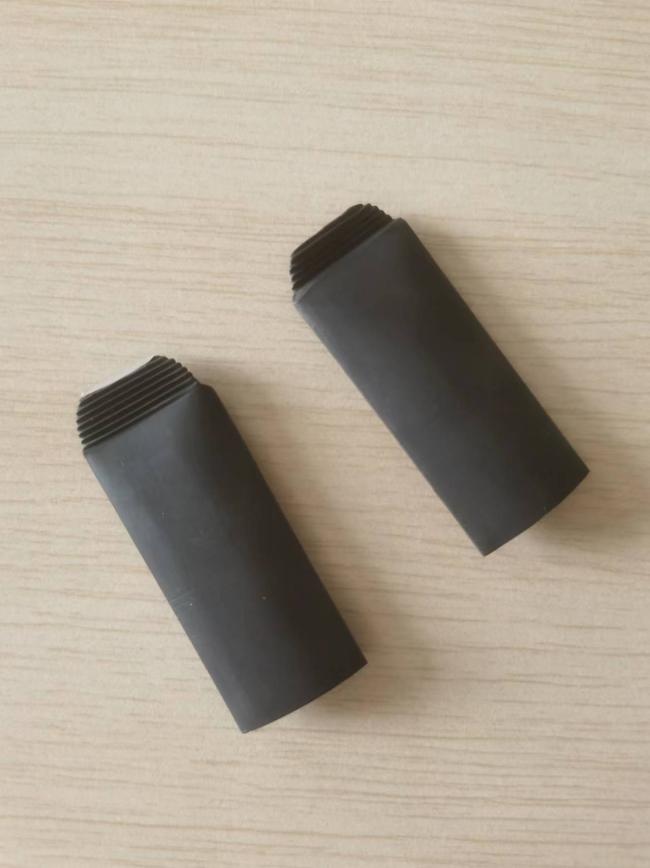

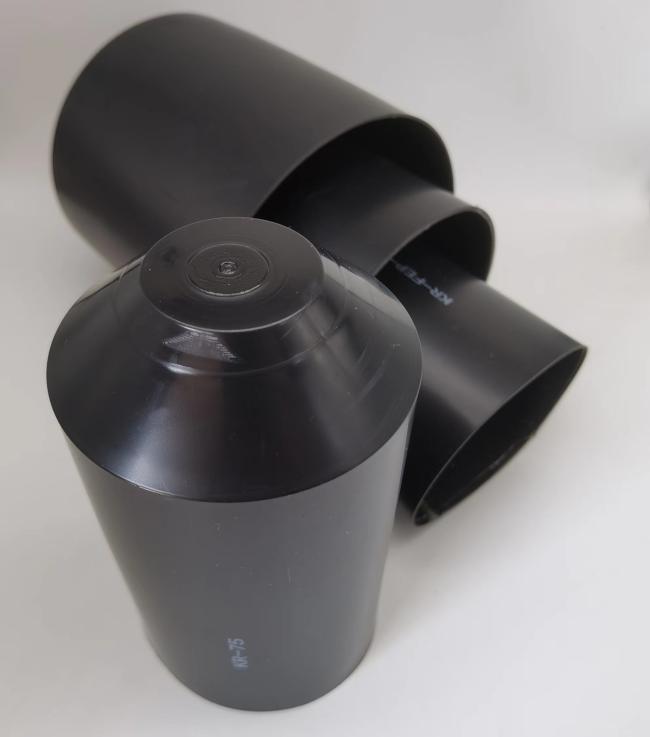

Heat shrink cable end caps manufactured from polyolefin,applied as insulation of power and telecommunication cable ends.
Features:
• Manufactured from cross-linked polyolefin
• Used to seal cable ends during installation or storage, protecting cable ends against oxidation,ozone,UV,etc
• Coated with hot-melt adhesive to ensure reliable seal of cable ends
• Flame-retardant end caps are available upon customer request ,Available with valve if required

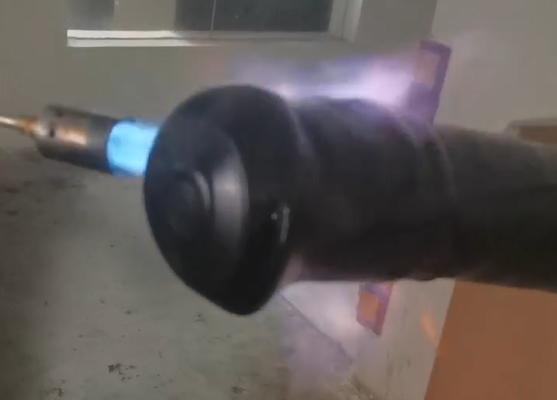

• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Applications:
Used to seal cable ends during installation or storage, protecting cable ends against oxidation,ozone,UV,et
Technical Parameters:
| Property | Test Method | Standard Value |
| Tensile Strength | ASTM-D-638 | ≥12MPa |
| Elongation at Break | ASTM-D-638 | ≥300% |
| Tensile Strength after Aging | ASTM-D-638 | ≥10MPa(130℃,168 hrs) |
| Elongation at Break after Aging | ASTM-D-638 | 230%(130℃,168 hrs) |
| Dielectric Strength | IEC 60243 | ≥15 kV/mm |
| Volume Resistivity | IEC 60093 | ≥1×10^13Ω·cm |
| Longitudinal Shrinkage | ASTM-D-2671 | ≤10% |
| Water Absorption | S062 | ≤0.50 |
| Eccentricity | ASTM-D-2671 | ≤30% |
Select Table:
| Product No | Diameter/mm | Length(±5)/mm | Wall Thickness/mm | |
| As Supplied(Min) | After Recovered(Max) | After Recovered(±0.1) | ||
| WRSFM-12/5 | 12 | 5 | 45 | 2.5 |
| WRSFM-16/8.5 | 16 | 8.5 | 70 | 2.5 |
| WRSFM-20/8.5 | 20 | 8.5 | 72 | 2.5 |
| WRSFM-25/11 | 25 | 11 | 84 | 2.5 |
| WRSFM-30/16 | 30 | 16 | 94 | 3 |
| WRSFM-35/17 | 35 | 17 | 94 | 2.6 |
| WRSFM-40/15 | 40 | 15 | 94 | 2.6 |
| WRSFM-55/26 | 55 | 26 | 25 | 2.5 |
| WRSFM-74/31 | 74 | 31 | 145 | 3.2 |
| WRSFM-97/40 | 97 | 40 | 140 | 5 |
| WRSFM-120/57 | 120 | 57 | 150 | 4.4 |
| WRSFM-140/63 | 140 | 63 | 84 | 4 |
| WRSFM-200/95 | 200 | 95 | 270 | 4 |
| WRSFM-245/95 | 245 | 95 | 270 | 4 |
Remark:The end cap coated with hot-melt adhesive comes in two forms:flat adhesive and spiral adhesive.which can meet different customer needs.
