Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone
Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone
Product Description:
- Apply Environmental Condition
| No. | Item | Specification |
| 1-1 | Storage Temperature Range | -55℃～80℃ |
| 1-2 | Operating Temperature Range | -50℃～70℃ |
| 1-3 | Operating Voltage Range | 5-8.4V |
- Mechanical Specification
| No. | Item | Specification |
| 2-1 | Size | 40*20*38.5mm |
| 2-2 | Weight | 60g |
| 2-3 | Gear ratio | 342 |
| 2-4 | Bearing | Double bearing |
| 2-5 | Connector wire | 300±5mm |
| 2-6 | 马达 Motor | Coreless motor |
| 2-7 | 防水性能Waterproof performance | IP66 |

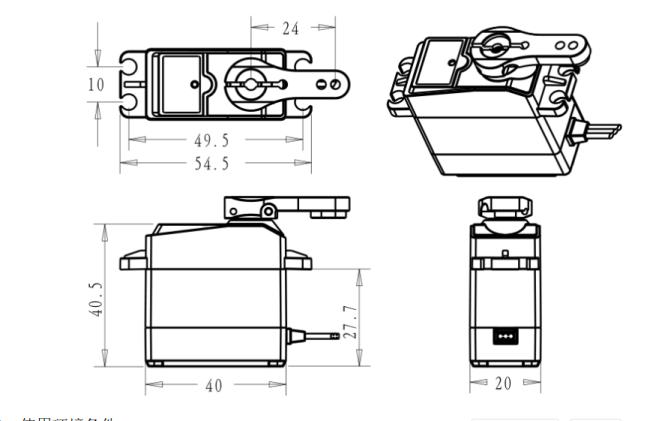

Detailed pictures:
- Electrical Specification
| No. | Operating Voltage | 5V | 6V | 7.4V | 8.4V |
| 3-1 | Idle current(at stopped) | 5mA | 5mA | 5mA | 5mA |
| 3-2 | Operating speed (at no load) | 0.18 sec/60° | 0.15 sec/60° | 0.13 sec/60° | 0.11 sec/60° |
| 3-3 | Stall torque (at locked) | 35 kg-cm | 40 kg-cm | 46 kg-cm | 51 kg-cm |
| 3-4 | Stall current (at locked) | 3.5A | 4.2 A | 5.2 A | 5.8A |
- Control Specification
| No. | Item | Specification |
| 4-1 | Control System | PWM(Pulse width modification) |
| 4-2 | Pulse width range | 500～2500µsec |
| 4-3 | Neutral position | 1500µsec |
| 4-4 | Running degree | 180° or 270° (when 500～2500 μ sec) |
| 4-5 | Dead band width | 2 µsec |
| 4-6 | Operating frequency | 50-330Hz |
| 4-7 | Rotating direction | Counterclockwise (when 500～2500 µsec) |

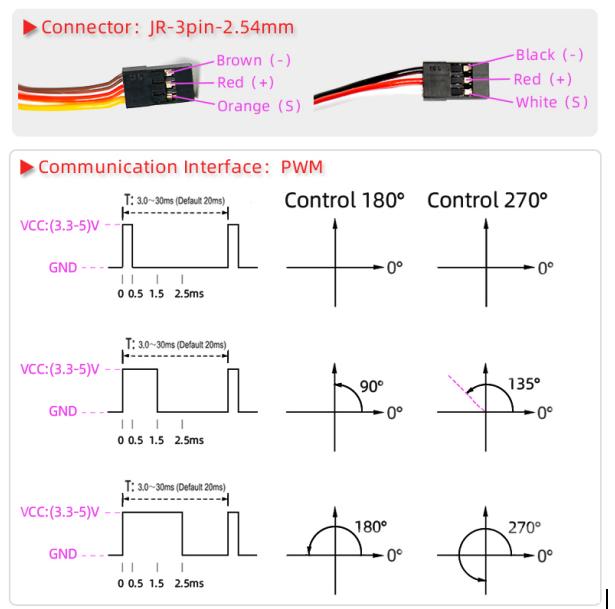

About PWM Control:
Packing and Shipping:
FAQ:
What is the brand name of this FPV Drone Accessory?
The brand name of this FPV Drone Accessory is Klesman.
2.What is the model number of this FPV Drone Accessory?
The model number of this FPV Drone Accessory is Model Number.
3.Where is this FPV Drone Accessory made?
This FPV Drone Accessory is made in China.
4.Is this FPV Drone Accessory CE certified?
Yes, this FPV Drone Accessory is CE certified.
5.What is the minimum order quantity for this FPV Drone Accessory?
The minimum order quantity for this FPV Drone Accessory is 20 pieces.
6.How much does this FPV Drone Accessory cost?
This FPV Drone Accessory costs 32 USD.
7.What are the packaging details of this FPV Drone Accessory?
The packaging details of this FPV Drone Accessory are 15cm*15cm*8cm.
8.What is the delivery time for this FPV Drone Accessory?
The delivery time for this FPV Drone Accessory is 5-8 days.
9.What are the payment terms for this FPV Drone Accessory?
The payment terms for this FPV Drone Accessory are T/T.
10.What is the supply ability of this FPV Drone Accessory?
The supply ability of this FPV Drone Accessory is 100 pieces per hour.
