Card Swiping Commercial Ev Charger Current Adjustment Scheduled Charging Functions
Price:
Confirm price based on product
MOQ:
10set
Delivery Time:
Depends on Total Quantity
Brand:
ohory electric
Product Description

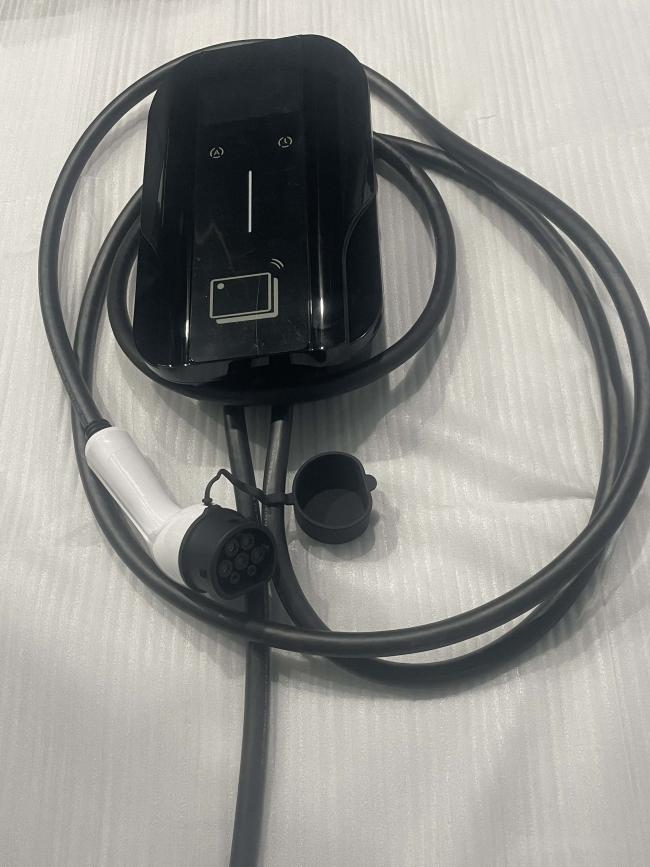

Commercial ev charger with card swiping, current adjustment and scheduled charging functions
| Product description | ||||||||||||||||||||
| Charging Connector |
IEC 62196 Type2 | SAE J1772 Type1 | GB/T 20234 | |||||||||||||||||
| Model No. | EC-203A | EC-203S | UC-203 | CC-203A | CC-203S | |||||||||||||||
| Rated voltage |
AC 230V | AC 400V | AC 240V | AC 240V | AC 220V | AC 380V | ||||||||||||||
Rated current |
32A/1phase | 32A /3phase | 40A/1phase (L1+L2) |
48A/1phase | 32A/1phase | 32A/3phase | ||||||||||||||
| Rated power |
7kW | 22kW | 9.6kW | 11.5kW | 7kW | 21kW | ||||||||||||||
| Cable | Input(TPU): 0.85m, L+N+PE diameter: 3×6mm² |
Input (TPU): 0.85m, L1+L2+L3+N+P E diameter: 5×6mm2 |
Input (TPU): NEMA14-50 plug 0.85m L1+L2+PE diameter 3*9AWG |
Input (TPU): NEMA14-50 plug 0.85m L1+L2+PE diameter: 3*8AWG |
Input (TPU): 0.85m, L+N+PE diameter: 3×6mm² |
Input (TPU): 0.85m, L1+L2+L3+N+P E diameter: 5×6mm² |
||||||||||||||
| Output (TPU):5m, L+N+PE+CP diameter: 3×6mm² |
Output (TPU) 5m, L1+L2+L3+N+P E diameter 5×6mm² |
Output (TPU):25 feet L1+L2+PE diameter: 3*9AWG |
Output (TPU):25 feet L1+L2+PE diameter: 3*8AWG |
Output (TPU):5m, L+N+PE+CP diameter 3×6mm² |
Output(TPU): 5m, L1+L2+L3+N+P E diameter 5×6mm² |
|||||||||||||||
| Protection | IP65/Short circuit &Leakage &Overvoltage &Overcurrent &Over temperature &Grounding Protection |
|||||||||||||||||||
| Features | Single phase and 3 phase are compatible |
NEMA14-50 plug | Single phase and 3 phase are compatible |
|||||||||||||||||
| Special function |
1.WIFI&4G/Ethernet/OCPP1.6J 2.Adjustable current schedule charging 3.OTA automaticly upgrade system |
|||||||||||||||||||
| House box material and Size |
Fireproof PC/UV resistance &355*218*111mm | |||||||||||||||||||
| Operating tempe |
-22F~122 F(-30℃ to+50℃) | |||||||||||||||||||
| Charging mode |
Swipe card or Mobile phone | |||||||||||||||||||
| Certificates | CE /TUV/UL/CQC | |||||||||||||||||||
