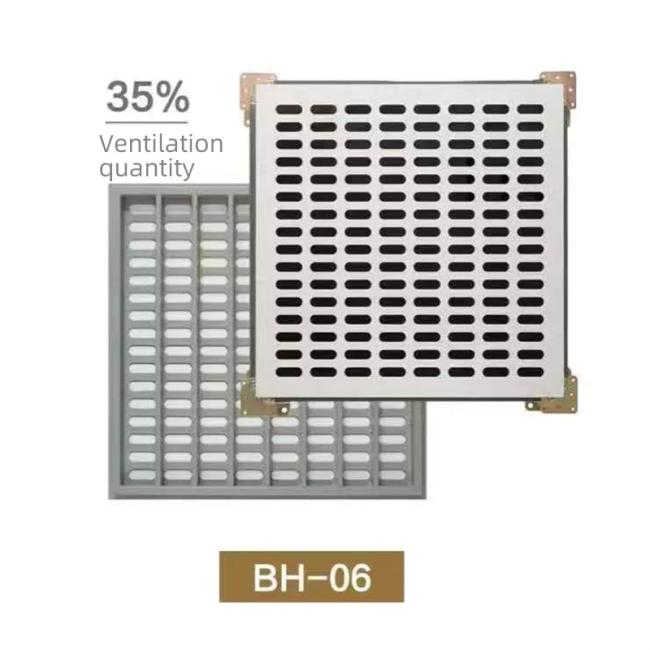

Steel Grille Acoustic Perforated Raised Floor Antistatic
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
OYANA Computer Room Equiqment Co.,Ltd is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous
supplier in demostic market and overseas market.so we would like to share with you.
OYANA Company makes a contribution for products especially on peforated steel raised floor and Calcium Sulphate raised floor.
The picture on the left shows us many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled
steel plate
Pay attention,Pay attention,we can OEM
supplier in demostic market and overseas market.so we would like to share with you.
OYANA Company makes a contribution for products especially on peforated steel raised floor and Calcium Sulphate raised floor.
The picture on the left shows us many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled
steel plate
Pay attention,Pay attention,we can OEM
Perforated flooring is produced by cutting steelpipes,welding,gringding burrs,It's a tedious process,so our worker will put more effort to complete their work to ensure that each piece of sheet can be qualited to pass
| Dimensions(mm) | Concentrated Load | Uniform Load | Impact Load | |
| FS440 | 600*600*35mm | 440 LB / 1960 N | 2148 LB / 9720 N | 150 LB/ 68KG |
| FS670 | 600*600*35mm | 670 LB / 2950 N | 2808 LB / 12500 N | 200 LB/ 90KG |
| FS800 | 600*600*35mm | 800 LB / 3560 N | 3596 LB / 11600 N | 250 LB/ 112 KG |
| FS1000 | 600*600*35mm | 1000 LB / 4450 N | 5168 LB /2300 N | 300 LB/ 135 KG |
| FS1250 | 600*600*35mm | 1250 LB / 5560 N | 7415 LB / 33000 N | 350 LB/ 158 KG |
TEST REPORT
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd
Product Name:Anti-static Raised Access Floor
Model: HDG.600*600*35mm(FS 670 )
Date: Mar.7 th ,2021
Quantity of samples: 1PS Panel + 1PS HPL
| Testing Environment |
Temperature: 25ºC |
| Relative: 45%RH |
Test result summary table for panel
| TEST ITEMS | SPECIFICATION | TEST RUSELTS | ||
1.System Resistance |
Conductive: < 1.0x106Ω | |||
| Dissipative: 1.0x106Ω - 1.0x1010Ω |
7.28X108Ω |
|||
2.Mechanical properties |
Point Load: =300N(30Kg) |
Deflection: |
Centre: =0mm |
Centre of edge =0mm |
| Permanent Deflection: |
Centre: =0mm |
Centre of edge =0mm |
||
Point Load: =3000N(300Kg) |
Deflection: |
Centre: ≤1.5mm |
Centre of edge ≤1.6mm |
|
| Permanent Deflection: |
Centre: ≤1mm |
Centre of edge ≤1mm |
||
| Uniform Distributed Load: =20000N/M2 |
Deflection: ≤0.05mm |
Permanent Deflection: ≤0.05mm |
||
| Ultimate load: | 9850N | |||
| Rolling load: 10times/10000times |
2946N/2356N | |||
| Impact load: | 4600N | |||
|
Grade:A1fl | |||
Test result summary table for Anti-static Laminate(HPL)
Product Name:Anti-static Laminate
size: HDG.600*600*1.2(mm)
| TEST ITEMS | SPECIFICATION | TEST RUSELTS |
| Surface Resistance: | 1.0x104-1.0x109Ω | 4.74X108Ω |
| Volume Resistance: | 1.0x104-1.0x109Ω | 1.98X108Ω |
| Wear Proof Property: | Ultra-high wear properties≥3000r |
3400r |
| Combustion Performance | Finishing Material: HPL≤30S Grade:FV-1 |
29.80S |
Actual installation rendering below:
