Ventilated Data Center Raised Access Computer Floor Skid Proof
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on peforated steel raised floor with intelligent adjustment for temperature control system ,It is a special equipment for colling dispatch in data center.

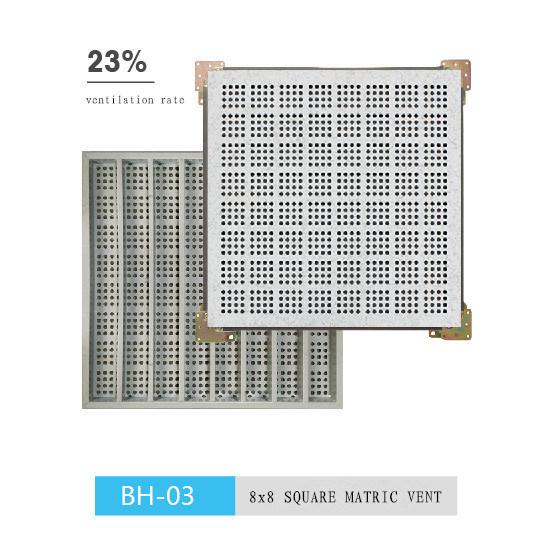

Besides many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled steel plate
Pay attention,Pay attention,we can OEM
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on peforated steel raised floor with intelligent adjustment for temperature control system ,It is a special equipment for colling dispatch in data center.
Besides many kinds of molds to produce peforated floor.Many different holes are punched on the cold-rolled steel plate
Pay attention,Pay attention,we can OEM
Prodcut Name: Raised Floor(Black edge)
Structure:

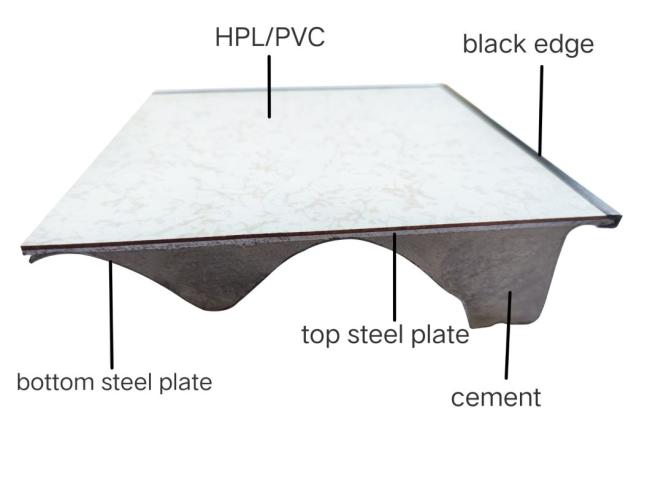

Top plate using SPCC hard rolled steel,bottom plate using ST14 steel for strecth,after automatic spot welding,The panel is infilled with cement, The surface of panel adopts resistance and anti-static HPL/PVC
Feacture:

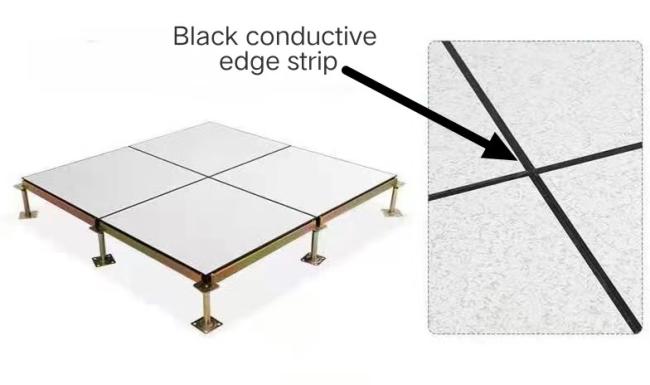

1.Black conductive edge strip around the panel
2.Conbustion permance is A1 level for based board
3.Structural stability and quicker installation
4.All steel is using epoxy resin for rust-proof of based board
5.High loading capactiy,sound-proof
Structure:
Top plate using SPCC hard rolled steel,bottom plate using ST14 steel for strecth,after automatic spot welding,The panel is infilled with cement, The surface of panel adopts resistance and anti-static HPL/PVC
Feacture:
1.Black conductive edge strip around the panel
2.Conbustion permance is A1 level for based board
3.Structural stability and quicker installation
4.All steel is using epoxy resin for rust-proof of based board
5.High loading capactiy,sound-proof
Type:OYN-670
size:600*600*35
surface with anti-static HPL 1.2mm
concentrated load ≥670lb,2950N
size:600*600*35
surface with anti-static HPL 1.2mm
concentrated load ≥670lb,2950N

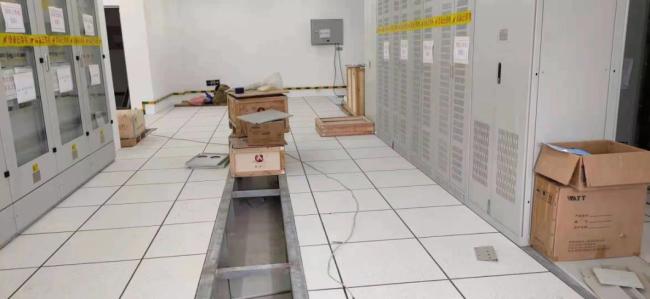

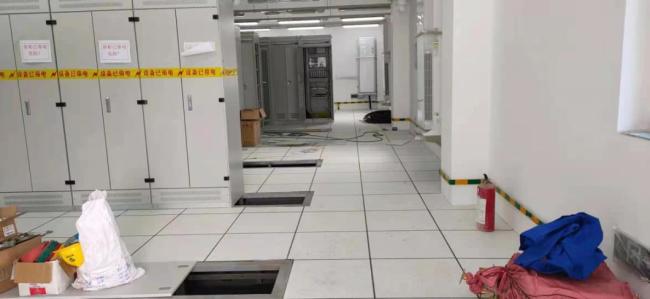

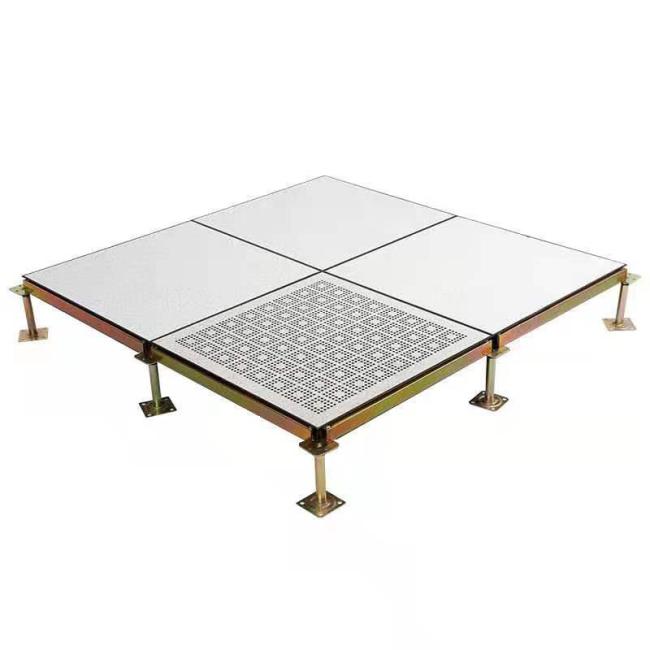

cement panel and ventilation panel are assembled together for data center
Application:
Ventilation plate has all the characteristics of cement panel. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.
Ventilation floor can be installed with cemented raised floor for data room to ajust the temperature.
Application:
Ventilation plate has all the characteristics of cement panel. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.
Ventilation floor can be installed with cemented raised floor for data room to ajust the temperature.
Characteristics:
Various materials, sizes and specifications.
Antistatic performance is outstanding.
Various pass/ventilation rate.
Stable performance, no recession, no deformation.
High strength and high bearing capacity.
Application:
Ventilation plate has all the characteristics of cement infill floor. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.
Various materials, sizes and specifications.
Antistatic performance is outstanding.
Various pass/ventilation rate.
Stable performance, no recession, no deformation.
High strength and high bearing capacity.
Application:
Ventilation plate has all the characteristics of cement infill floor. It can meet the needs of 0-85% ventilation by means of ventilation regulator. Banks, government, enterprises and institutions of high-grade computer rooms, clean rooms, purification rooms and places with high load-bearing and material requirements.
Raised Access Floor Parameters
| Dimensions(mm) | Concentrated Load | Uniform Load | Impact Load | ||
| OYN-440 | 600*600*35mm | 440 LB / 1960 N | 2148 LB / 9720 N | 150 LB/ 68KG | |
| OYN-670 | 600*600*35mm | 670 LB / 2950 N | 2808 LB / 12500 N | 200 LB/ 90KG | |
| OYN-800 | 600*600*35mm | 800 LB / 3560 N | 3596 LB / 16100 N | 250 LB/ 112 KG | |
| OYN-1000 | 600*600*35mm | 1000 LB / 4450 N | 5168 LB /23000 N | 300 LB/ 135 KG | |
| OYN-1250 | 600*600*35mm | 1250 LB / 5560 N | 7415 LB / 33000 N | 350 LB/ 158 KG |
Rsised FLOOR TEST REPORT (No:1098)
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd
Product Name:Anti-static Raised Access Floor
Model: HDG.600*600*35mm(OYN-800)
Date: Mar.7th,2022
Quantity of samples: 1PS Panel + 1PS HPL
| Testing Environment |
Temperature: 25ºC |
| Relative: 45%RH |
Test result summary table for panel
| TEST ITEMS | SPECIFICATION | TEST RUSELTS | ||
1.System Resistance |
Conductive: < 1.0x106Ω | |||
| Dissipative: 1.0x106Ω - 1.0x1010Ω |
7.28X108Ω |
|||
2.Mechanical properties |
Point Load: =300N(30Kg) |
Deflection: |
Centre: =0mm |
Centre of edge =0mm |
| Permanent Deflection: |
Centre: =0mm |
Centre of edge =0mm |
||
Point Load: =3560N(300Kg) |
Deflection: |
Centre: ≤1.5mm |
Centre of edge ≤1.6mm |
|
| Permanent Deflection: |
Centre: ≤1mm |
Centre of edge ≤1mm |
||
| Uniform Distributed Load: =16100N/M2 |
Deflection: ≤0.05mm |
Permanent Deflection: ≤0.05mm |
||
| Ultimate load: | 11000N | |||
| Rolling load: 10times/10000times |
3560N/2670N | |||
|
3.combustion performance
|
Grade:A1 | |||
Test result summary table for Anti-static Laminate(HPL)
Product Name:Anti-static Laminate
size: HDG.600*600*1.2(mm)
Date: Nov.17th,2022
| TEST ITEMS | SPECIFICATION | TEST RUSELTS |
| Surface Resistance: | 1.0x104-1.0x109Ω | 4.74X108Ω |
| Volume Resistance: | 1.0x104-1.0x109Ω | 1.98X108Ω |
| Wear Proof Property: | Ultra-high wear properties≥3000r |
3400r |
| Combustion Performance | Finishing Material: HPL≤30S Grade:FV-1 |
29.80S |
