OA Network Building Waterproof Anti Static Raised Access Floor Flooring
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on OA raised floor used in the intelligent modern building and meeting rooms,5A office buildings
Pay attention,Pay attention,we can OEM
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on OA raised floor used in the intelligent modern building and meeting rooms,5A office buildings
Pay attention,Pay attention,we can OEM
Characteristics:
>>>Full steel structure,filling with high-quality cement
>>>Adopt multiple-spot welding technology to weld evenly,so not only the structural force is strong,but also the performance life for the floor can be prolonged 10% more
>>>The surface is treated with epoxy powder coating,so the corrosion resistance performance is higher
>>>Full steel structure,filling with high-quality cement
>>>Adopt multiple-spot welding technology to weld evenly,so not only the structural force is strong,but also the performance life for the floor can be prolonged 10% more
>>>The surface is treated with epoxy powder coating,so the corrosion resistance performance is higher
Type:OYN-670
Size:600*600*33mm
concentrated load ≥670 lb, 2950 N
>>>Supports

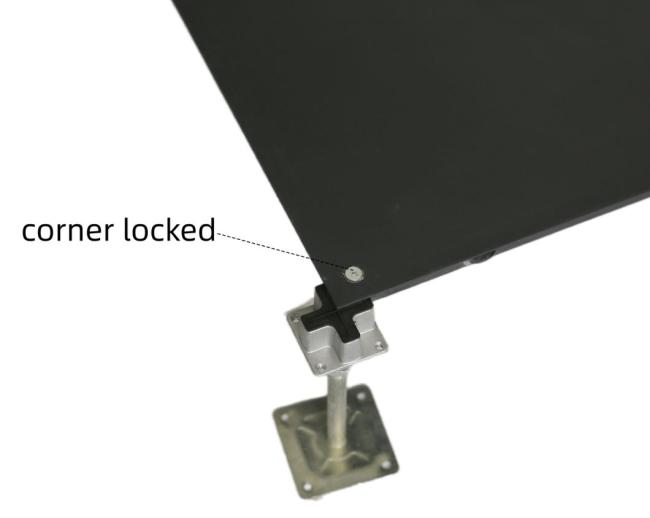

provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel
>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system
>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks
>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair
Size:600*600*33mm
concentrated load ≥670 lb, 2950 N
>>>Supports
provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel
>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system
>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks
>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair
>>>This flooring is an upgrate from the conventional OA flooring

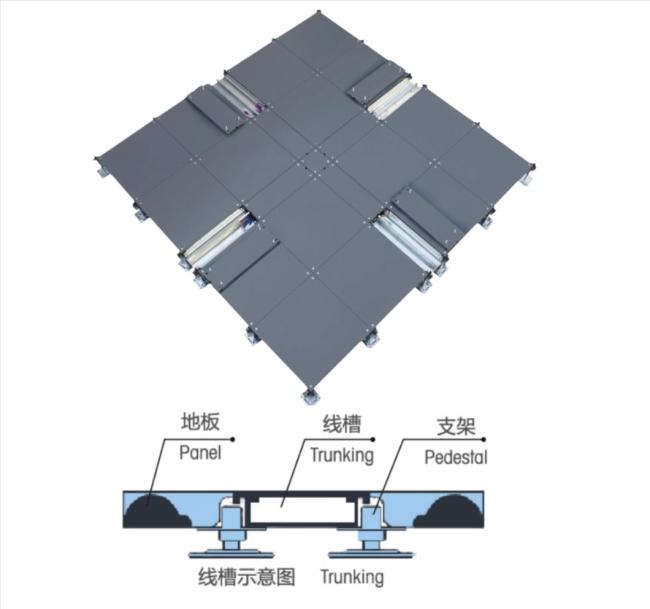

>>>The wireway can be assembeled any places in the whole flooring system. large wires and cables are properly placed inside and check conveniently
>>>The wireway can be assembeled any places in the whole flooring system. large wires and cables are properly placed inside and check conveniently
OA raised floor parameters
| Type | Dimensions(mm) | Concentrated Load | Uniform Load | Impact Load |
| OYN440 | 600*600*33mm | 440 LB / 1960 N | 2148 LB / 9720 N | 100 LB/ 45 KG |
| OYN670 | 600*600*33mm | 670 LB / 2950 N | 2808 LB / 12500 N | 150 LB/ 68 KG |
| OYN800 | 600*600*33mm | 800 LB / 3560 N | 3596 LB / 16100N | 180LB/ 81 KG |
| OYN1000 | 600*600*33mm | 1000LB / 4450 N | 5215 LB / 23000 N | 210LB/ 95KG |
OA Rsised FLOOR TEST REPORT (No:852)
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd
Product Name:Anti-static Raised Access Floor
Model: HDG.600*600*35mm(OYN-670)
Date: Mar.7th,2022
Quantity of samples: 1PS Panel + 1PS HPL
| Testing Environment |
Temperature: 25ºC |
| Relative: 45%RH |
Test result summary table for panel
| TEST ITEMS | SPECIFICATION | TEST RUSELTS | |||
2.Mechanical properties |
Point Load: =300N(30Kg) |
Deflection: |
Centre: =0mm | Centre of edge: =0mm | |
| Permanent Deflection: |
Centre: =0mm | Centre of edge: =0mm | |||
Point Load: =2950N(300Kg) |
Deflection: |
Centre: ≤1.5mm | Centre of edge: ≤1.6mm | ||
| Permanent Deflection: |
Centre: ≤1.5mm | Centre of edge: ≤1.6mm | |||
| Uniform Distributed Load: =12500N/M2 |
Deflection:≤0.05mm | Permanent Deflection:≤0.05mm | |||
| Ultimate load: | 8850N | ||||
| Rolling load: 10times/10000times |
2946N/2356N | ||||
|
3.combustion performance
|
Grade:A1 | ||||
