School Uses Anti Static Modular Raised Flooring Fireproof
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Structure:
The upper steel plate is SPCC cold-rolled steel,The lower steel plate is ST14 stretch steel plate. after automatic spot welding,non-phosphorus rust prevention technology and epoxy resin coated.The panel is infilled with cement.Each panel has 4 corner lock holes.
Feature:
---All stell structure , excellent loading capacity and fire-resistance.
---Adjustable height is 35mm-200mm,50mm is convenient for outlet box to check and replace network lline or cable line
---Easy to install .Long life of usage.soundproof
---PVC or carpet can be laied over the pane
---Dimension accuracy with great interchangeability
Application:
OA600 Net Floor is widely used in 5A Intelligent building and office building .Old office buliding can be remoulding and upgrading with lowest cost.
The upper steel plate is SPCC cold-rolled steel,The lower steel plate is ST14 stretch steel plate. after automatic spot welding,non-phosphorus rust prevention technology and epoxy resin coated.The panel is infilled with cement.Each panel has 4 corner lock holes.
Feature:
---All stell structure , excellent loading capacity and fire-resistance.
---Adjustable height is 35mm-200mm,50mm is convenient for outlet box to check and replace network lline or cable line
---Easy to install .Long life of usage.soundproof
---PVC or carpet can be laied over the pane
---Dimension accuracy with great interchangeability
Application:
OA600 Net Floor is widely used in 5A Intelligent building and office building .Old office buliding can be remoulding and upgrading with lowest cost.
Type:OYN-800
Size:600*600*33mm
concentrated load ≥800 lb,3560 N
>>>Supports
provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel
>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system
>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks
>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair
Size:600*600*33mm
concentrated load ≥800 lb,3560 N
>>>Supports
provided with corner locks and the adjustable four-corner supports,as well as one bracket supports four panel
>>>Features
The holes of corner locks on the molded floor can essure the stableness of flooring system
>>>Configuration
The final flooring can employ square carpets,rolled carpets or PVC veneers and solid wood blocks
>>>Permance
Strong in carrying capacity
good in fireproof and corrosion resistance
compression molding forming
good in interchangeability,easy to assembel and fast to repair
OA raised floor parameters
| Type | Dimensions(mm) | Concentrated Load | Uniform Load | Impact Load |
| OYN440 | 600*600*33mm | 440 LB / 1960 N | 2148 LB / 9720 N | 100 LB/ 45 KG |
| OYN670 | 600*600*33mm | 670 LB / 2950 N | 2808 LB / 12500 N | 150 LB/ 68 KG |
| OYN800 | 600*600*33mm | 800 LB / 3560 N | 3596 LB / 16100N | 180LB/ 81 KG |
| OYN1000 | 600*600*33mm | 1000LB / 4450 N | 5215 LB / 23000 N | 210LB/ 95KG |
OA Rsised FLOOR TEST REPORT (No:852)
SUBJECT:
Testing of Anti-static Raised Floor by OUYANA Co.,Ltd
Product Name:Anti-static Raised Access Floor
Model: HDG.600*600*35mm(OYN-670)
Date: Mar.7th,2022
Quantity of samples: 1PS Panel + 1PS HPL
| Testing Environment |
Temperature: 25ºC |
| Relative: 45%RH |
Test result summary table for panel
| TEST ITEMS | SPECIFICATION | TEST RUSELTS | |||
2.Mechanical properties |
Point Load: =300N(30Kg) |
Deflection: |
Centre: =0mm | Centre of edge: =0mm | |
| Permanent Deflection: |
Centre: =0mm | Centre of edge: =0mm | |||
Point Load: =2950N(300Kg) |
Deflection: |
Centre: ≤1.5mm | Centre of edge: ≤1.6mm | ||
| Permanent Deflection: |
Centre: ≤1.5mm | Centre of edge: ≤1.6mm | |||
| Uniform Distributed Load: =12500N/M2 |
Deflection:≤0.05mm | Permanent Deflection:≤0.05mm | |||
| Ultimate load: | 8850N | ||||
| Rolling load: 10times/10000times |
2946N/2356N | ||||
|
3.combustion performance
|
Grade:A1 | ||||

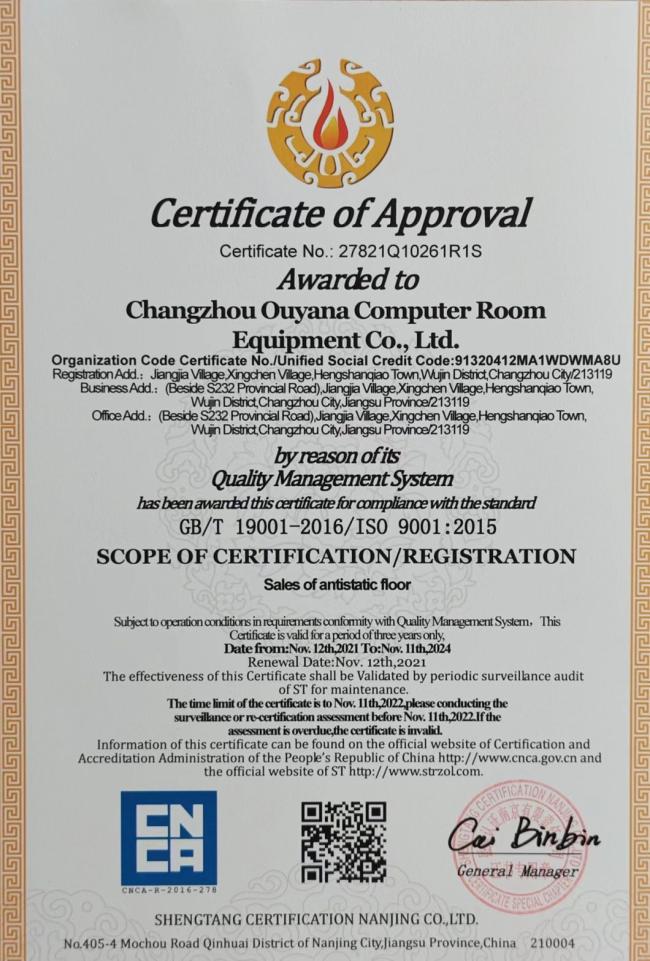

OYANA Computer Room Equipment Co.,Ltd is mainly producing OA network raised floor,Anti-static raised access floor. Calcium Sulphate Access floor. we have got ISO9001 , ISO14001 certificate.
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on OA raised floor used in the intelligent modern building and meeting rooms,5A office buildings
Pay attention,Pay attention,we can OEM
It is a professional raised floor factory,BUT we are different from other factories .we are always focus on developing new products for our customers.Through 10 years,OYANA company has became a good reputation and famous supplier in foreign market.so we would like to share with you.
OYANA Company makes a contribution for products especially on OA raised floor used in the intelligent modern building and meeting rooms,5A office buildings
Pay attention,Pay attention,we can OEM
