Stainless Steel Metal Rope Mesh 1.2mm - 4.0mm For Amusement Rides
Excellent Flexibility Stainless Steel Metal Rope Mesh For Amusement Rides Anti
Metal rope mesh product introduction
GTW-Steel cable mesh for architectural(Steel sleeve rope mesh)is made by stainless steel ropewoven and extruded steel sleeve, the diameter of wire rope with 1.0, 1.2, 1.5, 2, 3, 4.0mm, wire rope structure 7 * 7,7 * 19 , 1 * 19, the material has 304,316,316 L, then we can also provide hot galvanizing wire mesh products. Steel sleeve material mainly adopts the stainless steel sleeve,there are other aluminum sleeve, copper, tin plated copper sleeve for the customer to choose.
1>Material: SS 304, 304L, 316, 316L
2>Wire structure: 7*7, 7*19
3>Wire diameter: 1.2mm-3.2mm
4>Mesh opening size: 20*20-120*120mm
5>Application: Wire Rope Mesh can be safely contain any species on land, in the air indoors or out.
For the construction of Animal Enclosure, Animal Cage, Aviary mesh, Bird Cage and Bird Netting.
Rope Constructin |
Rope Diameter |
Opening Size |
Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |

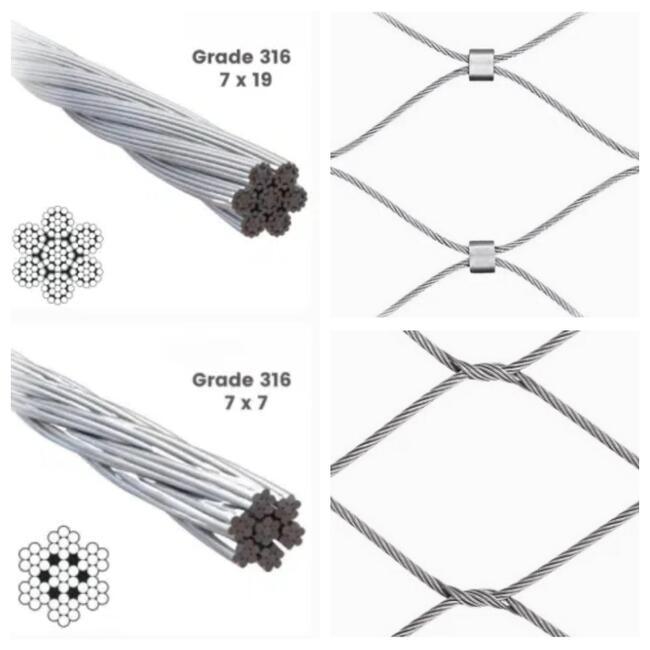

Different types
Features
Stainless steel wire rope mesh, which is woven from high quality stainless steel wire rope. It has
Great advantage over ordinary wire mesh:
1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests.
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.

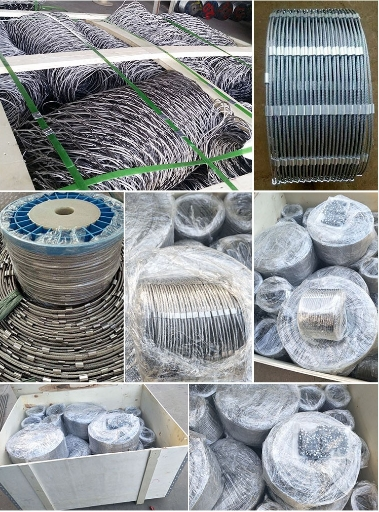

Packing and Shipping
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

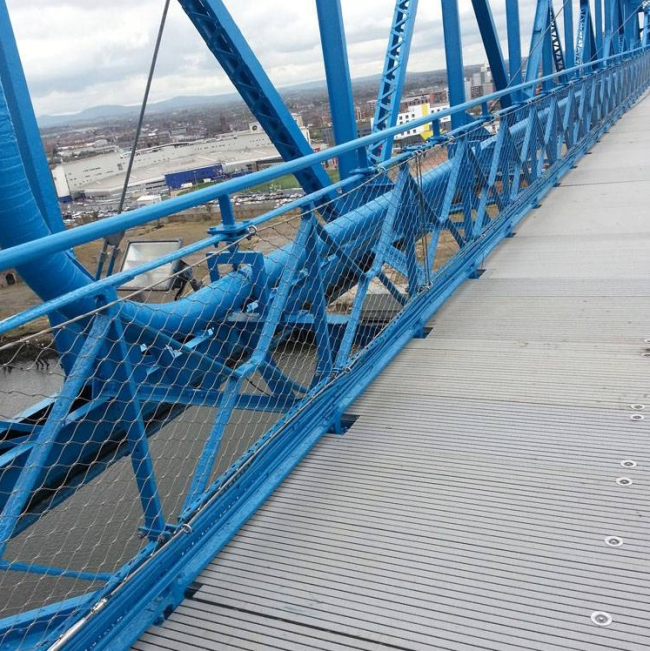

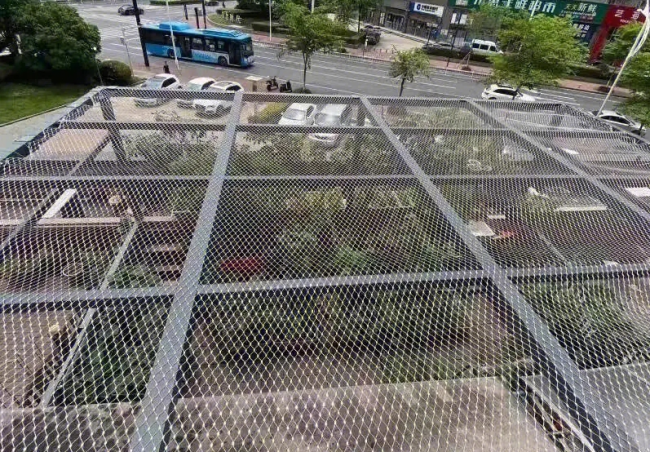

Applications
