304 X Tend Stainless Steel Cable Mesh For Anti Falling 30x30 MM
304 X Tend Stainless Steel Metal Rope Mesh For Anti Falling 30x30 MM
Product Description :
The Stainless Steel cable mesh For Bridge Protection are hand-made from the stainless steel wire rope, cable Mesh Description is custom manufactured to in widths and lengths to suit the balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
About Stainless steel rope mesh
Materials:304,304L,316,316L stainless steel wire rope

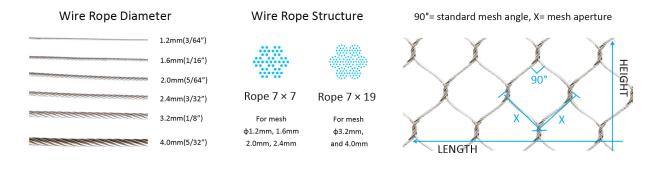

Wire rope structure:7*7 and 7*19 high quality stainless steel wire rope
Rope(mm):1.2, 1.5, 2.0, 2.5, 3.0, 4.0
Mesh:2.5*2.5, 3*3, 3.8*3.8, 4*4, 4.5*4.5, 5*5, 5.5*5.5, 6*6, 7*7, 7.6*7.6, 8*8, 10*10, 15*15, 30*30 etc. customized
Rope Constructin |
Rope Diameter |
Opening Size |
Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
Different types
Features
Stainless steel wire rope mesh, which is woven from high quality stainless steel wire rope. It has
Great advantage over ordinary wire mesh:
1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests.
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.
Packing and Shipping
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
Applications
]
