Anti Corrosive Flexibility SS Rope Mesh 25mm-300mm Hole For Amusement Rides
Anti Corrosive Flexibility Ss metal Rope Mesh For Amusement Rides
Stainless steel rope mesh ,also called SS cable mesh, made form high quality stainless steel wire rope, is pliable, transparent grid structure which is made of stainless steel rope with multifunctional and durable performance. Wire Rope Mesh has the skin-like characteristics of a diaphragm which can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-type, cylindrical, or spherical shapes. As part of our extensive, easy-to-assemble structural wire rope meshes, it is ideal for flexible, intelligent solutions that address a vast variety of requirements.
Material: ss304 ss316 ss316L
Mesh type: 1.Woven 2. Ferrule mesh
cable structures:7 x7, 7 x19
Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm etc.
Mesh aperture: 25*25mm -300*300mm etc.
Height: general 0.5-30meter or customized.
Length: general 0.5-30meter or customized.
Shape: There are irregular shape, triangle parallelogram trapezoid etc.
| Cable diameter | mesh opening | Application |
| 2.0mm | 200*200mm | Architecture outdoor mesh |
| 2.0mm | 40*40mm | Playground mesh,stadium protection mesh |
| 2.0mm | 50*50mm | Playground mesh,decorative indoor mesh |
| 2.0mm | 60*60mm | Architecture outdoor mesh,Playground mesh |
| 2.0mm | 80*80mm | decorative indoor mesh,Aviary mesh |
| 2.0mm | 100*100mm | airport protection mesh |
| 2.0mm | 120*120mm | suspended ceiling mesh |
| 2.0mm | 140*140mm | overhead coverage mesh |
| 1.5mm | 60*60mm | Playground mesh,Stairs Fence |
| 1.5mm | 40*40mm | Playground mesh,aviary mesh, |
| Stairs Fence,Architecture mesh, | ||
| Animal enclosure | ||
| 1.5mm | 100*100mm | Architecture outdoor mesh, |
| Pool protective net,Stairs Net | ||
| 1.5mm | 50*50mm | Stairs Fence |
| 1.5mm | 30*30mm | shading canopy mesh,Tower Protection Net |
| 1.5mm | 25*25mm | Aviary mesh |
| 1.0mm | 20*20mm | Aviary mesh |
| 1.0mm | 30*30mm | Aviary mesh |
| 1.0mm | 40*40mm | Playground mesh,protection mesh |
| 2.5mm | 50*50mm | Animal enclosure |
| 3.0mm | 100*100mm | safety net,overhead coverage mesh |
| 3.0mm | 40*40mm | Playground mesh |
| 3.0mm | 50*50mm | barrier mesh,decorative indoor mesh |
| 3.0mm | 80*80mm | Bridge safety net |
specification
Advantage:
| 1.The netting is clipped to the cable, |
| 2. The mesh size and diameter can be modified |
| 3. It can be made to customer orders and statically tested – especially suitable for facades |
| 4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. |
| 5. Anti-corrosive, resist the rust, can be repeated use. |
| 6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI) |
| 7.This product can bear the heavy snow and the gale very much. |
| 8. without toxic material, safety, environmental protection. |

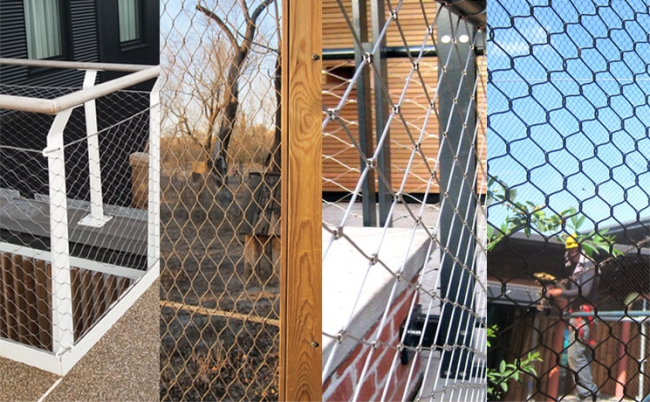

Applications

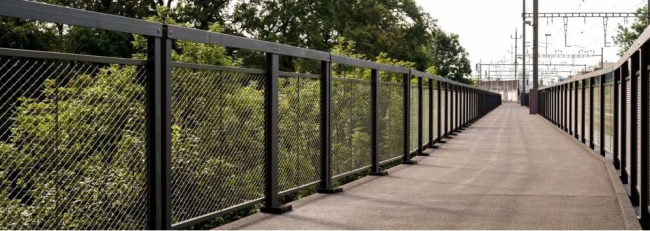

1.Balustrade of stair, balcony - can make the stair grand, beautiful and safer.
2. Cable Mesh - Excellent Solution to Safety.
3. Safety Net - Structural Measure to Prevent Suicide.
4. Helipad Safety Net - Modular Heliport Webbing.
5. Cable Zoo Mesh – protect animals and visitors.
6.Aviary Netting - Lightweight, Durable and Long Lasting.
7.Green Facade - Cable System for Most Climbing Plants.
