Ferrule Diamond Fencing Wire Mesh Flexible SUS304 SUS316 For Stair Railing
Ferrule Diamond Flexible Stainless Steel Balustrade Cable mesh for Stair Railing
Product Description
Stainless steel cable netting. also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.
Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.
MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °
The rope mesh is hand-made from the stainless steel wire rope, there are two types.
Two types of weaving rope mesh
1.Ferrule rope mesh
2.Knotted rope mesh
The difference between them is the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings. And ferrules are made of the same material as the rope wire. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferrule rope mesh is very flexible, and its width and length can be modified
Product specification
| Flexible Stainless Steel Cable Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal , Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy | |
Features:
Produced out of .0045 gauge stainless steel
Heavy Density
Each roll is 1/8" in diameter and 500 ft in length
Strength under load
Long life
Max temperature of 2300ºF

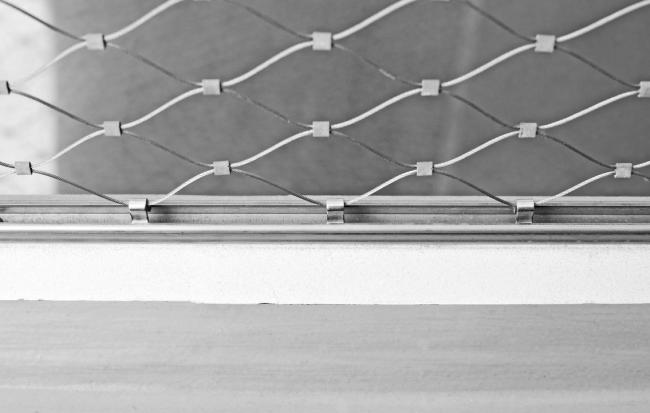

Detailed Photos
Application
Cable rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as Slope Protection Rope Mesh, Zoo Mesh, Green Wall Rope Mesh, Decoration Mesh, Balustrade Mesh, Safety rope mesh, Suspension Bridge Railing Mesh, Anti-theft Backpack Protector.
