Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified
Hand Woven Stainless Steel Zoo Animal Enclosure Flexible SGS Certified
Product Description
The rope mesh material is Stainless steel 304 316 304L 316L.
Wire structure common size: 7x7-the diameter is < 3mm,7x19>3mm.
Stainless steel rope mesh specification
| Wire rope diameter | 1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.2mm,4.0mm |
| Mesh hole | 3x3cm,4x4cm,5x5cm,6x6cm,7x7cm,8x8cm etc. |
Don't understand how to mark the mesh size,let us use one drawing mark it. Common opening angle is 600,900.
1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |

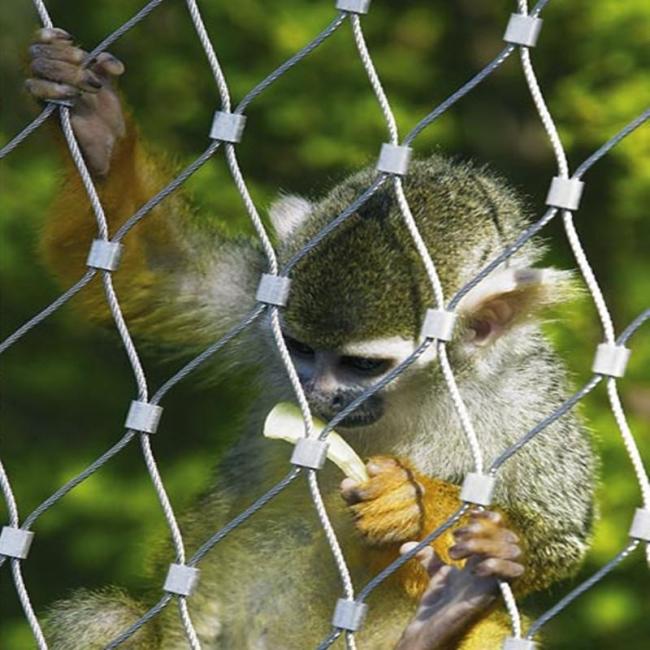

Recommended Monkey Enclosure Zoo Wire Mesh:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/32" (2.4MM) | 2.5" x 2.5" | 920 LBS |
| SS304/316/316L | 3/32" (2.4MM) | 2" x 2" | 920 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 1/8" (3.2MM) | 2" x 2" | 1600 LBS |
| SS304/316/316L | 1/8" (3.2MM) | 3" x 3" | 1600 LBS |
Stainless steel zoo wire is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.
|
Rope Constructin |
Rope Diameter |
Opening Size |
Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
Stainless steel rope mesh feature:
1. Good toughness,anti climb, shock resistance, not easy to deform,excellent cushioning.
2. Long service time,anti rust,structure strong,no need to maintain.
3. Beautiful, lucency, environment friendly.
4. Easy to install,light weight.
