Stainless Steel Black Oxide Cable Mesh X-tend Ferruled / Knotted Cable Mesh SGS approved
Price:
Price negotiable
MOQ:
10m2
Delivery Time:
5-8 days
Brand:
CHANT
Product Description
Stainless Steel Black Oxide Coated X-tend Ferruled / Knotted Cable Mesh
Product Description
Rope Mesh material almost AISI 304 and 316, the materials meet the requirements of international standards.
can be used more than 30 years.
The rope wire, hole size and mesh dimension are always can be customized.
There are some common specifications for your reference.
AISI304 Stainless steel apply to most of the area, the 316 material mainly used for wet environment, like seaside.
Stainless steel wire rope mesh:
| Flexible Stainless Steel Cable Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal , Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy | |
| Type | Breaking load ( KN ) | Wire Dia.(MM) | Mesh Opening (MM) |
| 7 X 19 | 7.38 | 3.0 | 120x120,102x102, 90x90,76x76,51x51 |
| 7 x 7 | 4.18 | 2.5 | 102x102, 90x90,76x76,51x51 |
| 7 x 7 | 3.17 | 2 | 76x76,60x60,51x51,38x38 |
| 7 x 7 | 2.17 | 1.5 | 76x76,51x51,38x38, 30x30,25.4x25.4 |
| 7 x 7 | 1.22 | 1.2 | 51x51, 38x38,30x30 25.4x25.4,20x20 |

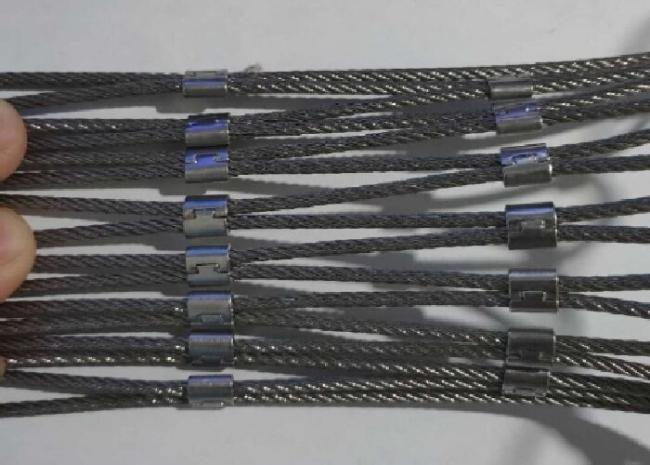

Details photo:
Packing and shipping
Wrap it in plastic first,and then put in cartons or wooden cases
Our certification
CE certification and patent for utility models
