Shock Resistance Anti Climb Wire Mesh Stainless Steel Fencing Mesh
Anti Climb Shock Resistance Stainless Steel Wire Rope Mesh For Fencing
1:About Stainless steel wire rope mesh
Stainless steel rope mesh has unique characteristics that allow design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facades, safety nettings and green wall systems.
Material: Stainless Steel 304, 304L, 316, 316L.
Specification of stainless steel wire rope mesh
| material | stainelss steel 304 316 316L etc. |
| wire diameter | 1.0 - 3.0mm |
| feature | flexible, high-Strength |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 4x30m or according to clients' requirements |
| structure | 7*7 or 7*19 |
| surface | flat and bright |

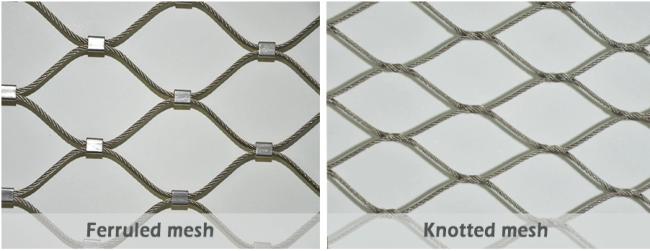

2:Two types of weaving rope mesh

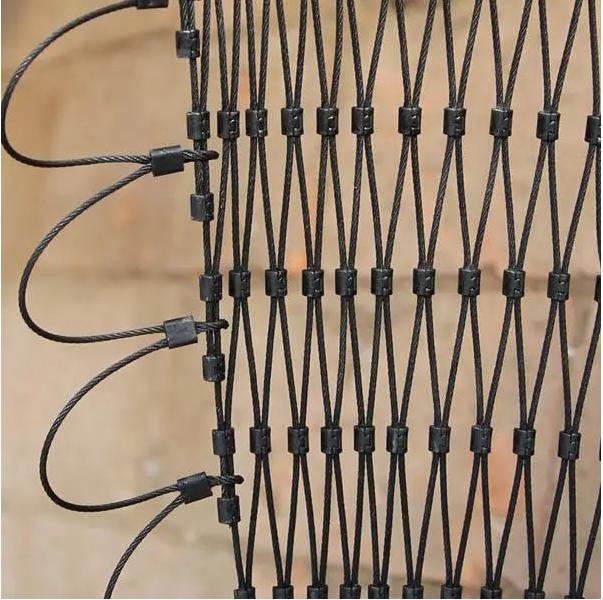

1.Ferrule rope mesh
2.Knotted rope mesh

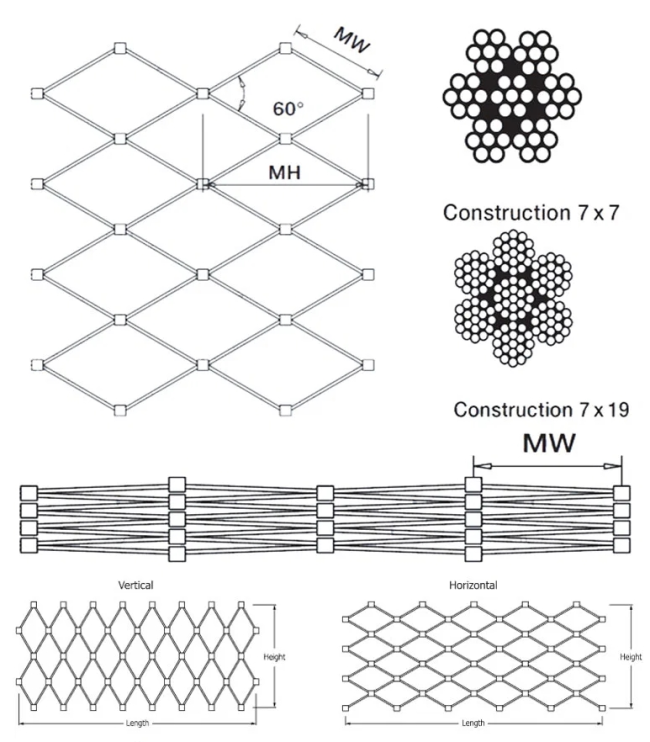

The difference between them is the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings. And ferrules are made of the same material as the rope wire. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferrule rope mesh is very flexible, and its width and length can be modified
Rope Constructin |
Rope Diameter |
Opening Size |
Breaking Force | ||
| Inch | mm | Inch | mm | KN | |
| 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
3:Produt features:
Smooth surface,unique lines,the overall structure strong,generous appearance.Good toughness,strong clmbing ability,impact resistance,it is not easy damaged by outside force impact deformation,has excellent buffer.Product good transport installation,light connect fully,use long time,can and blends into the surrounding enviironment,hav played a very good decorative and protective effect.
3:Application:

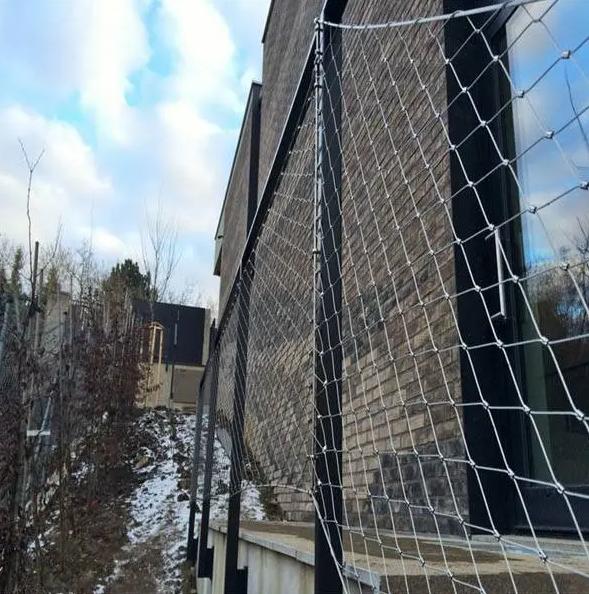

Zoo mesh: It's widely used as the safety fence in the zoo,animal cage,aviary mesh, bird cage.

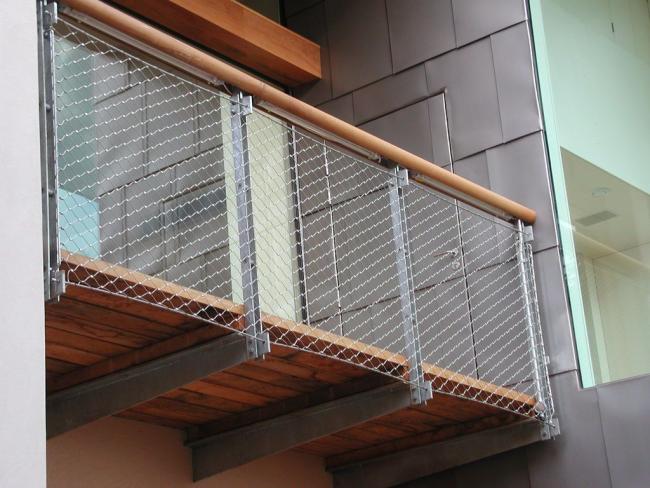

Balustrade mesh,railing mesh,plant climbing wall,architectural mesh,
Falling prevention mesh,staircase protective mesh.
4: Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
