Stainless Steel Decorative Wire Mesh Woven Curtain Wall Facade CE ISO9000 Approved
Stainless Steel Decorative Wire Mesh Woven Curtain Wall Facade CE / ISO9000 Approved
Product Description

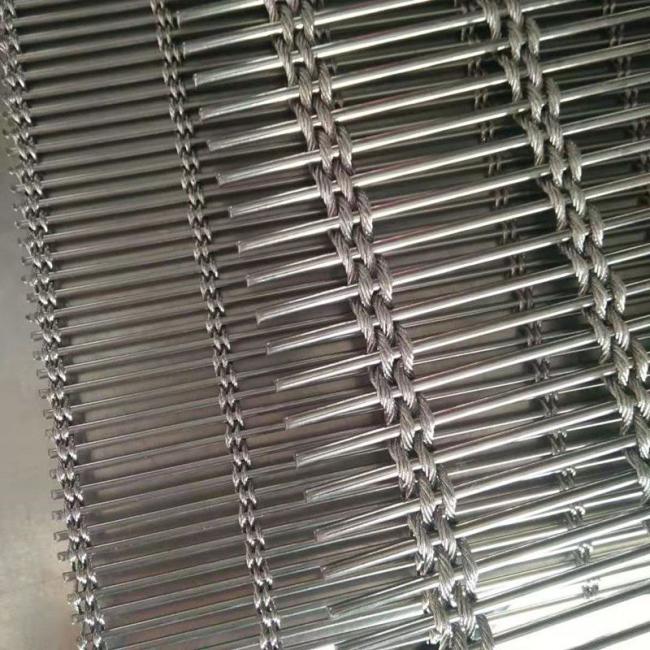

Stainless steel decorative mesh is made of steel wires warp and steel rod, a special stainless steel mesh. This screen is desinged for architectural applications and high strength filtration, which is distinguished by their longevity, striking aesthetics and high grade of flexibility.
Feature: decorative mesh has non combustibility, high strength, more stronger, easy to maintain, strong functional, vivid for efficiency of decoration, and good protection for construction .
Materials : stainless steel is more popular, aluminum, brass wire and copper wire,
phosphor bronze, and other materials can also be customized.
Vertical wire dia:0.5-2.5mm
Horizontal wire dia:1.5~8mm
Main parts: cable mesh , cable rod, cable pitch, rod pitch.
Decorative Cable Mesh Product Specification
| Design | Open area | Cable wire dia. | Cable pitch | Bar dia. | Bar pitch | Thickness | Weight |
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| 7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |
| 8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6kg/m2 |
| 9 | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2kg/m2 |
| 10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |
| 11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm | 11.2kg/m2 |
| 12 | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm | 11.8kg/m2 |
![]()
Decorative Cable Mesh Product Application

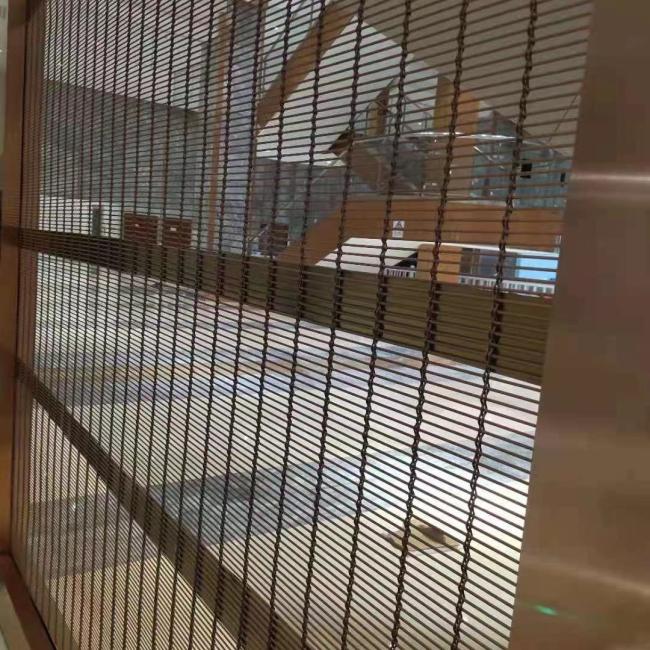

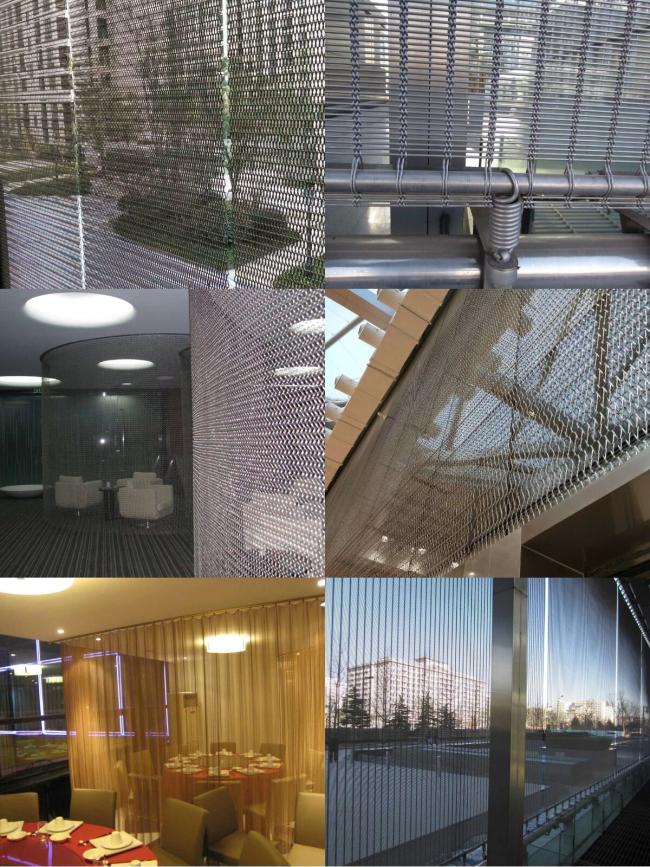

Cable mesh products are widely used in interior and exterior decorations.
such as hotel, high buildings, elevators, luxury office buildings,
grand ballroom, business hall and other buildings.
1. Windows screen; 2. Space divider; 3. Mesh curtains; 4. Wall decoration;
5. Ceiling decoration; 6. Handrail balustrade; 7. Sunshade; 8. Facade cladding;
9. Elevator cabins screen; 10. Shop-exhibition stands; 11. Security door ;
12. Partition and isolation screens; 13.Glass laminated wire; 14.Elevator cab mesh
Decorative Cable Mesh Product Features
1. Fireproof: This kind of mesh cloth is not like the cloth, it is nonflammable.High-strength
2. Easy to cleaning: You just use a piece of rag to wipe it when metal cloth aredirty. Strong functional
3. The installation is easy and fast and it has chic elegant appearance
4. The products are durable, luxuriant and high-grade, it reflects the unlimited creativity and artistic aesthetic.
5. Popular and excited by the architects and designers all over the world.
6. Variety of openings and sizes;
7. Unique design and appearance; Architecturally inspired, aesthetic enjoyment.
Application
The decoration for large-scale applications:
Widely used in building facades, partition, ceiling, for shading, balcony and corridor, rolling shutter, stair channel, and airport station, Guesthouse and Hotel, museum, opera, concert hall, office building, exhibition hall, shopping malls, etc, which are for interior and exterior decoration of high-end places.
