1.0X1.0X0.5m Welded Gabion Basket Wire Stone Cage 2X1X1m For Military
1.0X1.0X0.5m Welded Gabion Basket Wire Stone Cage 2X1X1m For Military
Product Description

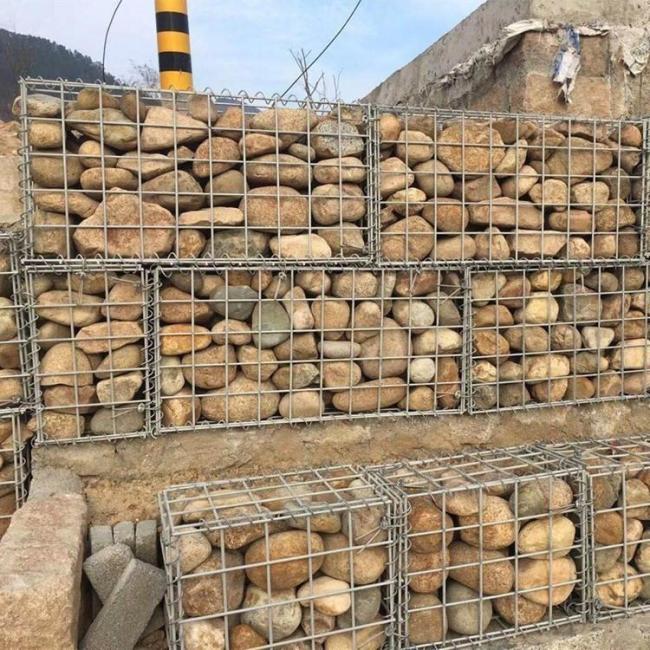

Welded Gabion is high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.
|
Nominal Box sizes (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
| 1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 | |
| 1.5x1.0x0.5 | 0 | 0.75 | |
| 1.5x1.0x1.0 | 0 | 1.50 | |
| 2.0x1.0x0.5 | 1 | 1.00 | |
| 2.0x1.0x1.0 | 1 | 2.00 | |
| 3.0x1.0x0.5 | 2 | 1.50 | |
| 3.0x1.0x1.0 | 2 | 3.00 | |
| 4.0x1.0x0.5 | 3 | 2.00 | |
| 4.0x1.0x1.0 | 3 | 4.00 |
Packing details:
1) Outside with plastic film
2) In bundle
3) As per customer's special request
Features:
1. Blends easily and harmoniously with the natural surroundings.
2. Low cost
3. Good resistance to natural forces
4. Can withstand unpredictable movement or settlement without loss of stability
5. Permeable
6. Simple and fast installation
7. Quality finish and appearance
8. Quick and cheap to install
9. Easy to vegetate
Application:
1. Retaining wall structures
2. River and canal training
3. Erosion and scour protection; roadway protection; bridge protection
4. Coastal embankment works
5. Architectural cladding for walls and buildings
6. Freestanding walls, noise and environmental barriers
7. Land spacing gabions
8. Deco-rock walls.
