Red Color PPGI PPGL DX51D Pre Painted Galvanized Iron Coil
Price:
US$560-US$660
MOQ:
3 ton
Delivery Time:
10-15 working days after receiveing advance payment
Brand:
PUXIANG
Product Description

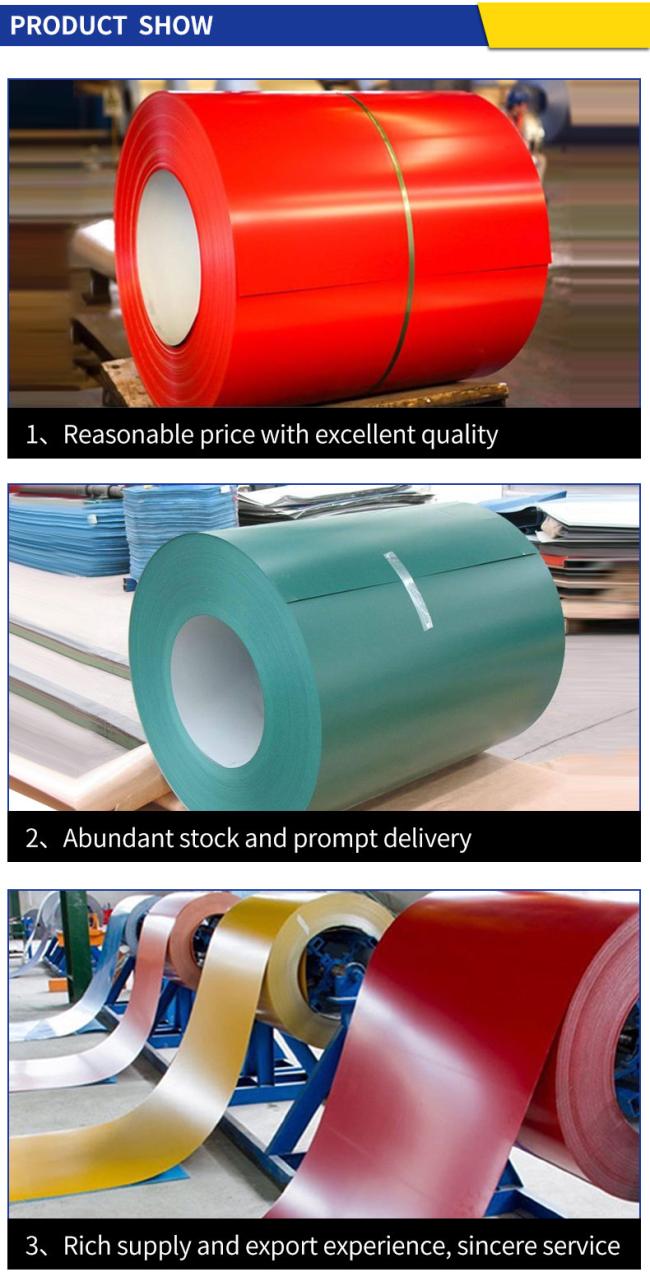

Pre-Painted Galvanized Iron Coil, PPGI Coil
PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc. Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.
| Item | PPGI steel coil | PPGL steel coil |
| Standard | GB/T-12754 | GB/T-12754 |
| JIS G 3312 | JIS G 3312 | |
| EN 10169 | EN 10169 | |
| ASTM A 792 | ASTM A 792 | |
| Grade | SGCC,SGCD,SGCE | |
| DX51D,DX52D,DX53D,DX54D,DX56D | ||
| S220GD,S250GD,S280GD,S300GD,S320GD,S350GD,S390GD,S420GD, S450GD,S550GD | ||
| DC01,DC03,DC04,Q195, Q235 , CSA, CSB | ||
| Thickness | 0.12-2.0 mm (±0.05 mm) | 0.12-2.0 mm (±0.05 mm) |
| Width | 30-1500 mm (±2 mm) | 30-1500 mm (±2 mm) |
| Zinc/Aluzinc coating | Zn 40 g/sm-275 g/sm | Alu-zinc 40-150 g/sm |
| Coil weight | 3-5 tons or As your requirement. | |
| Painting | prime : 5 μm | prime : 5 μm |
| top coating : 7–20 μm | top coating : 7–20 μm | |
| Back coating | 7 –15 μm | 7 –15 μm |

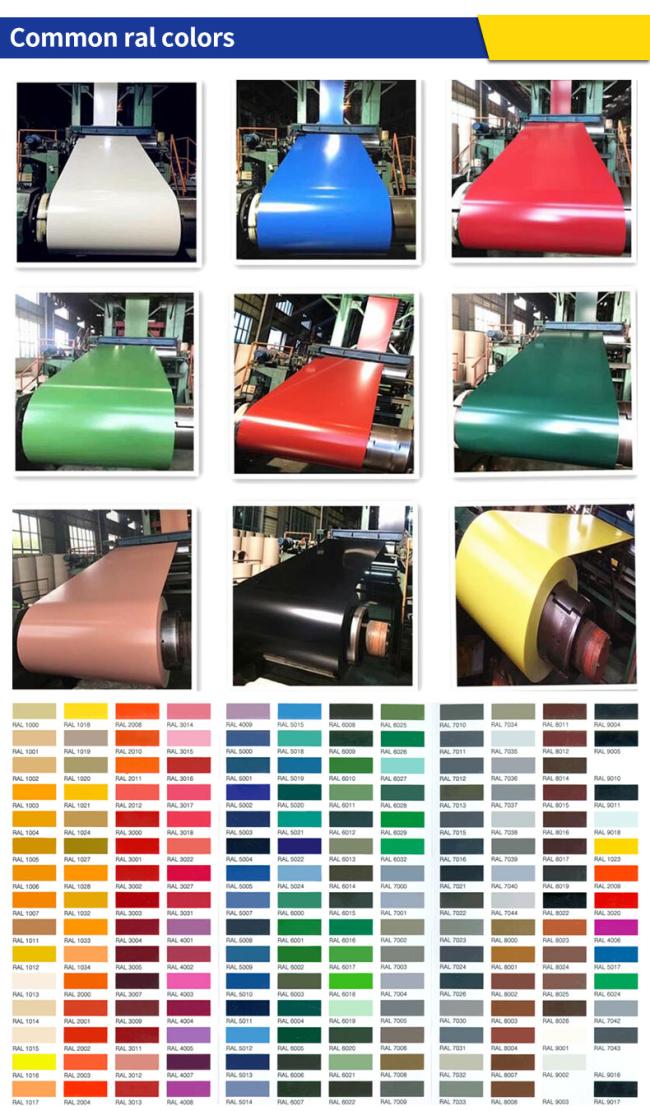

| Color | As RAL or your requirement. | |
| Surface Treatment | With plastic film , Chromated, Wrinkle, Matt, Decorate, Sand surface, Highlight. | |
| Package | Standard Export Seaworthy Package | |
