Industrial Waste Tire Shredder Double Shaft Rubber Recycling Shredder
Industrial Waste Tire Treatment Double Shaft Rubber Recycling Shredder Machine
Product description:
Rubber Recycling Shredder Machine is a kind of advanced equipment for recycling waste tires. It adopts double-shaft shredding structure, which can completely shred waste tires into small particles in the shortest time.
The machine is equipped with high-speed mixing and stirring device, which can mix and stir the shredded tire particles evenly and continuously. This equipment is suitable for the treatment of waste tires from various sources, such as vehicle tires, industrial tires, etc. It can not only completely shred the waste tires, but also mix and stir the shredded tire particles evenly and continuously.
Therefore, it is an effective equipment for waste tire treatment and recycling.
| Parameters | Model OPS-500SD |
| Motor | 7.5KW*2 |
| Gearbox | JL4#-15*2 |
| Input rotation | 15rpm |
| Input torque | 9148Nm |
| Shaft | Φ70 |
| Blade | Φ200*20,9CrSi |
| Blade nos | 24pcs |
| Inlet size | 700*550*350mm |
| Outlet width | 580mm |
| Outlet height to floor | 200mm |
| Overall size | 1840*650*1450mm |
| G.W | ≈1000kg |
| Capacity: | 150-200KG |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
Working Principles:
This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.

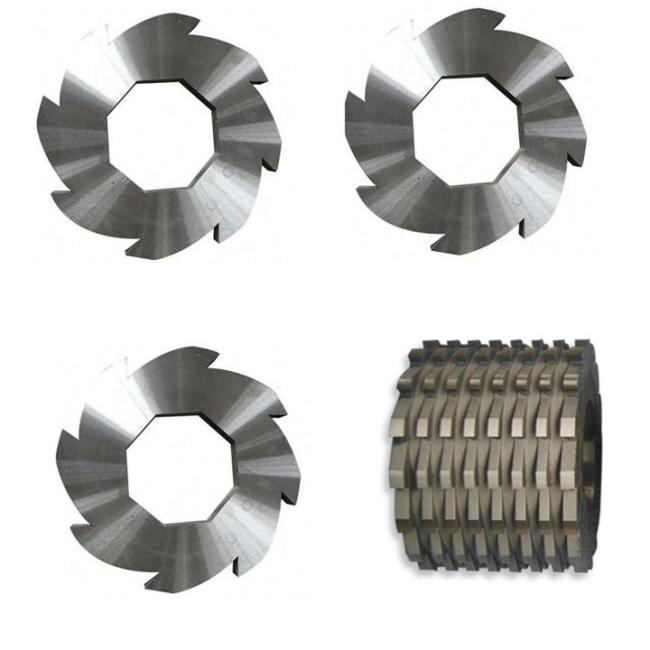

2.Double shaft cutting system:Using different blades according customers' material.
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.
Quality & Certificates
FAQ
1.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company
2.What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
3.Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
4.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
5.After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.
