Electronic Waste Shredder Machine Industrial Low Noise Plastic Bottle Shredding Machine
Electronic Waste Plastic Film Gas Pipeline Beverage Bottle Shredder Machine
Product description:
1. Crushing cavity design: The crushing cavity of the crusher is the main working area of the crusher, and its structural design has an important impact on the performance and efficiency of the crusher. Generally speaking, the shape and size of the crushing cavity need to be reasonably designed based on the physical properties of the materials to be crushed, the power and efficiency requirements of the crusher, and other factors.
2. Rotor structure: The rotor is a key component in the crusher to achieve the crushing effect. Its structural design and manufacturing accuracy have a vital impact on the crushing effect. The rotor usually consists of a main shaft, a wheel hub, a hammer head, etc. Its structural design needs to meet the requirements of high strength, high wear resistance and long life.
3. Transmission system: The transmission system of the crusher is responsible for transmitting the power of the motor to the rotor, allowing it to achieve rotational motion. The structural design of the transmission system needs to take into account power transmission, torque, speed and other factors to ensure that the rotor can achieve stable and efficient rotation.
4. Lining plate and impact plate: Lining plate and impact plate are auxiliary components in the crusher used to protect the body and guide the flow of materials. The lining plate is generally installed inside the crushing cavity to prevent the material from abrading the machine body; the impact plate is usually installed at the entrance of the crushing cavity to adjust the flow direction of the material so that it can better enter the crushing cavity.
5. Body structure: The body is the support and fixed component of the crusher. Its structural design needs to take into account the requirements of strength, stiffness and stability. At the same time, the machine structure also needs to take into account the convenience of installation and maintenance to facilitate users' daily operations and maintenance.
| Parameters | Model OPS-500 |
| Motor | 7.5KW |
| Gearbox | JL4#-15 |
| Input rotation | 15rpm |
| Input torque | 4574Nm |
| Shaft | Φ70 |

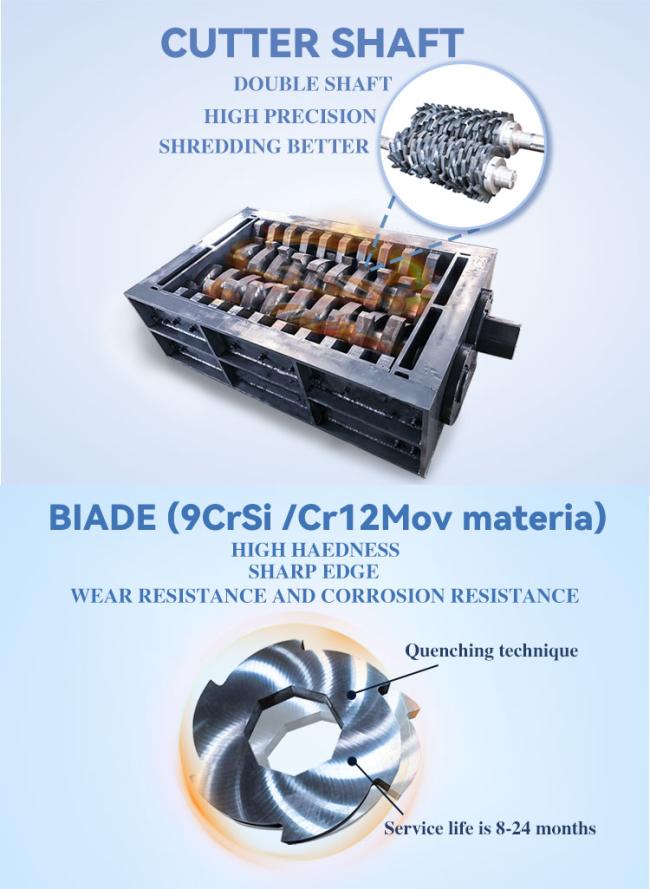

| Blade | Φ200*20,9CrSi |
| Blade nos | 24pcs |
| Inlet size | 700*700*350mm |
| Outlet width | 490mm |
| Outlet height to floor | 200mm |
| Overall size | 1350*700*1600 |
| G.W | ≈750kg |
| Capacity: | 130-160kg |
| Applications | Light metals, plastics, kitchen wastes, wood, paper, etc. |
