Industrial Tungsten Carbide Shredder Machine Blades Circular Slitting Knifes 8mm Thickness

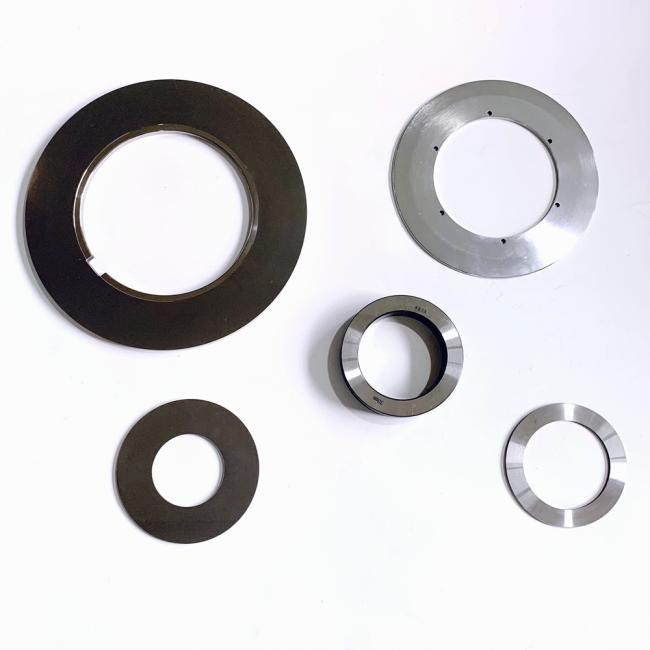

Industrial Tungsten Carbide Circular Slitting Knifes Round Slitting Blade
Products descriptions:

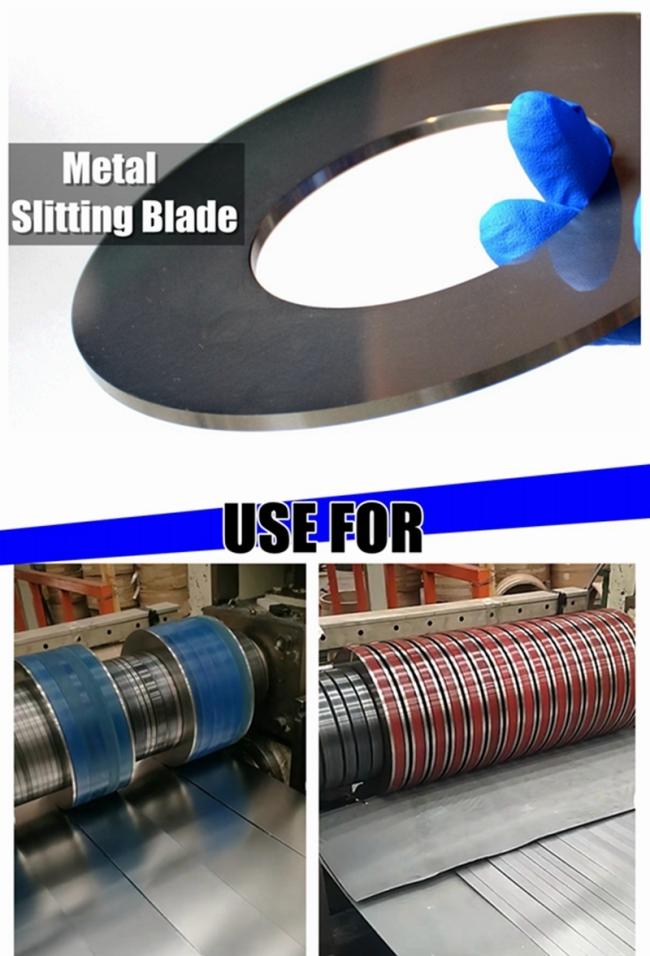

The Circular Steel Slitting knives is mainly used for paper slitting,metal slitting production processing line. Rotary shear blade can be used to shear various steels. and different blade material can be choosen according to customers' requirements.
♦The blae is typical of high intensity, high hardness, high wear resistance,high precision.
♦ The precision of the blade can be up to 0.002-0.004.
♦The machine can be used in professional Grinding & Heat Treating Processing
♦ Excellent cutting quality,stable and reliable cutting performance and long performance life.
| GeneralSize | |||
| D95*中55*2 | D105*中32*3 | D105*φ52*5 | D120*φ60*5 |
| D160*φ80*5 | D200*φ100*5 | D210*φ100*5 | D220*φ120*5 |
| D220*中100*10 | D240*中120*10 | D260*φ140*10 | D280*φ160*10 |
| D300*φ180*10 | D320*中200*10 | D330*φ200*10 | D360*φ220*10 |
| D380*中240*10 | D400*中260*10 | D440*中280*30 | D500*φ300*40 |
| D550*φ380*40 | D650*φ420*50 | D800*φ500*60 | D1200*φ600*70 |
The full name of the disc shear is the disc shear. When shearing, the disc shear blade makes continuous circular motion equal to the movement speed of the rolling piece (strip), forming a pair of endless shears.
Disc shears are usually set on the shear line of plates or strips and are used to longitudinally cut both sides of the moving plate or strip so that the edges of the cut strips are neat, precise and burr-free. The blade angle of disc shears is 90 degrees, and the material is generally made of 5CrW2Si or 6CrW2Si. After treatment, the hardness can reach Shore 80---90.
