FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow
FT3000 off grid inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC Power Off Grid Inverter Max 12PCS In Parallel

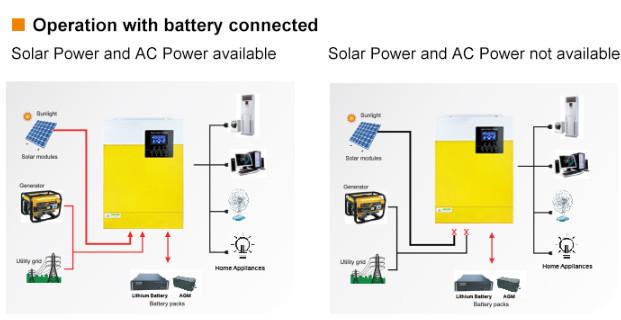

This is a multi-functional inverter/charger,combining functionsof inverter,solar charger and battery charger to offer uninterruptiblepower support in portable size. Its comprehensive LCD displayoffers user-configurable and easy-accessible button operationsuch as battery charging current, AC/solar charger priority,andacceptable input voltage based on different applications.
Features:
1. Supporting 24V Lithium Battery
2. Pure sine wave solar inverter
3. Output power factor 1
4. High PV input voltage range
5. Battery equalization function to optimize battery performance and
6. extend lifecycle Inverter running without battery
7. Built-in MPPT solar controller
8. WiFi/GPRS remote monitoring RS485 communication for BMS(Optional)
9. Detachable LCD(Optional)
Application Area:

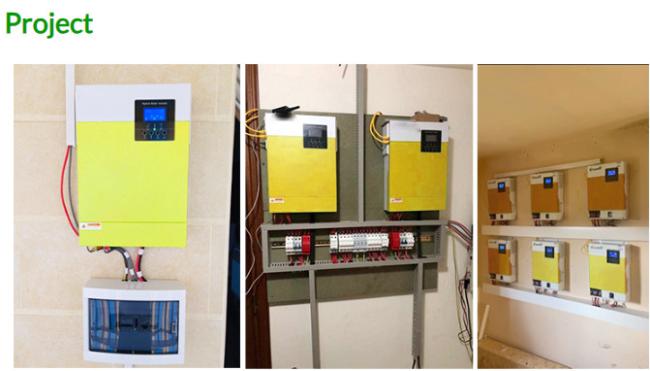

Office and public facilities, household system, networktransmission equipment, manufacturing, control system,solar energy system, oil field, drilling field operation, etc. Provide stable, reliable and safe solutions for families, islands.ships and other small photovoltaic power systems
| Technical Data | |
| MODEL | FT3000 |
| CAPACITY | 3KVA/3KW |
| Parallel Capability | YES, 12 units |
| Split phase operation | YES,need at least 2 units parallel |
| INPUT | |
| Nominal Voltage | 110/120VAC |
| Acceptable Voltage Range | 95-140VAC(For personal Computer);65-140VAC(For Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 110/120VAC±5% |
| Surge Power | 6000VA |
| Frequency | 50/60HZ |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency (PV to lNV) | 97% |
| Peak Efficiency (Battery to INV) | 93% |
| Overload Protection | 5s@>=150% load; 10s@110%-150% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6*1 (inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC/CV |
| Solar Charger& AC Charger | |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5000W |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 120VDC-450VDC |
| Max. Solar Input Current | 18A |
| Max. Solar Charge Current | 80A |
| Max. AC Charge Current | 60A |
| Max. Charge Current | 80A |
| PHYSICAL | |
| Dimensions D x W x H(mm) | 435x295x105 |
| Package Dimensions D x W x H(mm) | 560x380x190 |
| Net Weight (Kg) | 10 |
| Communication Interface | Rs485/RS232/Dry-contact |
| ENVIRONMENT | |
| Operating Temperature Range | -10°C to 50°C |
| Storage temperature | -15°C~60°C |
