92% Alumina Ceramic Grinding Balls With High Wear Resistance
92% Alumina Ceramic Ball
Description
Our alumina ceramic ball is made of α alumina (α-aluminium oxide, the most thermodynamically stable form) by cool isostatic pressing or rolling, then fired at a very high temperature in the tunnel kiln. Alumina grinding ball/beads is suitable for both wet and dry superfine grinding of alumina, zirconia silicate, feldspar, quartz, kaolin clay, glaze, inks and ceramics in Stirred and ball mill.
Feature
Inert packing ball
Excellent impact resistance, Excellent Temperature resistance, Excellent acid-alkali corrosion resistance, Excellent thermal shock resistance;
Grinding ball
High wear-resistance, Lower wear lost, High density, Higher grinding efficiency;
Key Benefits
· High grinding efficiency for superfine grinding
· Fine chemical stability & contamination-free to the grinded material
· Extremely low wear rate
· Excellent combination of toughness and hardness
· Technical support provided to optimize milling
Technical specification
|
Item |
Inert Packing ball |
Grinding ball |
||
|
Wet grinding |
Dry grinding |
|||
|
Al2O3 (%) |
>92 |
>92 |
>92 |
>92 |
|
Density (g/cm3) |
≥3.20 |
≥3.65 |
≥3.68 |
≥3.60 |
|
Hardness (Mohs) |
/ |
9 |
9 |
9 |
|
Packing Density |
1.80 |
/ |
/ |
/ |
|
Water Absorption (%) |
≤5 |
≤0.01 |
≤0.01 |
≤0.01 |
|
Wear Loss (%) |
/ |
≤0.01 |
≤0.008 |
≤0.015 |
|
Unit Compressive Strength (13mm/N) |
≥5000 |
/ |
/ |
/ |
|
Color |
White |
White |
White |
White |
Package
Bag with pallets, 25kg/bag or as customized.
1. Pallet size:1.0m x 1.0m x 0.1m
2. 1000-1300kg/pallet
3. Quantity: 20 pallets for 1 x 20'FCL
4. Max. weight:25-27tons for 1 x 20'FCL

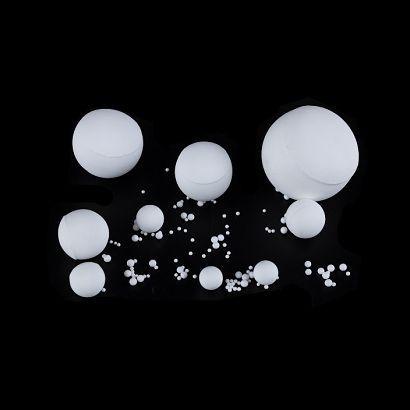

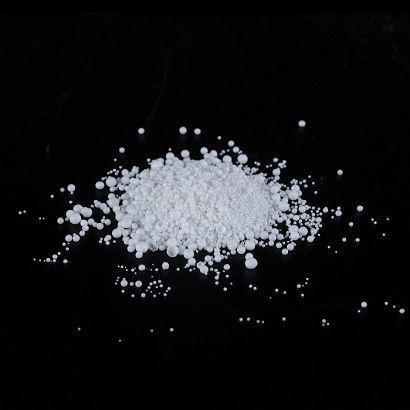

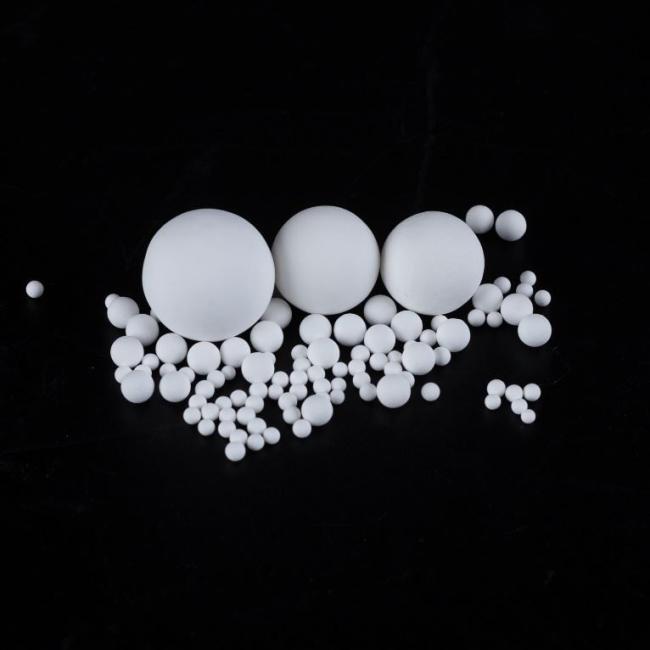

Photos show
|
|
|

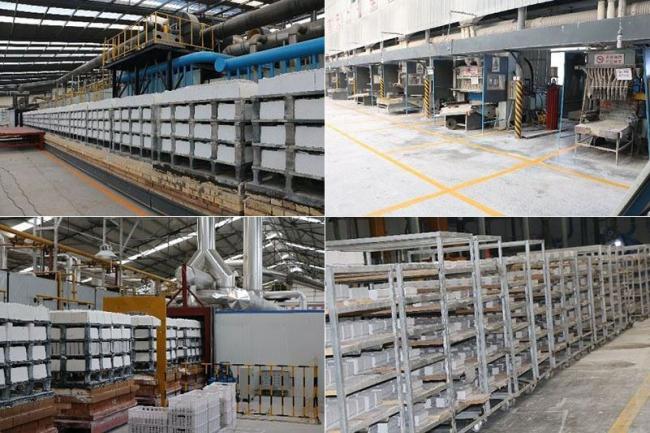

Factory Show
