Vector Control Inverter 2.2kw 220v Low Voltage Motor Drive 0-600Hz

Basic product introduction:

Senseless flux vector control (VC) or V/F (Voltage/Frequency) Control.

Overload capacity is 60s for 150% of the rated current and 3s for 180% of the rated current.

There are ten auxiliary frequency sources.

It can implement fine tuning of auxiliary frequencyand frequency synthesis.

Support PM motor (Z2000 T series).

Technical Specification:

Product specification:

1,Control mode:Senseless flux vector control(SFVC) Voltage/Frequency (V/F) control
2,Maximum frequency:Vector control: 0-6000Hz V/F control: 0-3200Hz
3,Carrier frequency:1-16kHzThe carrier frequency is automatically adjusted based on the load features
4,Input frequency solution:Digital setting: 0.01Hz       Analog setting: maximum frequency x 0.025%
5,Startup torque:Gtype: 0.5Hz/150%(SFVC) P type: 0.5Hz/100%
6,Speed range:1:100

7,Speed stability accuracy:±0.5%
8,Overload capacity:G type: 60s for 150% of the rated current, 3s for 180% of the rated current；P type: 60s for 120% of the rated current, 3s for 150% of the rated current
9,Torque boost:Auto boost；Customized boost 0.1~30.0%
10,V/F curve:Line V/F curve；Multi-point V/F curve；N-power V/F curve
11,V/F separation:Two types:complete separation；half separation
12,Ramp mode:Straight-line ramp；S-curve ramp；4 groups of acceleration/deceleration time with the range of 0.0-6500.0s


Product wiring diagram:

Product applications:

Z2000 series AC frequency inverter is widely used in fans, pumps, compressors, lathes, spindle motors, textile machines, food machines, crushers, packaging machines, printing machines, washing machines, conveyor belts, grinding machines, polishing machines and other equipment, and well received by customers.

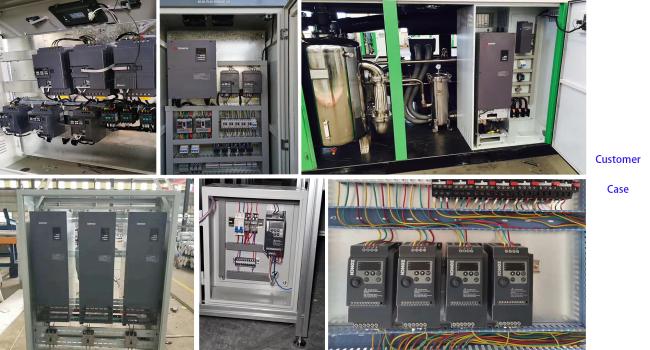

Product case:

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
