600Hz Low Voltage 220V Inverter Ac Vfd Drives 1500w For Motor Speed
ZONCN T200 Series Low Voltage Variable Frequency Drives Ac Inverter 1500w for motor speed
T200 series 1.5kw inversor AC drives VFD
Basic product introduction:

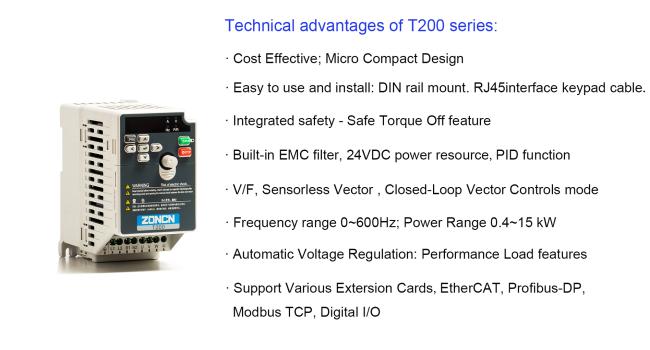

ZONCN T200 series variable frequency drives offer several key advantages. They are cost-effective, making them an affordable choice for various applications. With their compact design, they are suitable for installations with limited space. The drives feature a user-friendly keyboard with an RJ45 interface, allowing for convenient operation and parameter adjustments. Additionally, the T200 series is equipped with an integrated EMC filter, effectively reducing electromagnetic interference. The drives also come with automatic voltage regulation, ensuring stable performance under different load conditions. Furthermore, they offer various protection functions, including overload, overcurrent, overvoltage, undervoltage, overheat, short circuit, and phase loss protection. Lastly, the T200 series supports PG cards, enabling precise speed and position control. Overall, the ZONCN T200 series variable frequency drives provide an economical, compact, and easy-to-install solution with a range of protective features and support for PG cards.
Technical characteristic:
T200 model specifications:
| Model | Input voltage | Rated output power(kw) | Rated input current(A) | Rated output current(A) | Motor power(kw) |
| T200-0R4G-2 | AC 1PH 220V± 15% | 0.4 | 5.4 | 2.5 | 0.4 |
| T200-0R75G-2 | 0.75 | 7.2 | 5.0 | 0.75 | |
| T200-1R5G-2 | 1.5 | 10.0 | 7.0 | 1.5 | |
| T200-2R2G-2 | 2.2 | 16.0 | 11.0 | 2.2 | |
| T200-0R4G-4 |
AC 3PH 380V±15% |
0.4 | 3.4 | 1.2 | 0.4 |
| T200-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 | |
| T200-1R5G-4 | 1.5 | 5.0 | 3.7 | 1.5 | |
| T200-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| T200-3R0G-4 | 3.0 | 8.5 | 7.0 | 3.0 | |
| T200-3R7G/5R5P-4 | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 | |
| T200-5R5G/7R5P-4 | 5.5/7.5 | 15.0/20.0 | 13.0/17.0 | 5.5/7.5 | |
| T200-7R5G/11P-4 | 7.5/11 | 20.0/26.0 | 17.0/25.0 | 7.5/11 | |
| T200-11G/15P-4 | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 | |
| T200-15G/18.5P-4 | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
Description of the T200 :
Maximum frequency:Vector control:0～600Hz V/F control:0-3200Hz
FAQ:
Q1: What is the minimum order quantity (MOQ) required?
A: The MOQ is set at 1 piece.
Q2: What are your payment terms?
A: We require 100% payment via T/T before delivery.
Q3: How long does it take for delivery?
A: Typically, the delivery time is within 15 days after receiving full payment.
Q4: How can I place an OEM/ODM order?
A: If your order quantity meets certain criteria, we are pleased to offer customization services. We have established partnerships with over forty manufacturers.
