ZONCN Z2000 Low Voltage Vfd Optional Inclusion Built In EMC Filter
ZONCN Z2000 Series Low Voltage 220v 380v Vfd Inverters Variador De Frecuencia
ZONCN Z2000 Frequency Inverter AC Drives Vfd
Basic product introduction:
· Senseless flux vector control(VC)V/F(Voltage/Frequency)control
· The overload capacity allows for 60 seconds at 150% of the rated current and 3 seconds at 180% of the rated current.
· Ten auxiliary frequency sources are available.
· It enables precise adjustment of the auxiliary frequency and frequency synthesis.
· Supports PM motor (Z2000T series)
· Optional inclusion of built-in EMC filter;
· Power range: 110V/220V/380V/415V/440V/480V, ranging from 0.4kW to 450kW.
Technical Specification:
Product configuration Z2000:
| Close loop vector control | No |
| Built-in braking unit | Yes,below 37kw (include 37kw). Optional for more than 45KW |
| VF+Vector control | Yes |
| High speed pulse output | Yes |
| Movable digital keypad | Yes |
| AI | 2 |
| AO | 1 |
| DI | 6 |
| DO | Standard 1,optional 2 |
| Relay output | Standard 1,over 30kw optional 2 |
| DC braking | Yes |
| Collector | 1 |
| 24V power supply | Below 30kw optional,30kw and above support |
| EMC filter | Optional |
| 0.1S acceleration/deceleration | Yes |
| Simple PLC | Yes |
| All kinds of protection | Support |
| PID | Yes |
| DC choke | 30kw—220kw optional,250kw and above all have |
| DC bus +,- terminals | Yes |
| STO function | No |
| Communication | RS485 |
| Certificate | KC+CE |
| Warranty | 18 months |
Product wiring diagram:

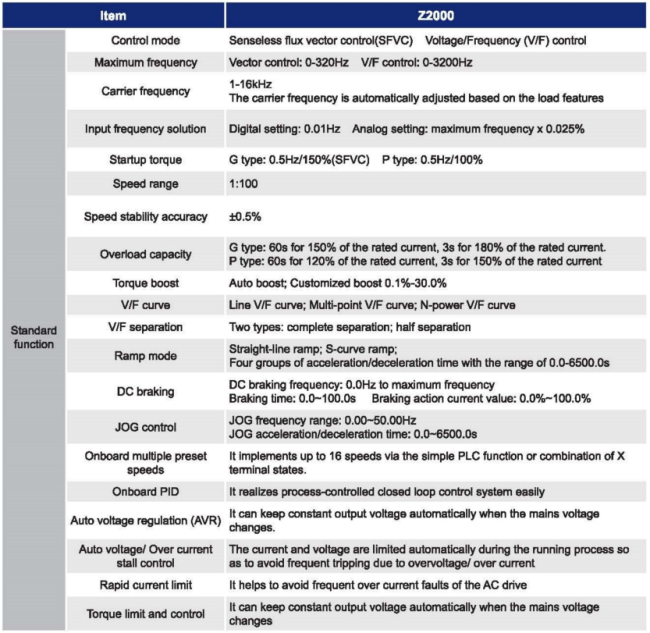

Product specification:

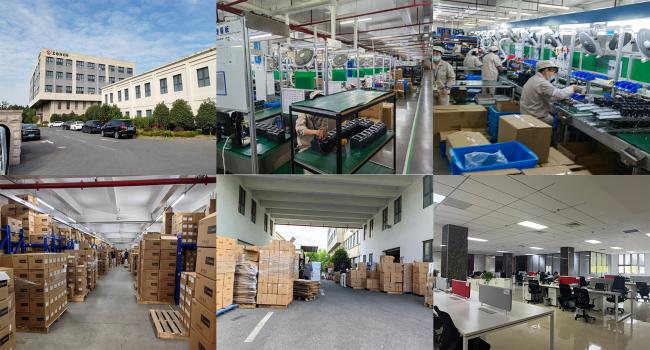

About our company:
- The company was founded in 2006.
- Headquartered in Shanghai, China, there are branches in Maanshan, Anhui and Wuhu, Anhui, among which Wuhu Company is responsible for international trade business. A total of four large plants are expected to come on stream by mid-2024.
- The registered capital is $20 million.
- There are about 1000 employees.
- The annual output of inverter is more than 900,000 units.
- All products through the EU CE certification.
- In addition to the development of inverter, the company also focuses on the development of HMI, PLC, servo system, medium voltage inverter, high voltage inverter, a variety of special industries of professional inverter, the company has a strong strength in the field of inverter in China.
- The company was listed on the main board of the Shanghai Stock Exchange in 2023. Stock code 603275.
FAQ:
Q1:What is your MOQ?
A: 1 pc
Q2:What's your terms of payment?
A:T/T 100% before delivery.
Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.
Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
