220v 1ph To 380v 3ph 11kw 15hp Variable Frequency Inverters AC Drives
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
7-30 days
Brand:
ZONCN
Product Description
ZONCN Z2000 Series Boost Frequency Inverter
Product Features
Inverter type: Boost inverter
- Control mode: V/F control + Vector control
Input: 220v single phase; output: 380v three phase;
Power range: 0.4kw to 15kw
Communication: RS485
- PID control: Built-in
Frequency range: 0.1-600Hz
Lead time: within 15 days
Warranty: 18 months after delivery
Specification
| 220V 1PH input to 380V 3PH ouput | Model | Output Power(KW) | Capacity(KVA) | Rated Input Current(A) | Rated Output Current(A) |
| Z2000-0R4G-24 | 0.4 | 0.8 | 3.7 | 1.2 | |
| Z2000-0R75G-24 | 0.75 | 1.6 | 7.8 | 2.5 | |
| Z2000-1R5G-24 | 1.5 | 2.5 | 11.8 | 3.8 | |
| Z2000-2R2G-24 | 2.2 | 3.4 | 15.9 | 5.1 | |
| Z2000-3R0G-24 | 3 | 4.7 | 22.4 | 7.2 | |
| Z2000-3R7G-24 | 3.7 | 5.9 | 28 | 9 | |
| Z2000-5R5G-24 | 5.5 | 8.6 | 40.5 | 13 | |
| Z2000-7R5G-24 | 7.5 | 11.2 | 53 | 17 | |
| Z2000-11G-24 | 11 | 16.5 | 77.9 | 25 |

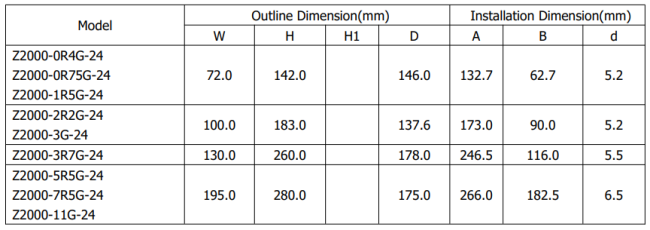

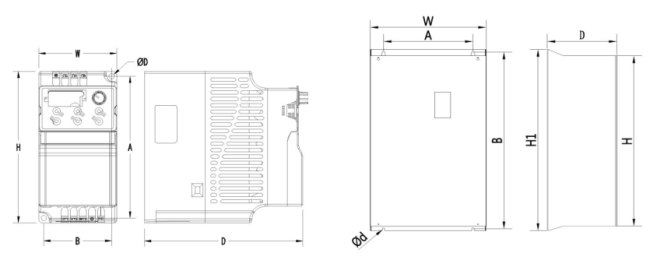

Dimension
Company Introduction
ZONCN, Top 5 inverter manufacturer in China, which was established in 2006 with 19 years of experience. ZONCN is focus on producing inverter and servo, which we have researched and developed different series, for example, NZ100, NZ200, Z2000, Z5000, T8000, T9000, SP500, SP600, DP500 etc., they are widely used in different applications, eg: fan, pump, conveyor, packaging, CNC, textile machine, extrude machine, water treatment and especially in air compressor field which we did Top 1 among brands.
Sincerely hope we can help you with our experience and professional technology for this inverter products.
