220v Single Phase To 380v 3ph 1.5kw 2.2 Kw 3.7kw AC Inverter Motor Drive 2hp 3hp 5hp FOR PUMP
Price:
Negotiable
MOQ:
1 PC
Delivery Time:
7-30 days
Brand:
ZONCN
Product Description
ZONCN Z2000 Series Boost Frequency Inverter
Product Features
-
Inverter type: Boost inverter
- Control mode: open loop vector control
-
Input: single phase 220v; output: three phase 380v;
-
Power range: 0.4kw/0.75kw/1.5kw/2.2kw/3.7kw/5.5kw/7.5kw/11kw/15kw
- PID control: Built-in

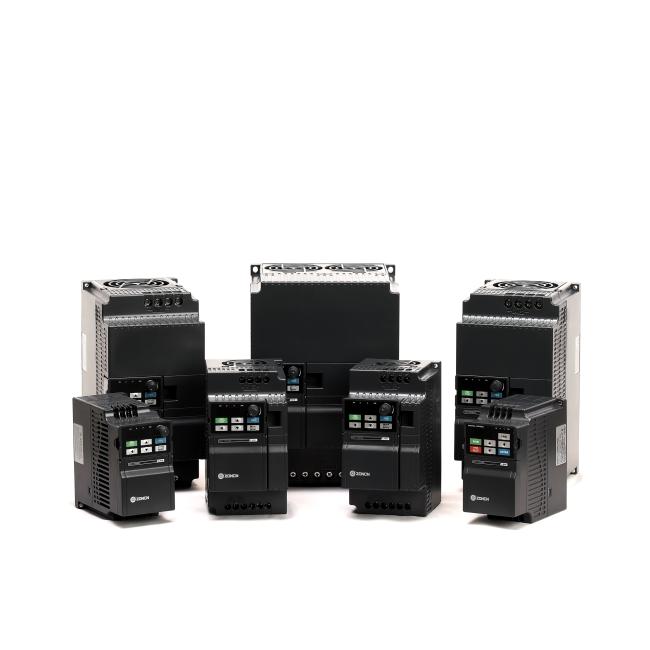

Product pictures
Specification
| 220V 1PH input to 380V 3PH ouput | Model | Output Power(KW) | Capacity(KVA) | Rated Input Current(A) | Rated Output Current(A) |
| Z2000-0R4G-24 | 0.4 | 0.8 | 3.7 | 1.2 | |
| Z2000-0R75G-24 | 0.75 | 1.6 | 7.8 | 2.5 | |
| Z2000-1R5G-24 | 1.5 | 2.5 | 11.8 | 3.8 | |
| Z2000-2R2G-24 | 2.2 | 3.4 | 15.9 | 5.1 | |
| Z2000-3R0G-24 | 3 | 4.7 | 22.4 | 7.2 | |
| Z2000-3R7G-24 | 3.7 | 5.9 | 28 | 9 | |
| Z2000-5R5G-24 | 5.5 | 8.6 | 40.5 | 13 | |
| Z2000-7R5G-24 | 7.5 | 11.2 | 53 | 17 | |
| Z2000-11G-24 | 11 | 16.5 | 77.9 | 25 |
Dimension

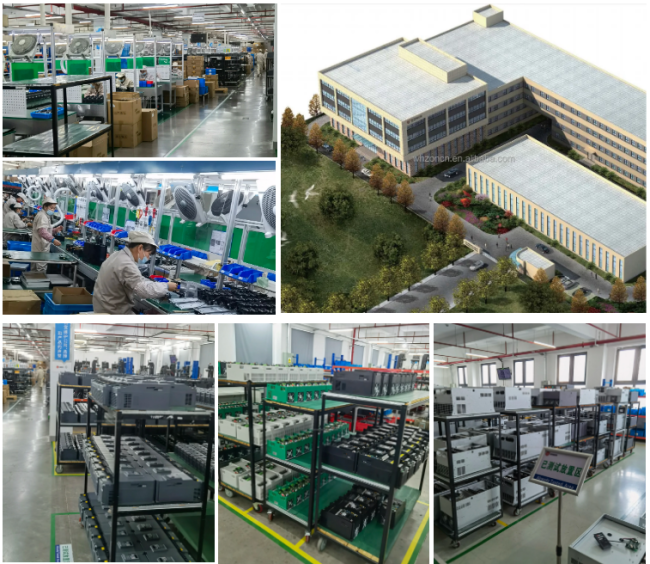

Company Introduction
ZONCN, Top 5 inverter manufacturer in China, which was established in 2006. ZONCN is focus on producing inverter and servo, we have nearly 630 staff, technical person takes about 20%, our annual sales quantity exceeds 1 million sets. we keep researching and developing different series, for example, NZ100, NZ200, Z2000, Z5000, T8000, T9000, SP500, SP600, DP500 etc., they are widely used in different applications, for example: fan and pump, printing and packaging, CNC, conveyor, textile machine, extrude machine, water treatment.
What's more, ZONCN is the most famous brand which used in air compressor in China. ZONCN will always dedicate in the field of VFD and warmly welcome you to be our partner.
